AMA DTV DP 20 G.E. DIESEL TANK 2000L
      AMA DTV DP 20 G.E. DIESEL TANK 2000L
      AMA DTV DP 20 G.E. DIESEL TANK 2000L

      AMA DTV DP 20 G.E. DIESEL TANK 2000L

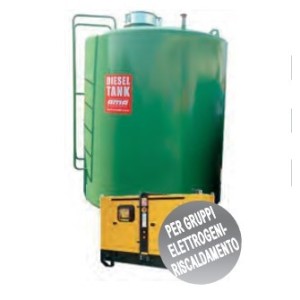

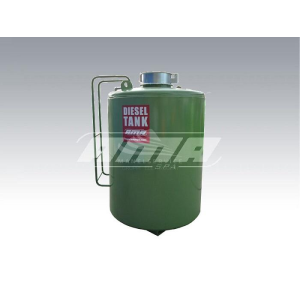

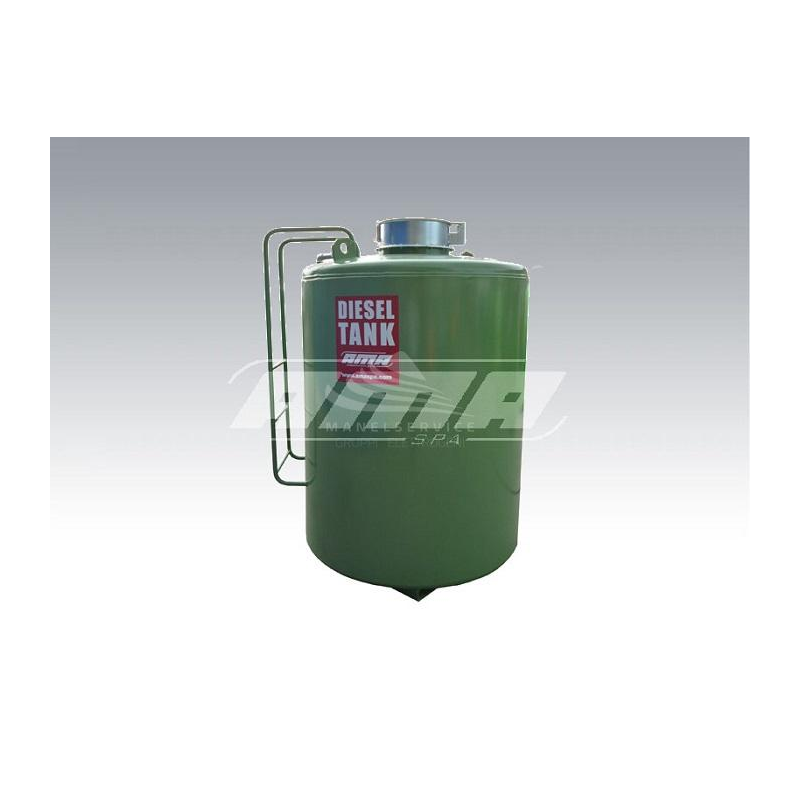

      Diesel tank
      Ready for connection to generating sets and heating systems
      Double wall
      Axis: vertical
      Material: carbon steel EN 10025
      Manhole protection thermowell: diam. Ø 420 mm
      Venting device: 1" ½
      Fuel tank capacity: 2000 Lt
      Inside diameter: 1270 mm
      Outer diameter: 1300 mm
      Height: 1880 mm
      Weight: 425 Kg.

      Custom Quote
      Product: AMA DTV DP 20 G.E. DIESEL TANK 2000L

      PERSONAL DATA


      Ask a question
      Product: AMA DTV DP 20 G.E. DIESEL TANK 2000L
      Offer on letterhead
      Product: AMA DTV DP 20 G.E. DIESEL TANK 2000L
      AMA
      61000120

      Data sheet

      Fluid type
      Diesel
      Main body material
      Carbon steel EN 10025
      Internal diameter (mm)
      1270
      Outer diameter (mm)
      1300
      Fuel tank capacity (L)
      2000
      Height (mm)
      1880
      Dry weight (Kg)
      425

      Specific References

      New

      AMA DTV DP 20 G.E. DIESEL TANK 2000L
      CONTAINER - DIESEL TANK DISTRIBUTOR APPROVED M.I.

      Double walled tank, vertical axis, made of carbon steel
      EN 10025. The external protective tank has a containment capacity equal to 100% of the inner tank. The structure is supported by support skirt and bottom bars that allow movement with a forklift truck on empty.
      THE DTV - DP is equipped with
      - Manhole protection thermowell (size Ø 420 mm), complete with hinged and padlockable lid, with manhole on the inside flanged Ø 450 mm., equipped with :
      - Quick grip loading connection with ring nut, UNI 3" in aluminium homologous. M.I;
      - 90 % internal load relief valve, M.I. approved;
      - Float level indicator with indicator dial ;
      - Vacuum lifting eyebolt welded to the upper bottom;
      - Venting device 1" ½" with flame breaker end cap in brass;
      - AISI steel earthing connection;
      - Suction connection 2", positioned at a height from the bottom of
      Approximately 10 cm to safeguard the quality of the product avoiding the suction of sediment or water deposited on the bottom of the tank.
      - Drainage 1", with closing cap ;positioned on tank bottom;
      - External access ladder to the manhole;
      - Visual leakage control system on cavity through visual warning light;
      - Painting with bi-component bottom and dried water-based paint oven-baked after sheet metal washing treatment.
