FENZI G4 Digital Tank 3000LT

The FENZI G4 Digital Tank 3000LT is a state-of-the-art tank designed for the storage and
dispensing of diesel fuel, approved by the Ministry of the Interior according to
Ministerial Decree dated 22/11/2017. The FENZI G4 3000 LT offers a safe and
versatile solution, suitable for both small vehicle fleets and private use.

Key Features of the FENZI G4 Digital Tank 3000LT:

Capacity and Construction:

The FENZI G4 digital tank with a capacity of 3000 liters is perfect for those seeking a compact and
efficient solution. Painted in standard green color, it offers weather resistance and
a pleasing appearance.

Included Components:

The FENZI G4 digital tank of 3000 liters comes with a series of accessories ensuring safe and
efficient operation:

110% containment basin to prevent fuel leaks.
Dispenser available in cube or column version, depending on requirements.
4-meter rubber hose with automatic nozzle.

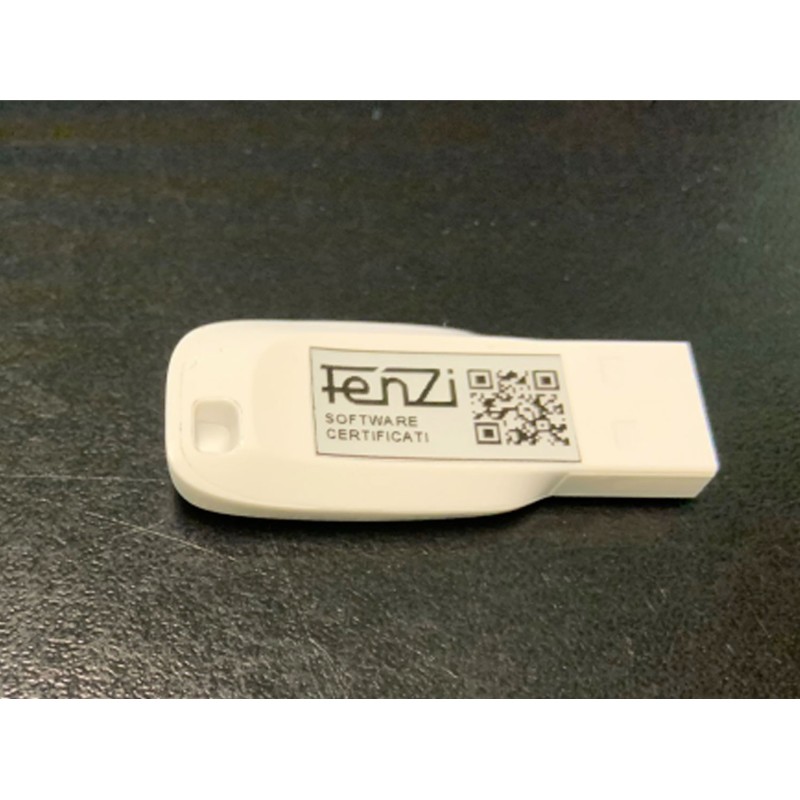

Control software to monitor fuel usage.
Cartridge filter to ensure fuel purity.
Various fittings and comprehensive documentation for easy installation.

Technology and Safety:

The FENZI G4 Digital 3000LT incorporates several advanced technical features to ensure safe and
reliable operation:

3” quick connect bronze filling cap, lockable for added security.
90% load limiting valve to prevent tank overload.
1”1/2 bronze vent mushroom with flame arrestor mesh for safe ventilation.
External level indicator visible with float for easy fuel monitoring.
420 mm manhole with bolts and gasket for easy internal access.
Vacuum lifting eyes for easier tank handling.
Bottom discharge sleeve with safety cap for periodic cleaning.
Grounding socket and equipotential bonding for electrical safety.
1” external suction connection with check valve.
1” ball valve for precise fuel flow control.
1” galvanized steel tube for connection to dispensing unit with flexible terminal.

Dispensers Available for FENZI G4 Digital 3000LT:

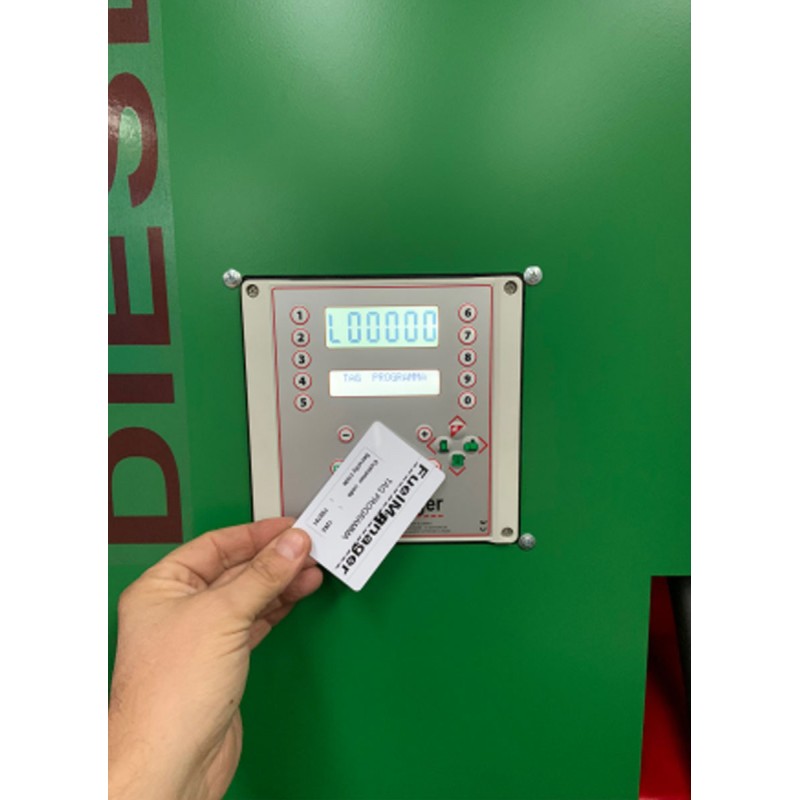

Cube: The Cube dispensing unit comes with user management and can be integrated with
control software installable on computers. Available flow rates are 50 or 70 liters/min at 220 Volts.

Columns: Columns are available in mechanical and digital versions, ideal for refueling small
facilities or private fleets. Available flow rates are 50, 70, and 90 liters/min,
with power supply at 220/380 Volts.

Additional Accessories:

To further enhance the performance of the FENZI G4 Digital 3000LT, various accessories are available:

Sunshade for protection against sunlight.
Side cover for the dispenser.
Kit of interchangeable cartridge filters for easier maintenance.
Extension kit for all pump groups.

Dimensions of FENZI G4 Digital 3000LT:

Capacity: 3000 liters
Width: 1200 mm
Length: 2000 mm
Height: 2100 mm

In summary, the FENZI G4 Digital Tank 3000LT is an innovative tank that provides a safe, comprehensive,
and versatile solution for diesel storage and dispensing. With its advanced technology and
wide range of accessories, the FENZI G4 Digital 3000LT is an ideal choice for multiple applications,
always ensuring maximum efficiency and safety.

If you are looking for a product like FENZI G4 Digital Tank 3000LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
