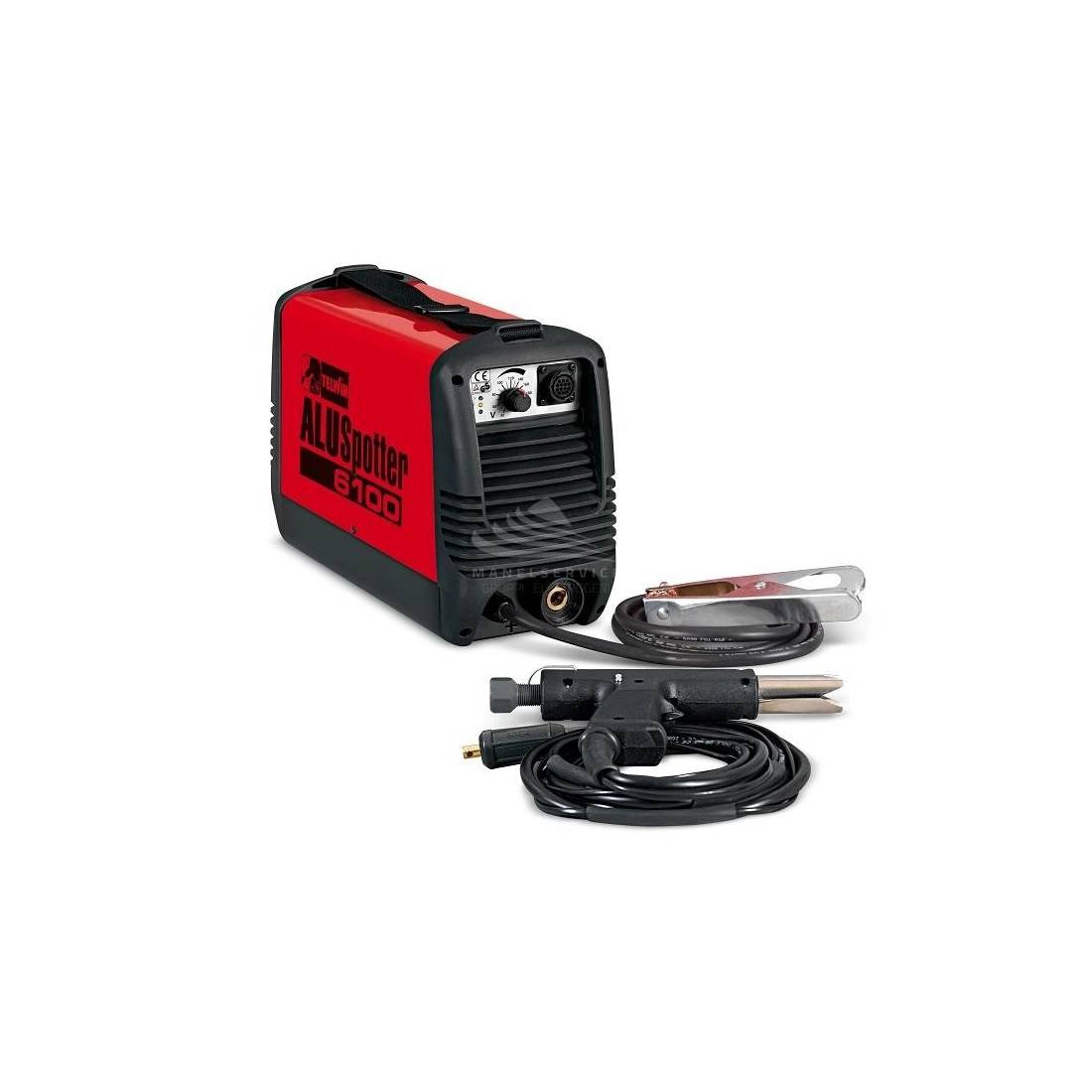

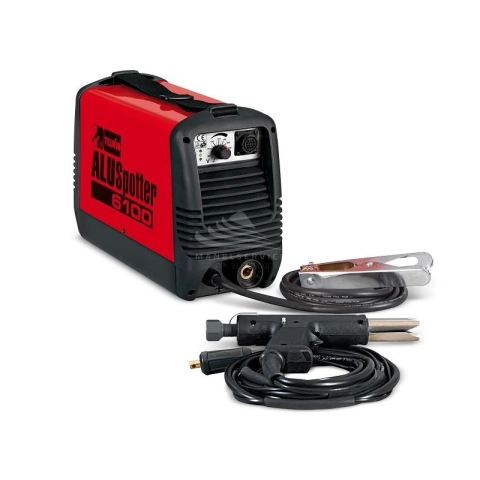

TELWIN ALUSPOTTER 6100 115-230V
823049
New product
Phase: Single phase
Frequency: 50/60 Hz
Voltage: 115 / 230 V
Capacity: 66000 µF
Spot time: 1 - 3 ms
Number spottable studs: 20 studs/min
Spottable stud diameter: 3 - 8 mm
Length: 430 mm
Width: 170 mm
Height: 290 mm
Weight: 15.5 Kg
Technical features
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 115 / 230
- Protection degree
- IP23
- No-load voltage (V)
- 12
- Capacity (µF)
- 66000
- Spot time (ms)
- 1 - 3
- Number spottable studs (studs/min)
- 20
- Ø spottable stud (mm)
- 3 - 8
- Length (mm)
- 430
- Width (mm)
- Height (mm)
- 290
- Weight (Kg)
- 15.5
Details
Power source for capacitor discharge welding of studs of 3 to 8 mm diameter and other accessories, with tip strike.
It is suitable for applications in heating systems, installation and maintenance works.
It enables welding of studs on non-treated or non oxidized surfaces in steel, stainless steel, galvanized steel, brass and, in particular, aluminium.
The welding process is so short that it causes no alteration to the opposing surface even if painted, plastic-coated or galvanized. 115-230V automatic voltage reversal.
Complete with gun, earth cable with clamp and accessories.
Not binding images and technical data.
Technical Sheet / Manuals
List price
tax incl.
tax excl.
Discounted Price
1.551,84 € tax incl.
1.272,00 € tax excl.
Technical features
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 115 / 230
- Protection degree
- IP23
- No-load voltage (V)
- 12
- Capacity (µF)
- 66000
- Spot time (ms)
- 1 - 3
- Number spottable studs (studs/min)
- 20
- Ø spottable stud (mm)
- 3 - 8
- Length (mm)
- 430
- Width (mm)
- Height (mm)
- 290
- Weight (Kg)
- 15.5
Details
Power source for capacitor discharge welding of studs of 3 to 8 mm diameter and other accessories, with tip strike.
It is suitable for applications in heating systems, installation and maintenance works.
It enables welding of studs on non-treated or non oxidized surfaces in steel, stainless steel, galvanized steel, brass and, in particular, aluminium.
The welding process is so short that it causes no alteration to the opposing surface even if painted, plastic-coated or galvanized. 115-230V automatic voltage reversal.
Complete with gun, earth cable with clamp and accessories.
Not binding images and technical data.
Technical Sheet / Manuals
