  • TELWIN ALUCAR 5100 230V
TELWIN
828069
New product

OUT OF PRODUCTION

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Capacity: 19500 µF
Spot time: 1 - 3 ms
Number spottable studs: 7 studs/min
Spottable stud diameter: 3 - 4 mm
Length: 450 mm
Width: 150 mm
Height: 270 mm
Weight: 11.7 Kg

Technical features
Phase
Single phase
Frequency (Hz)
50 / 60
Voltage (V)
230
Protection degree
IP22
No-load voltage (V)
12
Capacity (µF)
19500
Spot time (ms)
1 - 3
Number spottable studs (studs/min)
7
Ø spottable stud (mm)
3 - 4
Length (mm)
450
Width (mm)
150
Height (mm)
270
Weight (Kg)
11.7
Details

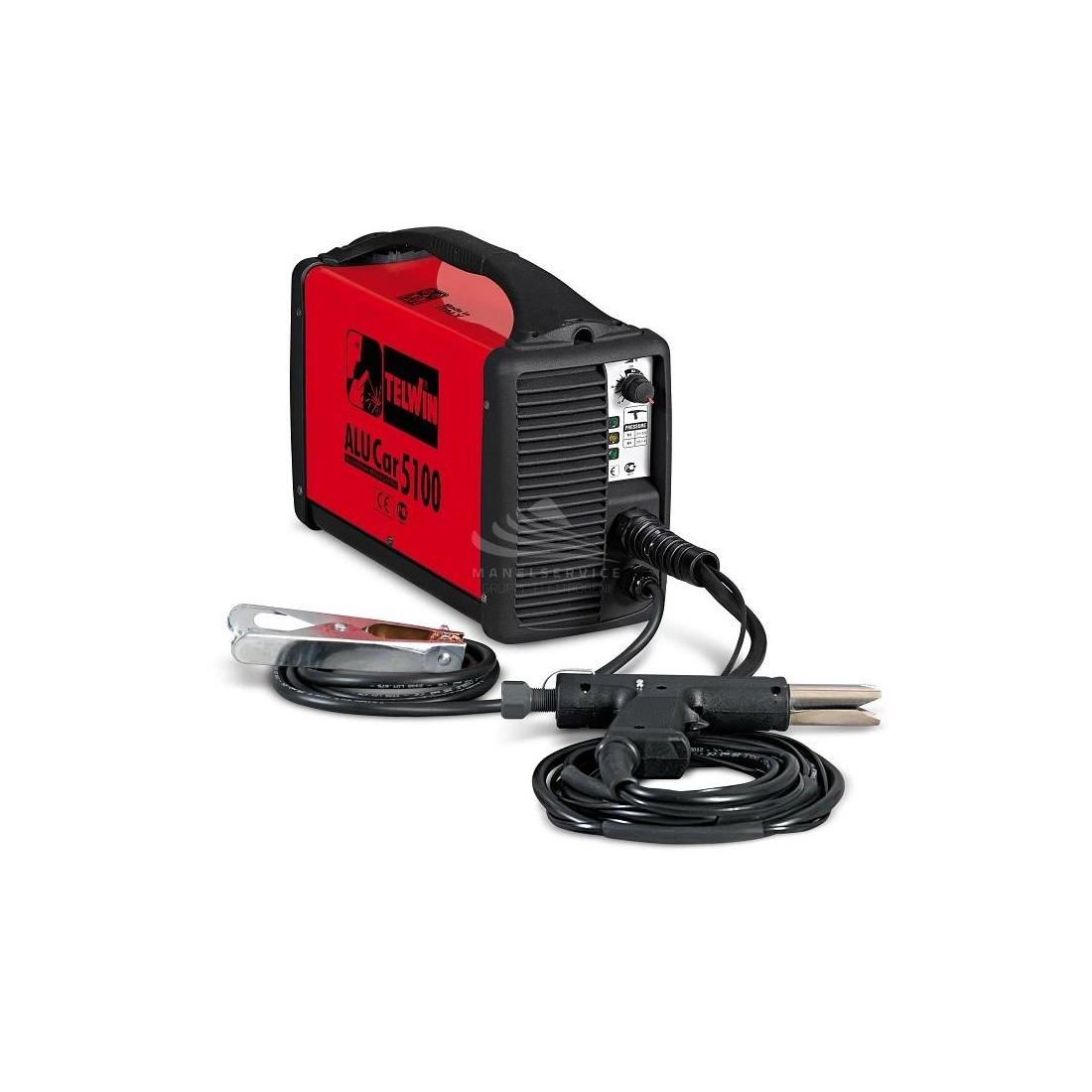

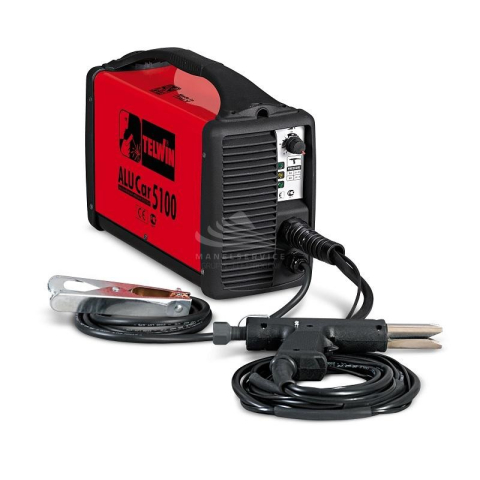

Power source for capacitor discharge welding of studs of 3 and 4 mm diameter and other accessories, with tip strike.
It is suitable for applications in car body shops.
It enables welding of studs on non-treated or non oxidized surfaces in steel, stainless steel, galvanized steel, brass and, in particular, aluminium.
The welding process is so short that it causes no alteration to the opposing surface even if painted, plastic-coated or galvanized.
Complete with gun, earth cable with clamp and accessories.

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica ALUCAR 5100

(88.75k)

Technical data ALUCAR 5100

(87.6k)

Ficha técnica ALUCAR 5100

(89.16k)

Fiche technique ALUCAR 5100

(89.34k)

Manual ALUCAR-ALUSPOTTER

(2.17M)
