      015022

      Hybrid storage system for NEW photovoltaic systems with LITHIUM battery
      MPPT charging through charge controllers with n.4 independent inputs
      Max PV Power 4kWp
      PEAK SHAVING function more power available from the electronic counter
      ANTI-BLACK OUT function on privileged users AC-OUT 1
      Optional external DATA-LOGGER
      Pure sine wave DC/AC inverter
      Rated power AC 3000VA
      Maximum Efficiency 95%
      Maximum charging current 60A
      Charge regulator efficiency PV 97.2%
      Contact for maximum self-consumption
      Battery disconnection switch
      Battery voltage 48Vdc
      LITHIUM batteries: TAWAKI, RESU - LG CHEM
      AC overload and short circuit protection
      IP20 Container
      Easy wiring and installation
      Complies with CEI 0-21

      Prezzo
      4,782.40 € tax incl.
      3,920.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      015022

      Data sheet

      Continuous power single phase (KW)
      2.4
      Frequency (Hz)
      50
      Voltage (V)
      230
      Protection degree
      IP20
      Length (mm)
      395
      Width (mm)
      940
      Height (mm)
      250
      Weight (Kg)
      18

      Specific References

      New

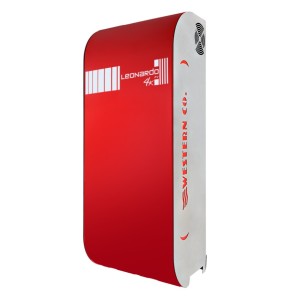

      Storage System Leonardo 4K 3000-48 Li


      Storage system Leonardo  4k3000-48 Li 3000W 48V, Lithium Ion Battery.
      The Leonardo 4K is a LITHIUM accumulation system, specifically designed for NEW PLANTS.
      In the event of a power failure, the Leonardo 4K 3000/48 Li guarantees the continuity of operation of the utilities without perceptible
      discontinuity, creating an isolated Off-Grid grid for the privileged users connected to AC-OUT 1.
      The Leonardo PRO 4k is used to increase the user's share of self-consumed energy, maximizing energy independence.
      The Leonardo 4K 3000/48 Li provides four independent MPPT maximum power point search inputs, which, depending on the battery charge status, always maximizes the energy extracted from the PV modules.
      The Leonardo PRO II 3000/48 Li is compatible with LG CHEM's TAWAKI BATTERY and RESU 3.3 - 6.5 - 10 lithium-ion battery and can be installed in accordance with CEI 0-21.

      Advantages of using the AC Leonardo 4K 3000-48 Li storage system

      - Maximum efficiency: 95%
      - Output power: 3000 VA
      - Easy wiring and installation
      - AC overload and short circuit protection with direct self-consumption + supply from the battery, the PV system feeds directly into the home and the peak consumption is cancelled by the power taken from the battery.
      Anti-blackout function.

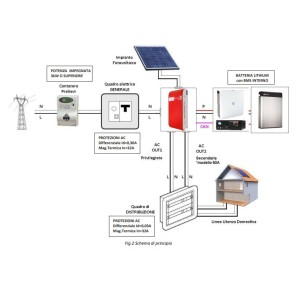

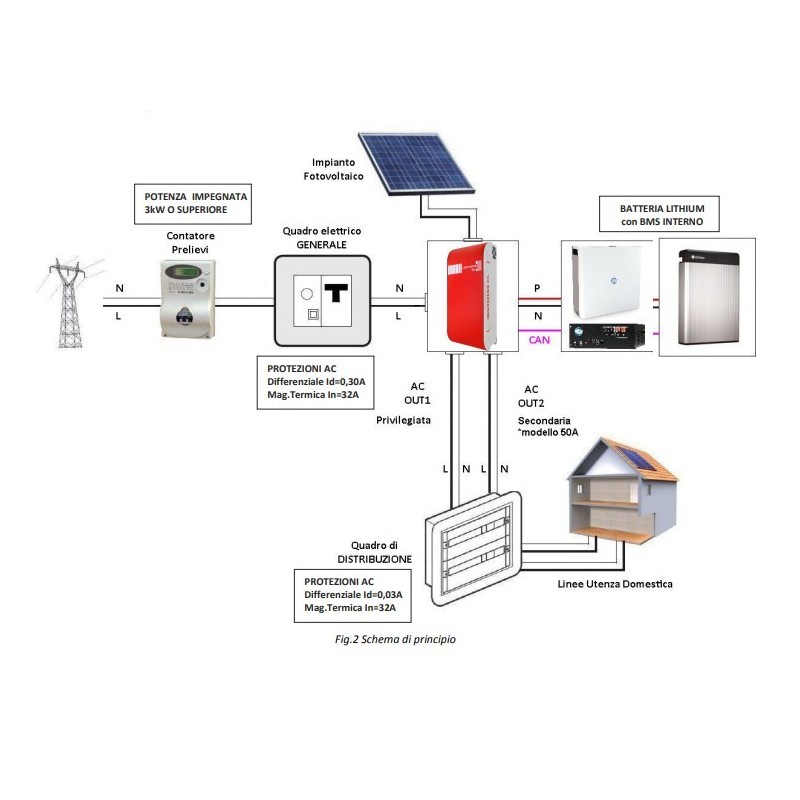

      In case of BLACK-OUT, the privileged users connected on the AC-OUT-1 line are powered by creating a PRIVILEGATED isolated network.
      During the day, the device is normally in the BY-PASS + INVERTER state, for direct self-consumption with accumulation, the PV system directly feeds the domestic users and the excess production is used to charge the battery, trying to cancel the power taken from the mains;
      In case of fully charged battery and reduced self-consumption, the management system never feeds energy into the grid, but a clean contact for maximum self-consumption allows to activate user loads (water heater, heat pump, etc. ...) increasing its share of self-consumed energy.
      At night, when we have no more PV power produced, the converter delivers the power required by the users, with the support of the electrical network in case of demand exceeding the capacity of the appliance.
      Lithium ion batteries: TAWAKI, RESU 3.3 - 6.5 - 10 LG CHEM
      Integrated monitoring and control

      Technical characteristics of the AC Leonardo 4K 3000-48 Li storage system


      Type of product: Hybrid storage system for NEW photovoltaic systems with LITHIUM battery able to guarantee the complete self-consumption of the energy generated 100% and to maximize the energy independence of domestic users.
      Hybrid storage system for NEW photovoltaic systems with LITHIUM battery
      MPPT charging through charge controllers with n.4 independent inputs
      Max PV Power 4kWp
      PEAK SHAVING function more power available from the electronic counter
      ANTI-BLACK OUT function on privileged users AC-OUT 1
      Optional external DATA-LOGGER
      Pure sine wave DC/AC inverter
      Rated power AC 3000VA
      Maximum Efficiency 95%
      Maximum charging current 60A
      Charge regulator efficiency PV 97.2%
      Contact for maximum self-consumption
      Battery disconnection switch
      Battery voltage 48Vdc
      LITHIUM batteries: TAWAKI, RESU - LG CHEM
      AC overload and short circuit protection
      IP20 Container
      Easy wiring and installation
      Complies with CEI 0-21

      You can discover the full range of storage systems on the dedicated section of the site by clicking HERE.


      Images and technical data not binding

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
