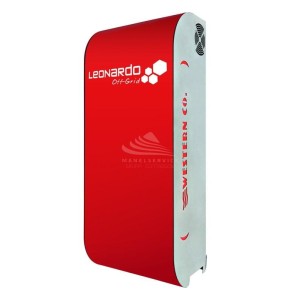

Storage System Leonardo Off-Grid 3000/48 GE Py
      Storage System Leonardo Off-Grid 3000/48 GE Py

      Storage System Leonardo Off-Grid 3000/48 GE Py

      016274

      Output power: 3000 VA
      Battery voltage: 48 V
      Output voltage: 230 V
      Output frequency: 50 Hz
      Transfer time Inverter <> Bypass: 10 ms
      Overload threshold: 85%
      Efficiency: 95%
      Bypass absorption: <5W
      Stand-by consumption: 16 W
      Generator set activation threshold: 15%
      Generator set shutdown threshold: 60%
      Maximum charging power: 2000 VA
      Internal over-temperature alarm: 65%.
      Working temperature: 40°

      Prezzo
      4,782.40 € tax incl.
      3,920.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      WESTERN CO
      016274

      Data sheet

      Frequency (Hz)
      50
      Voltage (V)
      230
      Protection degree
      IP20
      Length (mm)
      395
      Width (mm)
      940
      Height (mm)
      250
      Battery voltage (V)
      48
      Weight (Kg)
      25
      Output power (VA)
      3000
      Transfer time Inverter Bypass (ms)
      10
      Overload threshold
      85%
      Efficiency
      95
      Self-consumption on stand-by
      16 W
      Generator set activation threshold
      15%
      Maximum charging power (VA)
      2000
      Internal over-temperature alarm
      65%
      Operating temperature range (°C)
      40°

      Specific References

      New

      Storage System Leonardo Off-Grid 3000/48 GE Py

      Leonardo Off-Grid 3000/48 GE Py is a storage system designed and developed specifically for the production and storage of domestic energy; combined with photovoltaic modules and Lithium storage batteries, Leonardo Off-Grid 3000/48 GE Py provides power to the home until its complete self-sustainability. The Leonardo Off-Grid 3000/48 GE Py makes it easy and immediate the use of energy produced by photovoltaic modules, for the supply of domestic users, with the help of a generator (back-up) in case of reduced renewable energy. The Leonardo Off-Grid 3000/48 GE Py system provides four independent MPPT inputs through a dedicated charge regulator: this technology implements a research circuit of maximum power depending on the voltage and current of the PV module, always maximizing the energy supplied. By connecting a generator set to the AC input, the Leonardo Off-Grid 3000/48 GE Py system guarantees the continuity of operation of the utilities without perceptible discontinuity in case of low battery due to the reduced renewable energy available. In fact, the genset manages simultaneously the power supply of the loads and the charging of the battery bank.

      The Leonardo Off-Grid 3000/48 GE Py is equipped with an AC-OUT alternating current output line and an AC-IN alternating current input line. Since the device is equipped with an earth connection of the NEUTRO - TT system conductor, the AC-OUT AC output line can be protected with an AC-type thermal-magnetic circuit breaker, with rated current In=16A and differential current Id=0.03A (this circuit breaker is usually already present in the distribution board of the house as protection against indirect contacts, with 30mA differential current). The AC-IN alternating current input line can be protected with an AC-type thermal-magnetic circuit breaker, with rated current In=16A and differential current Id=0.3A, this circuit breaker can be inserted in an additional main switchboard or, if possible, in the existing distribution board in the dwelling.

      You can discover the full range of storage systems on the dedicated section of the site by clicking HERE.


      Images and technical data not binding

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
