Storage System Leonardo PRO II 3000-48 Li
      Storage System Leonardo PRO II 3000-48 Li
      Storage System Leonardo PRO II 3000-48 Li

      Storage System Leonardo PRO II 3000-48 Li

      016452

      Product type: LITHIUM storage system connected to the grid, specifically designed to be installed in existing photovoltaic systems (On-Grid), in order to increase the share of energy self-consumed by the user.
      EPS anti-blackout function with recovery time <10ms
      Fast and accurate internal energy flow measurement without exchange meter
      Efficient system cooling
      Complies with CEI 0-21
      Storage power management for maximum AUTO-CONSUMPTION
      PEAK SHAVING function for increasing the home system power availability
      DATA-LOGGER for production, consumption and input data  monitoring
      Pure sine wave DC/AC inverter
      Continuous output power: 3000VA
      Output voltage: 230Vac 50Hz
      Maximum Efficiency: 95%
      Battery charger power AC 2100W
      Battery disconnection switch
      Battery voltage: 48Vdc
      LITHIUM Batteries: TAWAKI
      AC overload and short circuit protection
      IP20 Container

      Prezzo
      3,766.14 € tax incl.
      3,087.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      016452

      Data sheet

      Continuous power single phase (KW)
      2.4
      Frequency (Hz)
      50
      Voltage (V)
      230
      Protection degree
      IP20
      Length (mm)
      271
      Width (mm)
      501
      Height (mm)
      143
      Weight (Kg)
      18

      Specific References

      New

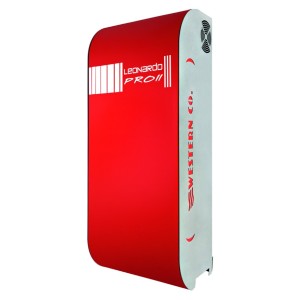

      Storage System Leonardo PRO II 3000-48 Li


      Storage system Leonardo PRO II 3000-48 Li 3000W 48V, Lithium Ion Battery.
      The Leonardo PRO II is a LITHIUM storage system, specifically designed for existing photovoltaic systems.
      In the event of a power grid black-out, the Leonardo PRO II supplies the utilities connected to the EPS output, avoiding feed-in to the power grid and with short recovery times.
      The Leonardo PRO II is used to increase the user's share of self-consumed energy, maximizing energy independence.
      The Leonardo PRO II 3000/48 Li is compatible with the integration configurations of storage systems in existing PV plants under state incentives, such as the decrees "II-V energy account", without altering the amount of energy produced and incentivised by the existing plant, in accordance with the installation schemes provided by CEI 0-21: 2016-07 + V1-2017.
      The Leonardo PRO II 3000/48 Li can be combined with Lithium Ion batteries.

      Advantages of using the AC storage system Leonardo PRO II 3000-48 Li

      - Maximum efficiency: 95%
      - Output power: 3000 VA
      - Efficient system cooling
      - AC overload and short circuit protection

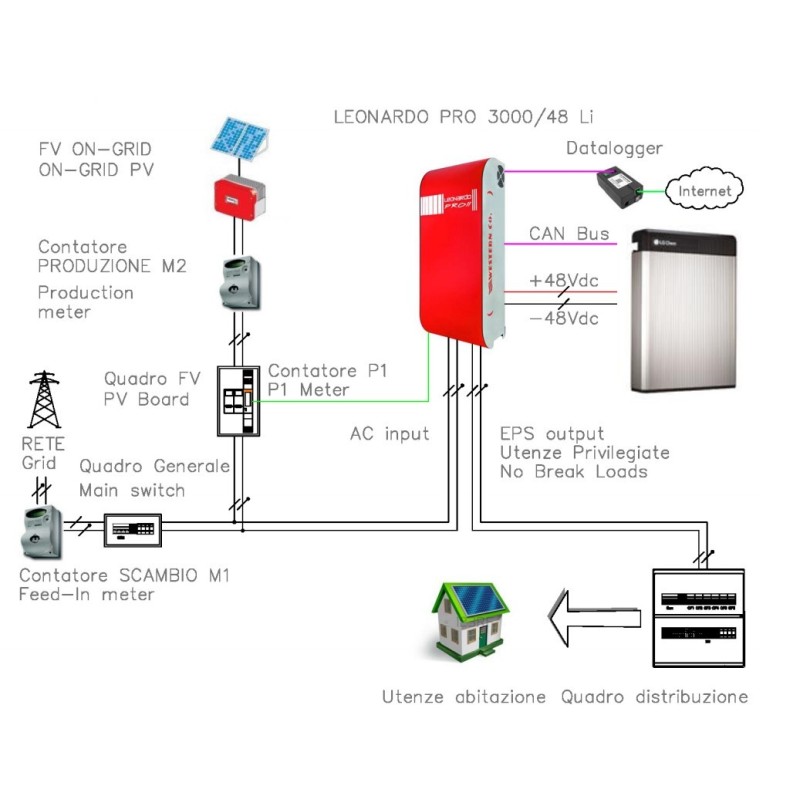

      PEAK SHAVING function for direct self-consumption + battery supply: the existing PV system directly feeds the consumer
      and the consumption peak is cancelled or minimized by the power drawn from the battery
      Anti-blackout function.
      In case of BLACK-OUT the privileged users connected on the EPS line are powered by creating an isolated OFF-GRID network.
      DATA-LOGGER is used to monitor production, consumption and input data.
      Lithium ion batteries: TAWAKY
      Compatibility with installations with TAWAKY BATTERY Lithium Ion Batteries
      Integrated monitoring and control

      Technical characteristics of the AC storage system Leonardo PRO II 3000-48 Li


      Product type: LITHIUM storage system connected to the grid, specifically designed to be installed in existing photovoltaic systems (On-Grid), in order to increase the share of energy self-consumed by the user.
      EPS anti-blackout function with recovery time <10ms
      Fast and accurate internal energy flow measurement without exchange meter
      Efficient system cooling
      Complies with CEI 0-21
      Storage power management for maximum AUTO-CONSUMPTION
      PEAK SHAVING function for increasing the home system power availability
      DATA-LOGGER for production, consumption and input data monitoring
      Pure sine wave DC/AC inverter
      Continuous output power: 3000VA
      Output voltage: 230Vac 50Hz
      Maximum Efficiency: 95%
      Battery charger power AC 2100W
      Battery disconnection switch
      Battery voltage: 48Vdc
      LITHIUM Batteries: TAWAKI
      AC overload and short circuit protection
      IP20 Container


      You can discover the full range of storage systems on the dedicated section of the site by clicking HERE.


      Images and technical data not binding

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
