      016992

      Product Type: Inverter Slave for single-phase system extension, Inverter for three-phase applications, LITHIUM storage system for Existing photovoltaic systems
      EPS anti-blackout function with recovery time <10ms
      Internal measurement of production and exchange energy flows
      Power compensation
      Storage power management and AUTO-CONSUMPTION
      PEAK SHAVING function to increase the available power in the plant
      DATA-LOGGER for monitoring production, consumption and input data
      Pure sine wave DC/AC inverter
      Continuous output power: 3000VA
      Output voltage: 400Vac 50Hz
      Maximum efficiency: 95%
      Battery voltage: 48Vdc
      LITHIUM batteries: RESU LG Chem
      AC overload and short circuit protection
      IP21 container.

      Prezzo
      2,847.48 € tax incl.
      2,334.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      016992

      Data sheet

      Continuous power single phase (KW)
      2.4
      Frequency (Hz)
      50
      Voltage (V)
      230
      Protection degree
      IP21
      Acoustic pressure
      44 dB(A)
      Length (mm)
      271
      Width (mm)
      501
      Height (mm)
      143
      Weight (Kg)
      18

      Specific References

      New

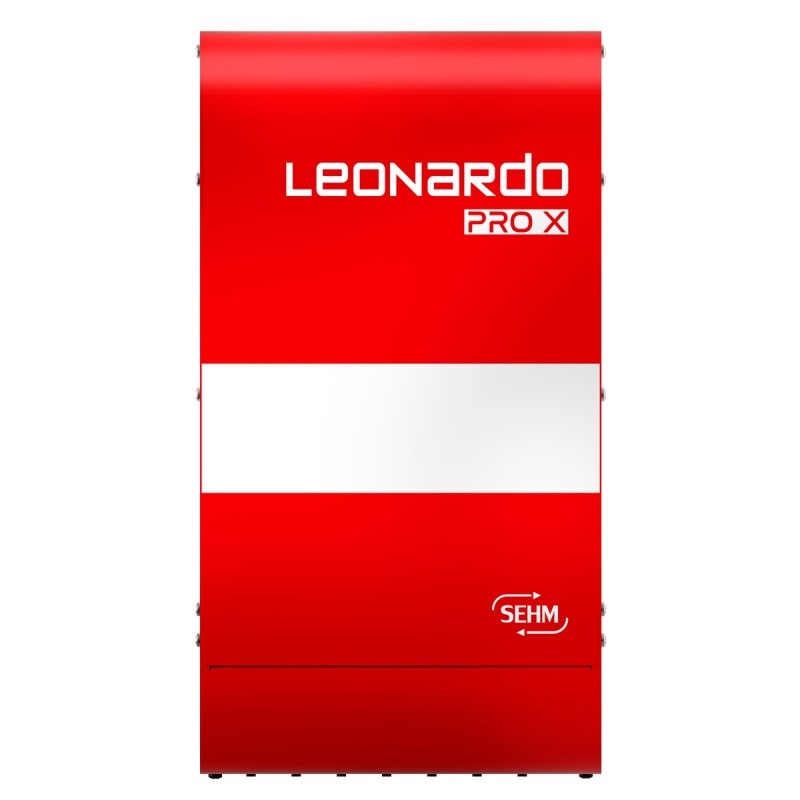

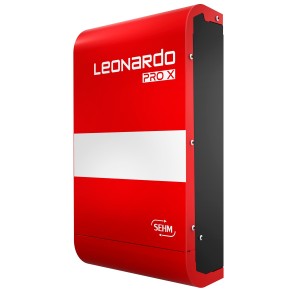

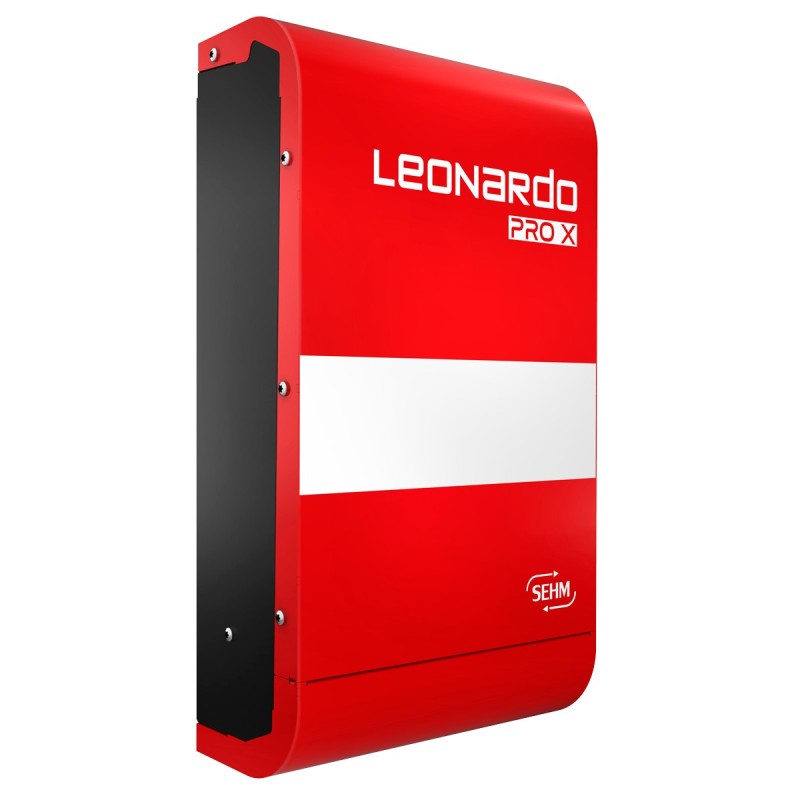

      Storage System Leonardo PRO X 3000-48 SL


      Storage system Leonardo PRO X 3000-48 SL 3000W 48V, Lithium Battery - Integrated Monitoring


      The Leonardo PRO X is a LITHIUM storage system, specifically designed for existing photovoltaic systems.

      In the event of a power blackout, the Leonardo PRO X continues to deliver energy at maximum power, thus ensuring continuity of operation without perceptible discontinuity of users.

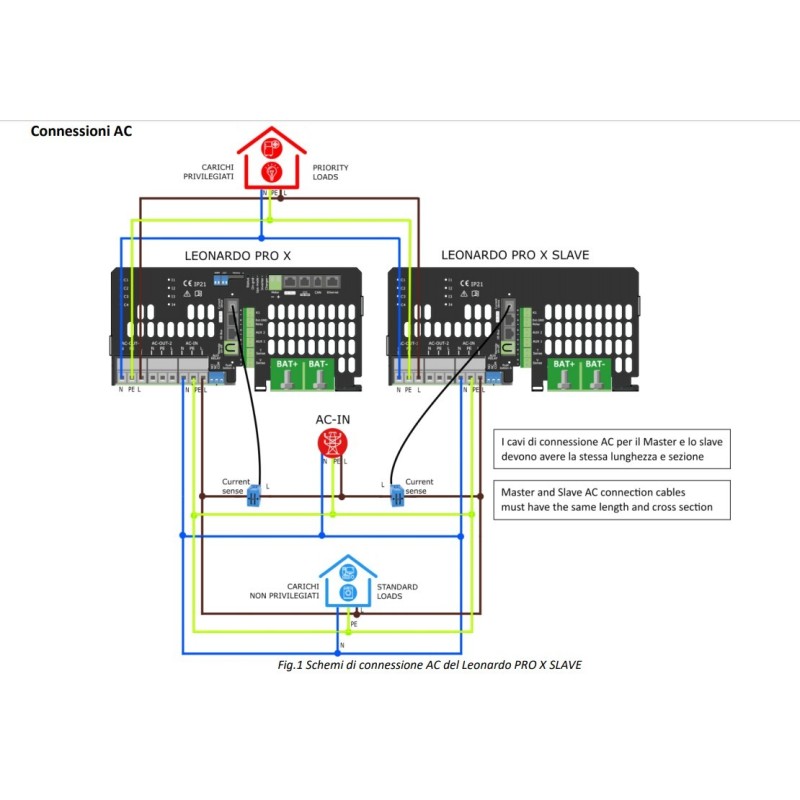

      The Leonardo PRO X is used either for the expansion of a single-phase system by combining it with a Leonardo Pro X 3000/48 Li or on three-phase systems with power up to 45 kW.

      The Leonardo PRO X 3000/48 SL can be combined with LG Chem batteries: RESU 3.3, RESU 6.5, RESU 10, RESU 13 up to 26 kWh.

      Advantages of using the AC storage system Leonardo PRO X 3000-48 SL

      New Hardware
      - Maximum efficiency: 95%
      - Output power: 3000VA
      - Small size: a quarter of the previous model
      Load management and anti-blackout
      Load management with current sensor and EPS output for privileged loads in case of blackout with a recovery time of less than 10 ms.
      Modularity
      DATA-LOGGER is used for production, consumption and input data monitoring.
      Batteries: RESU - LG Chem
      US2000 Plus - Pylontech
      Compatible with all LG Chem battery models: RESU 3.3, RESU 6.5, RESU 10, RESU 13 up to 26kWh.
      Integrated monitoring and control


      Technical characteristics of the AC storage system Leonardo PRO X 3000-48 SL


      Product Type: Inverter Slave for single-phase system extension, Inverter for three-phase applications, LITHIUM storage system for Existing photovoltaic systems
      EPS anti-blackout function with recovery time <10ms
      Internal measurement of production and exchange energy flows
      Power compensation
      Storage power management and AUTO-CONSUMPTION
      PEAK SHAVING function to increase the available power in the plant
      DATA-LOGGER for monitoring production, consumption and input data
      Pure sine wave DC/AC inverter
      Continuous output power: 3000VA
      Output voltage: 400Vac 50Hz
      Maximum efficiency: 95%
      Battery voltage: 48Vdc
      LITHIUM batteries: RESU LG Chem
      AC overload and short circuit protection
      IP21 container

      You can discover the full range of storage systems on the dedicated section of the site by clicking HERE.


      Images and technical data not binding

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
