AGROWATT AWT 4-22 Tractor Generator Single Phase 8.8 kVA/ Three Phase 22.5 kVA Compound

Name: AGROWATT AWT 4-22 Tractor Generator Single Phase 8.8 kVA/ Three Phase 22.5 kVA Compound
Brand: AGROWATT
SKU: 159672
Price: 2449 EUR
Availability: InStock

Reference 159672

Phase Type: Single-Phase / Three-Phase
Engine Speed (rpm): 1500
Minimum Tractor Power (Hp): 66
Maximum Single-Phase Power (kVA): 8.8
Maximum Three-Phase Power (kVA): 22.5
PTO Speed (rpm): 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 1160
Width (mm): 683
Height (mm): 915
Weight (kg): 157
poles: 4
Compound

Download Data Sheet AWT 4-22

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KVA): 8.8
Maximum power three phase (KVA): 22
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine rpm (rpm): 1500
Poles: 4
Protection degree: IP23
PTO speed (round/min): 430
Minimum tractor output (HP): 66
Transmission ratio: 1 : 3.5
Length (mm): 955
Width (mm): 683
Height (mm): 915
Dry weight (Kg): 157
Brushes: Yes
Voltage regulator: Compound

Brand

AGROWATT AWT 4-22 PTO Driven Generator Single-Phase 8.8 kVA / Three-Phase 22.5 kVA Compound

- For outdoor applications (fields and homes), in the event of a blackout, and in areas not served by the electricity grid.

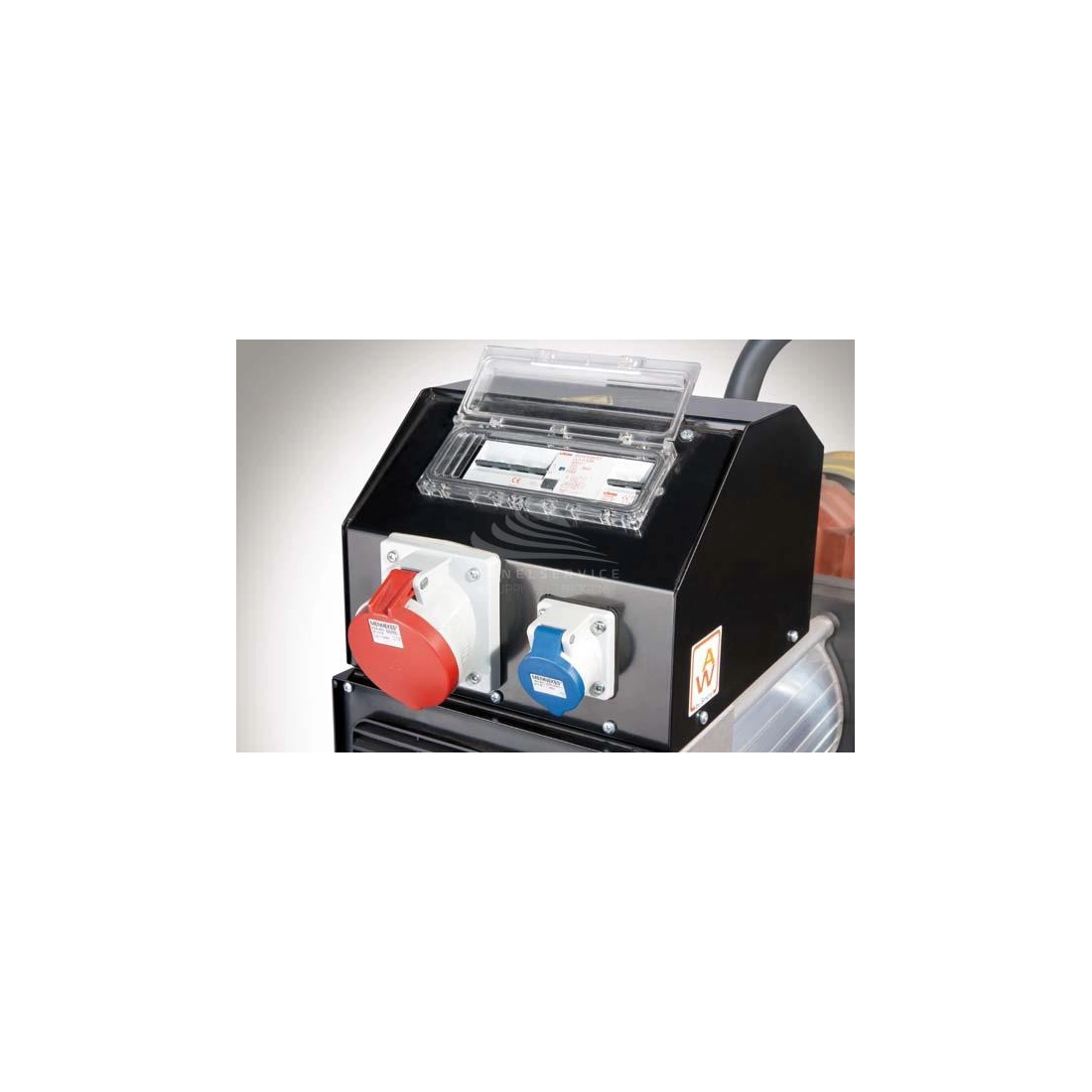

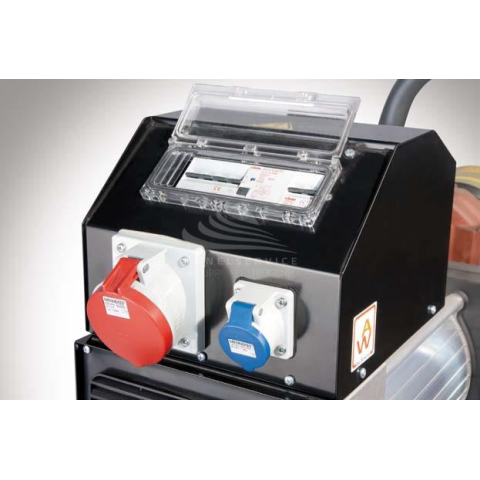

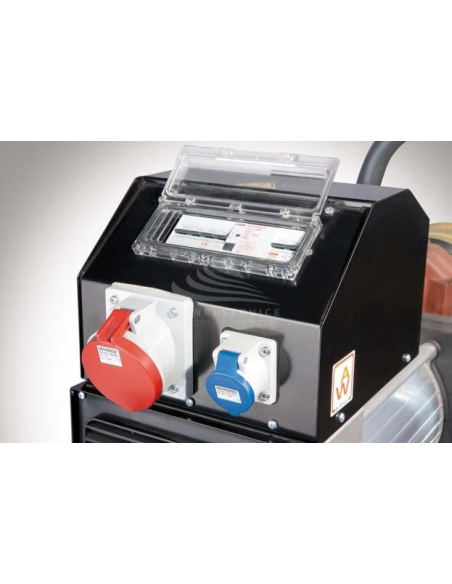

- Supplied with a multiplier and protection kit, a 3-point hitch mount (patented design), and an electrical panel with a multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter).
- Durability and maximum protection (magnetic circuit breaker and differential).
- 24-month warranty.
- Easy packaging and storage.

Technical characteristics:

Phase Type: Single-Phase / Three-Phase
Engine Speed (rpm): 1500
Minimum Tractor Power (Hp): 66
Maximum Single-Phase Power (kVA): 8.8
Maximum Three-Phase Power (kVA): 22.5
PTO Speed (rpm): 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 1160
Width (mm): 683
Height (mm): 915
Weight (kg): 157
poles: 4
Compound

If you are looking for a product with similar characteristics CLICK HERE.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
