AGROWATT AWT 2-24 PTO GENERATOR - THREE-PHASE COMPOUND 24KVA

AGROWATT AWT 2-24 PTO GENERATOR - THREE-PHASE COMPOUND 24KVA

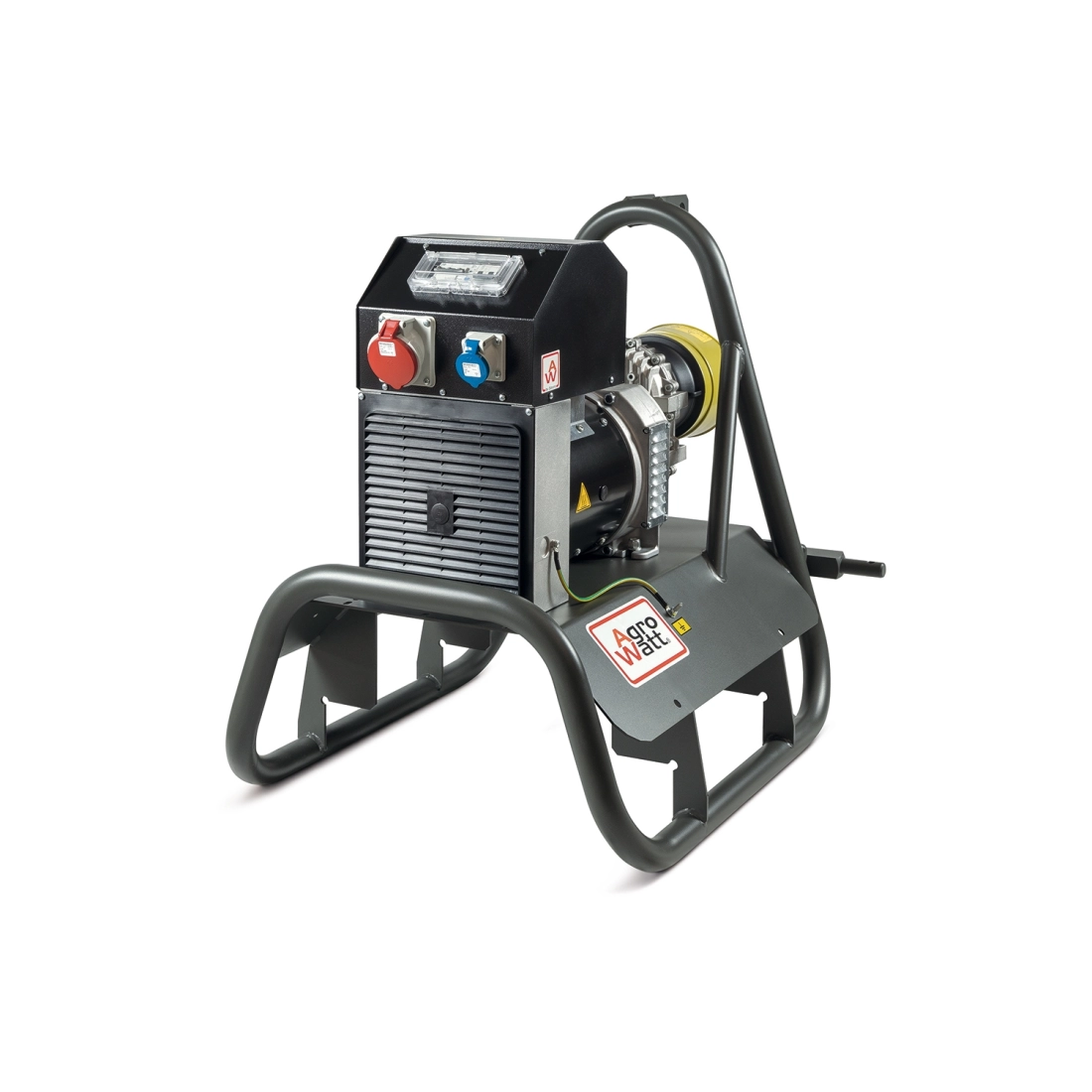

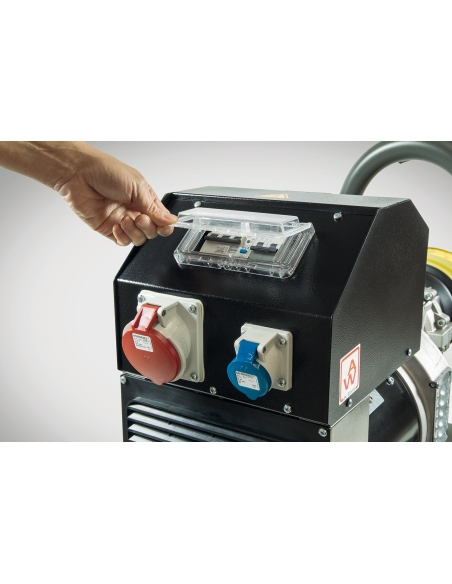

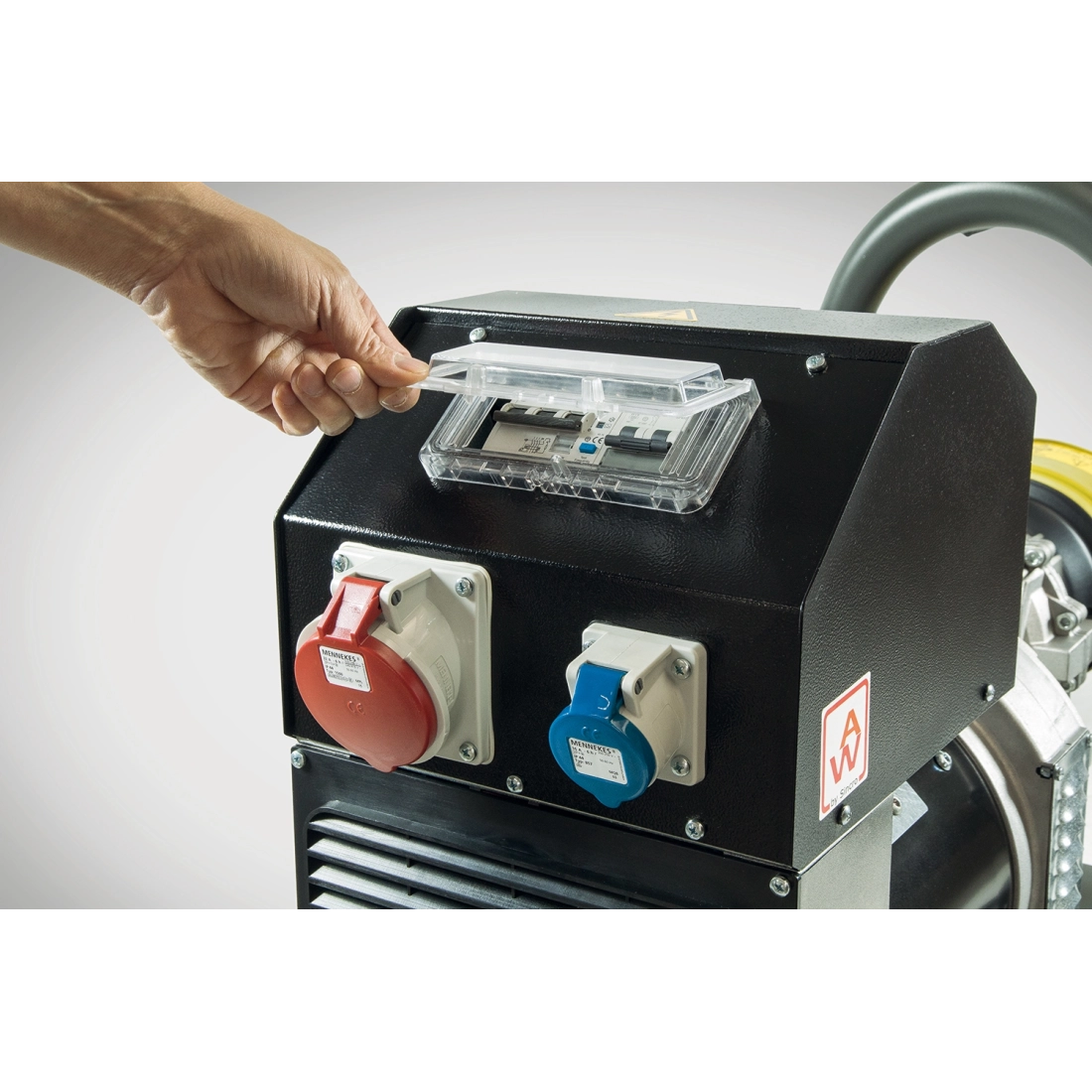

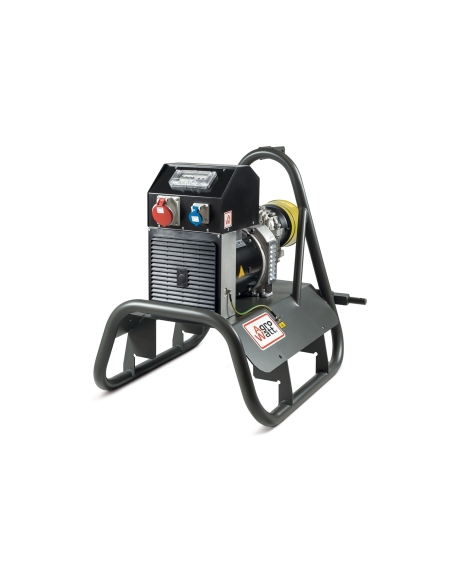

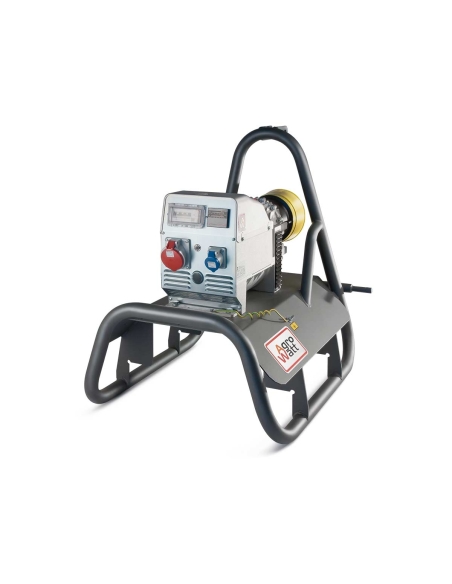

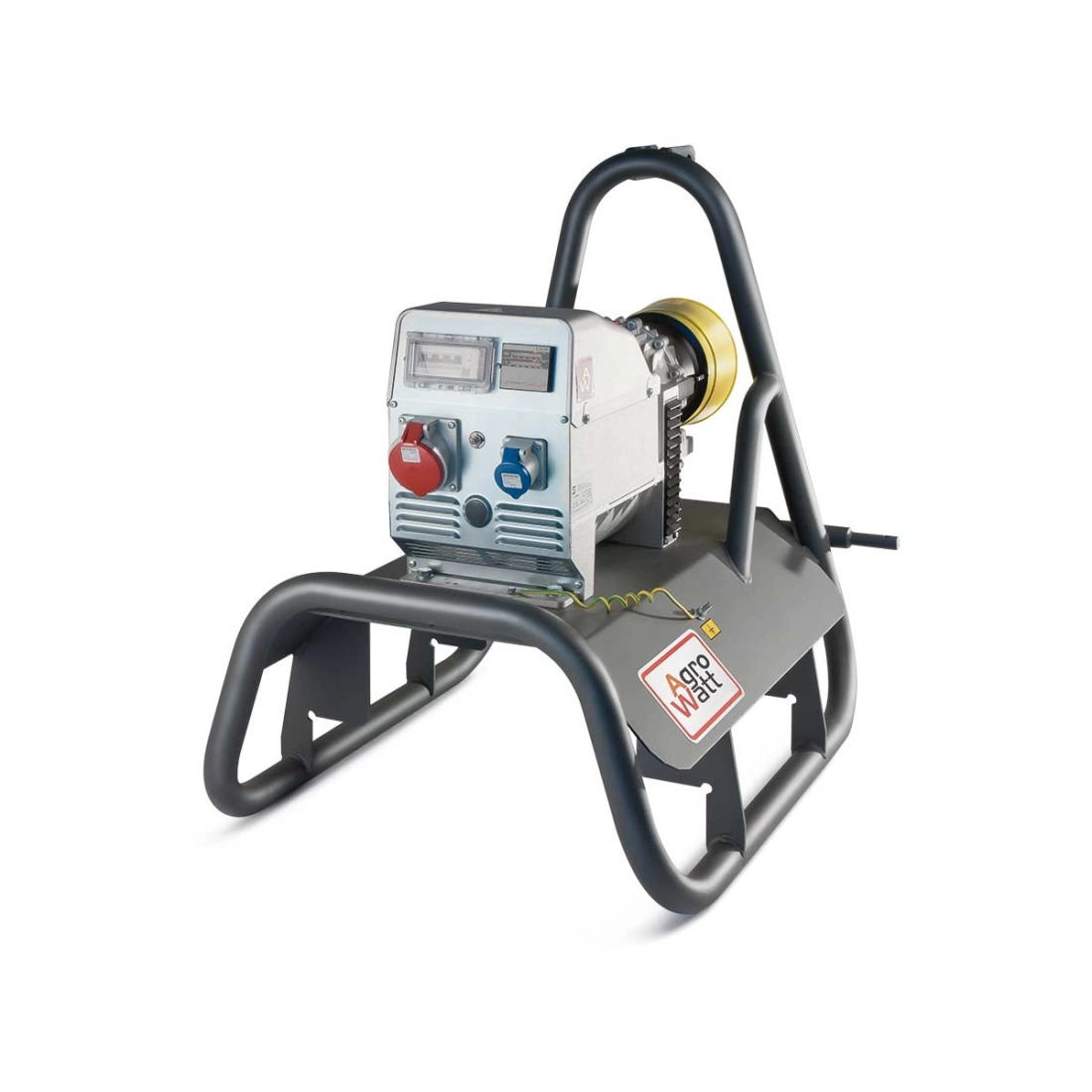

The AGROWATT AWT 2-24 PTO GENERATOR - THREE-PHASE 24KVA is the ideal solution for those requiring a robust and reliable generator, powered by the tractor's PTO.
Thanks to its 2-pole compound configuration, it ensures optimal load management even in the presence of sudden power peaks, typical of agricultural tools and machinery.
The AGROWATT AWT 2-24 PTO GENERATOR - THREE-PHASE 24KVA offers a maximum power of 24 kVA in the three-phase version (8.8 kVA in single-phase), with dual output voltage 230/400V and a frequency of 50 Hz,
to adapt to different operating needs. It requires a tractor with a minimum power of 69 HP and operates at an engine speed of 3000 rpm, with the PTO calibrated at 430 rpm.
From a construction point of view, the AGROWATT AWT 2-24 CARDAN GENERATOR - THREE-PHASE 24KVA has compact dimensions (955 x 683 x 915 mm) and a weight of 144 kg,
which facilitate its transport and installation on the farm. A product designed to ensure energy continuity in the field, both for powering three-phase and single-phase equipment.

Technical Features:

Phase Type: Three-Phase/Single-Phase
Engine Speed ​​(rpm): 3000
Tractor Power (HP): 69
Single-Phase Power (kVA): 8.8
Three-Phase Power (kVA): 24
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 955
Width (mm): 683
Height (mm): 915
Weight (kg): 144
Compound
Poles: 2
