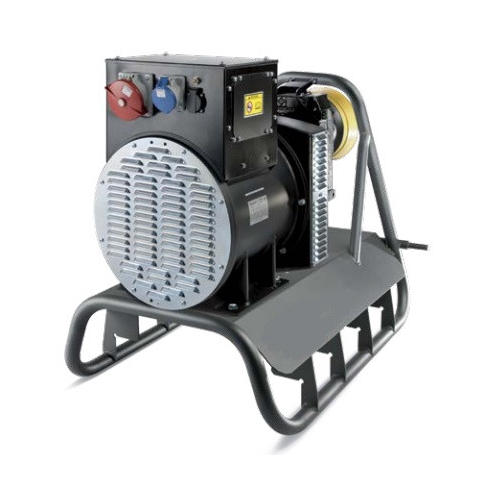

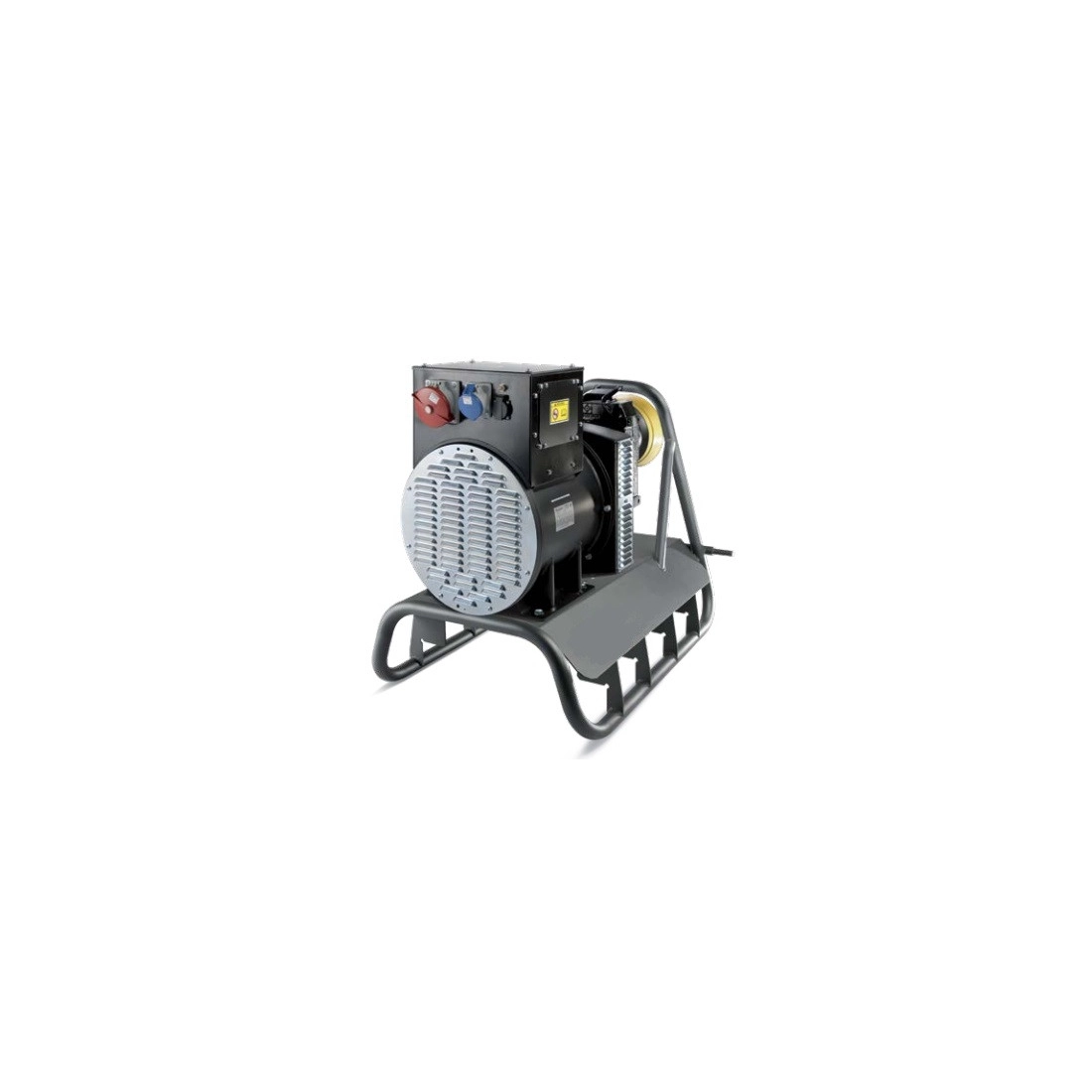

PTO Generator Single Phase 26 kVA/ Three Phase 65 kVA AVR

Reference 183479-NB

Phase: Single / Three Phase
RPM: 1500
Required tractor power (Hp): 202
Single-phase power (kVA): 26
Three-phase power (kVA): 65
Pto Speed (rpm): 400
Voltage (V): 230 / 400
Frequency (Hz): 50
Lenght (mm): 1204
Width (mm): 640
Height (mm): 923
Weight (Kg): 335
AVR

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 20.8
Maximum power single phase (KVA): 26
Maximum power three phase (KW): 52
Maximum power three phase (KVA): 65
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V SCHUKO
Engine rpm (rpm): 1500
Protection degree: IP23
PTO speed (round/min): 400
Minimum tractor output (HP): 202
Transmission ratio: 1 : 3.8
Length (mm): 1204
Width (mm): 640
Height (mm): 923
Dry weight (Kg): 335
Brushes: No
Voltage regulator: AVR

Brand

PTO Generator Single Phase 26 kVA/ Three Phase 65 kVA AVR

- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid

- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 12 months
- Easy packaging and storage

Technical data:

Non-binding images and technical data.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
