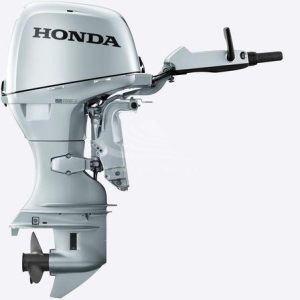

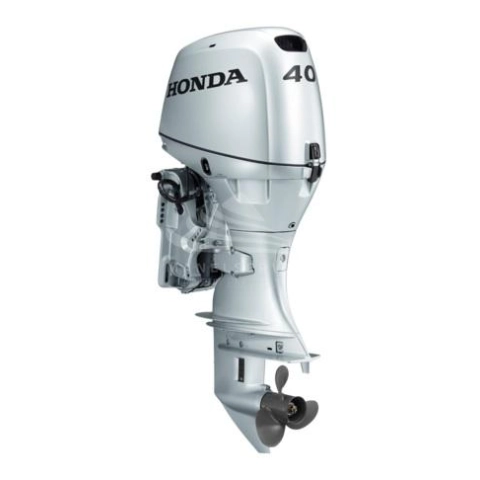

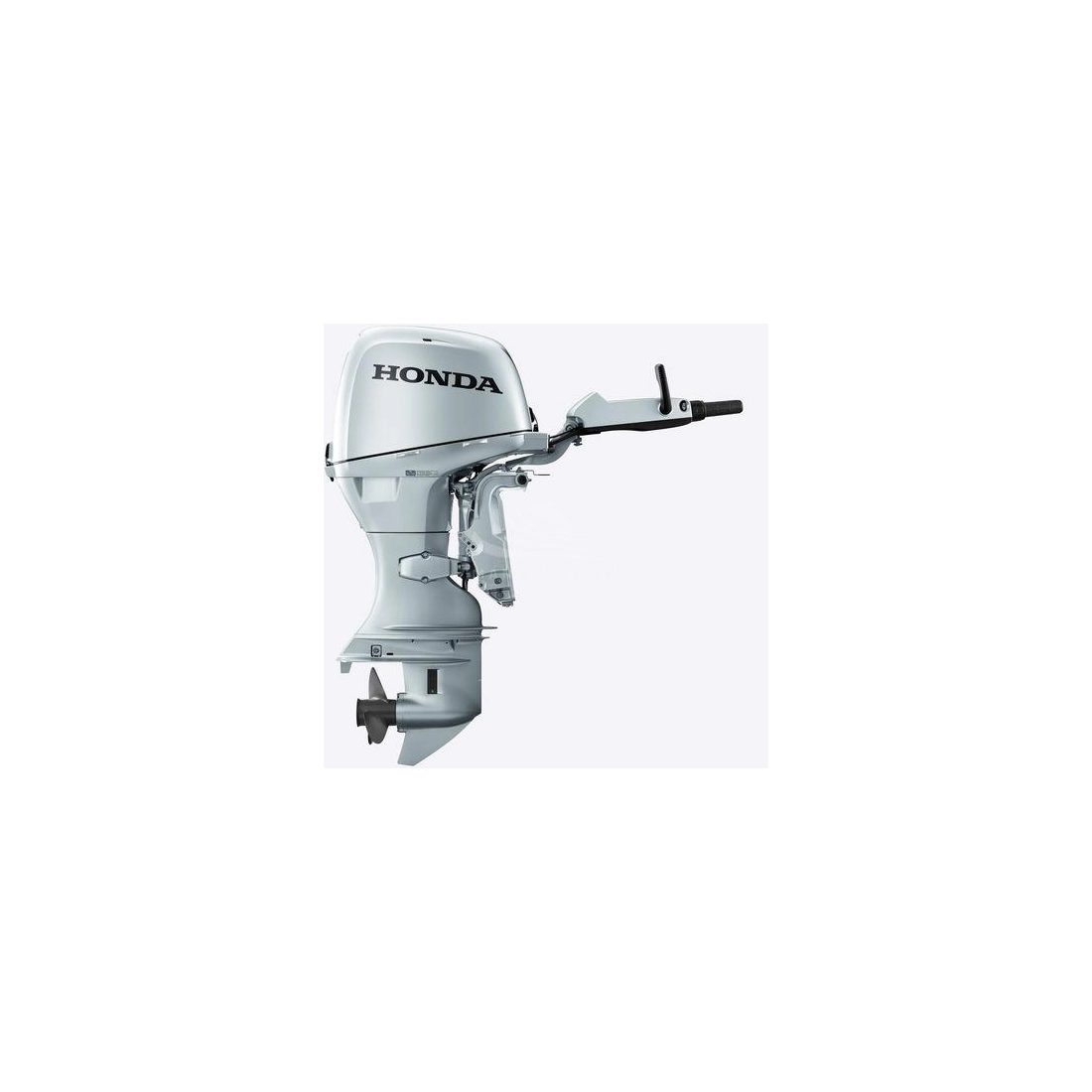

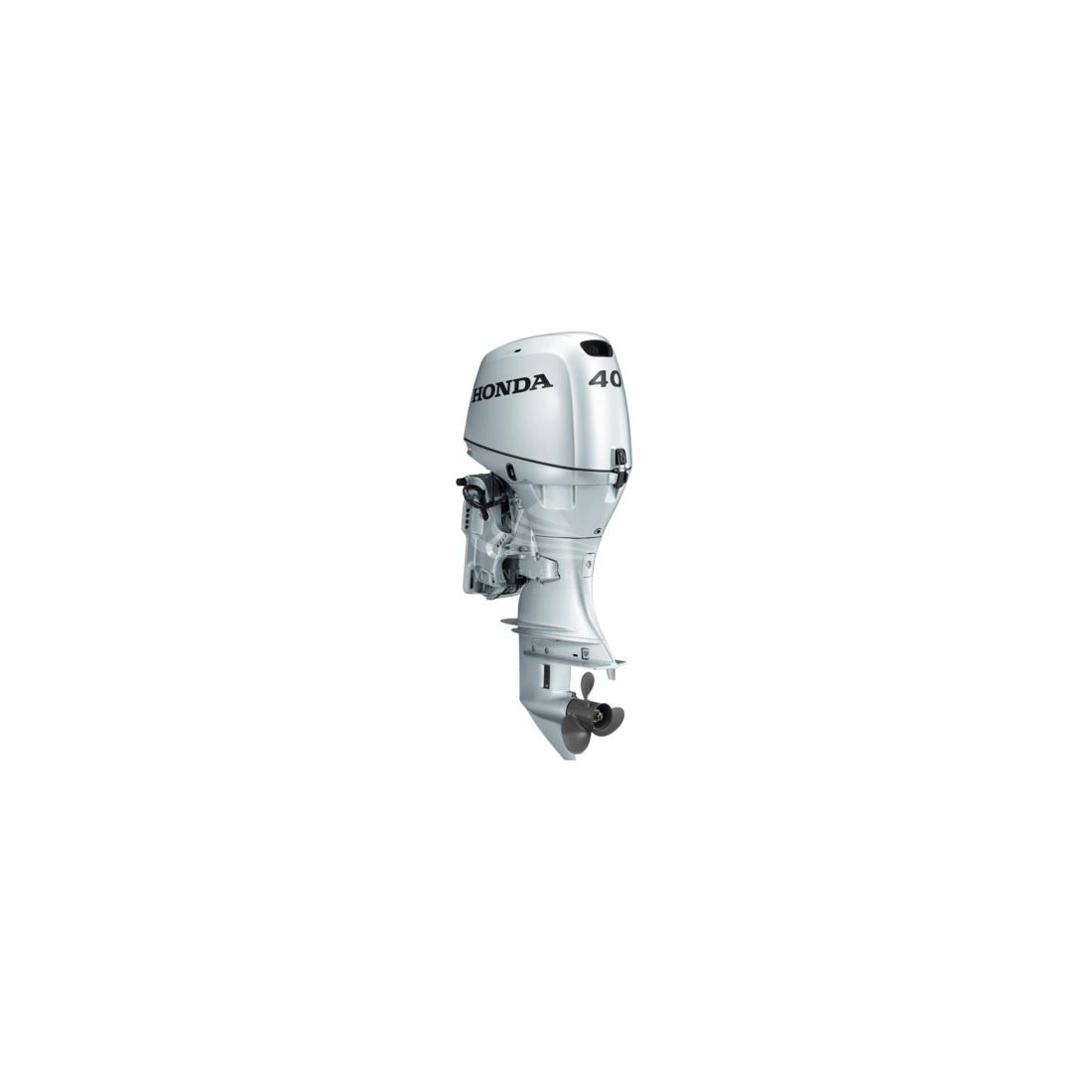

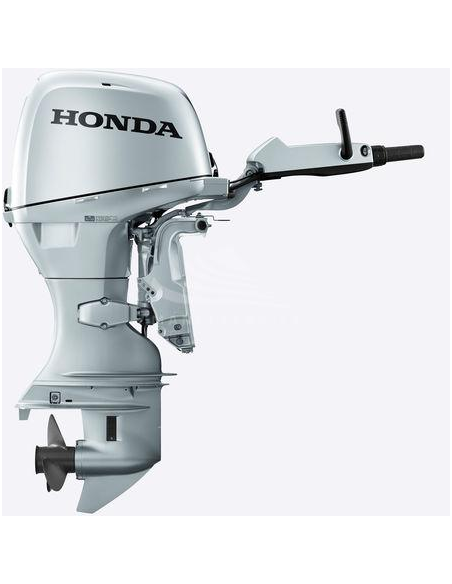

HONDA Outboard BF 40 SRTZ Short Shaft 29.8 kW 40 Hp 808 cm³

Brand: HONDA

Reference: BF 40DK4 SRTZ

Condition: New product

Net Power (kW): 29.8
Net Power (Hp): 40
Displacement: 808 cm³
Shank length: Short
Dry weight (Kg): 96
Starter: Electric
Ignition system: Electronic PGM-IG
Type of control Remote
Setup and engine lifting: Electric
Transom height (mm): 416
Length (mm): 694
Width (mm): 372
Height (mm): 1258
Bore x stroke: 70 x 70 mm
Engine Brand: Honda
Engine Type: OHV, 4 stroke
Number of cylinders: 3
Speed at full throttle (rpm): 5000-6000
Cooling system: Water
Battery charge capacity (A): 17
Propeller Rotation: Standard

Technical features

Fuel: Gasoline
Engine: OHV, 4 stroke
Ignition: Electronic PGM-IG
Starting system: Electric
Engine capacity (cm³): 808
Number cylinders: 3
Cooling: Water (with thermostat)
Bore x stroke (mm): 70 x 70
Reduction ratio: 2.08
Rpm at full throttle (rpm): 5000 - 6000
Appearance and engine lifting: Electric
Transom height (mm): 416
Net power (kW): 29.8
Fuel tank capacity (L): 25
Length (mm): 694
Width (mm): 372
Height (mm): 1258
Dry weight (Kg): 96
Shaft Length: S
Controls: Remote

Details

HONDA BF40DK4 SRTZ outboard

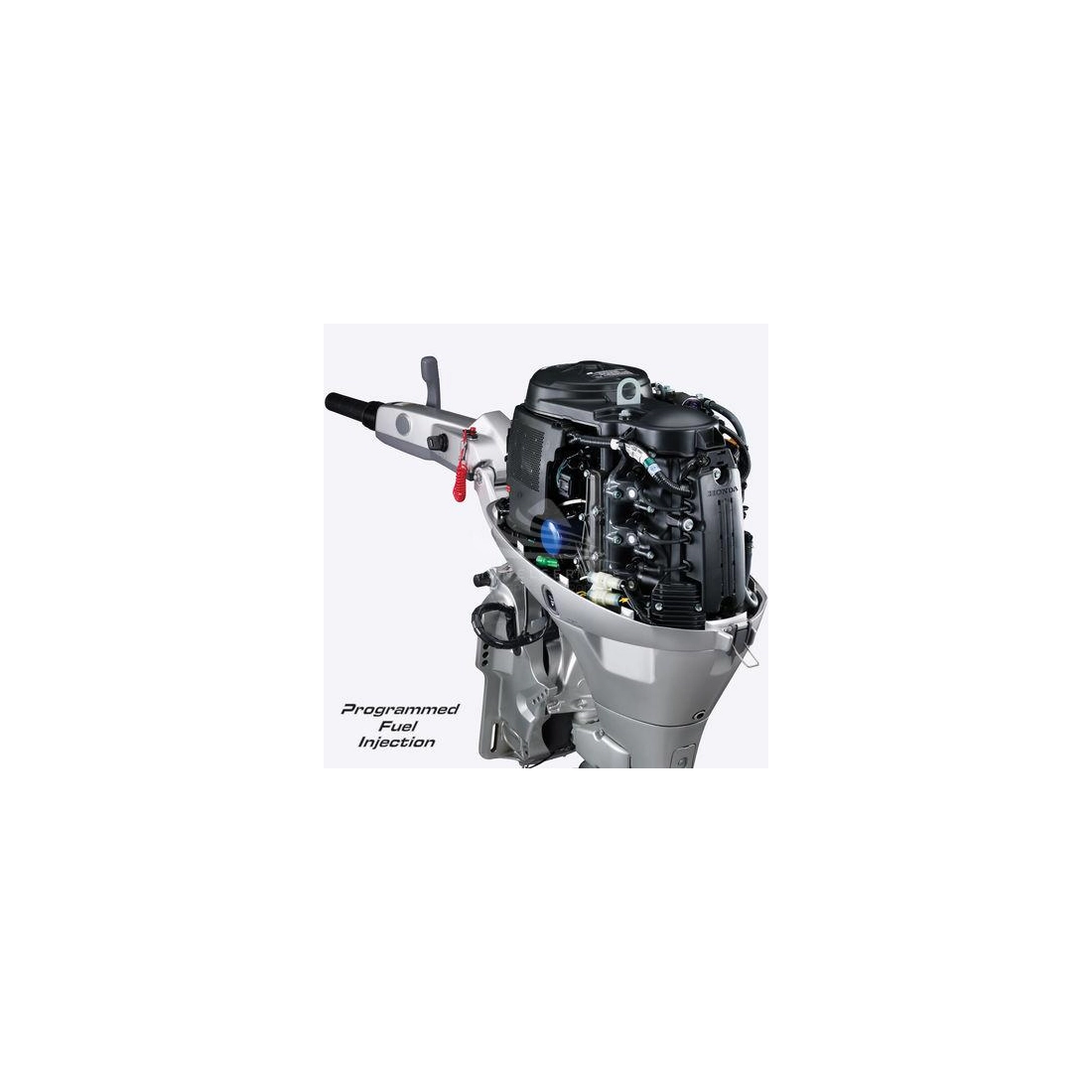

The Honda BF40DK4 SRTZ is a lightweight, compact 808 cm³, three-cylinder outboard engine with PGM-Fi electronic fuel injection for easy starting. Plus, thanks to the Ignition Phase Advance System (BLAST™) and ECOmo cruise velocity fuel delivery control system.

The Honda BF40DK4 SRTZ are lively, responsive outboards that deliver reliable performance for water enthusiasts. NMEA2000®-compliant, electronically fuel-injected outboards with optional helm control.

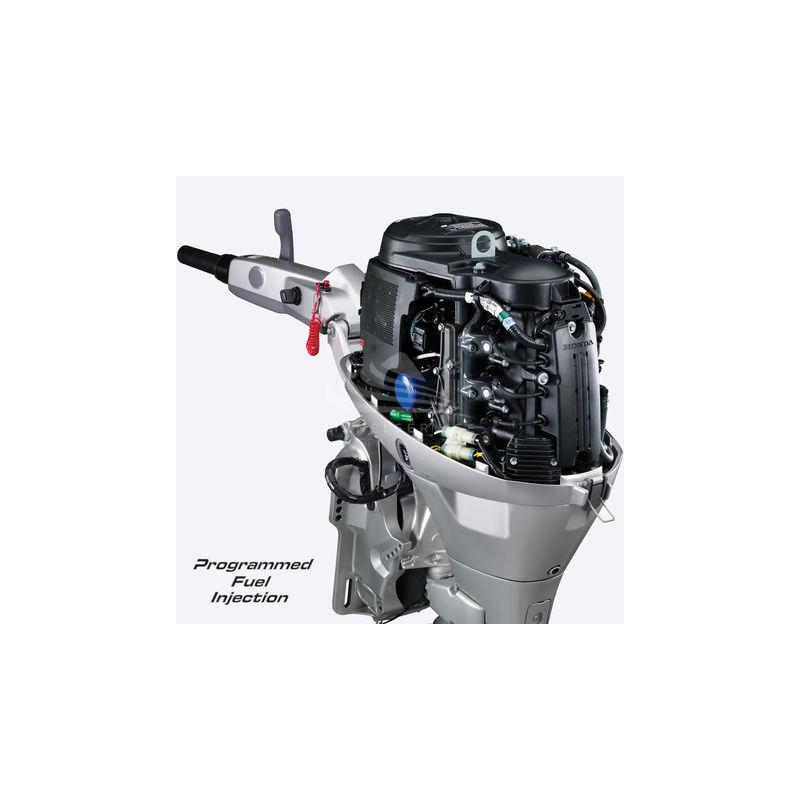

Exclusive Honda BLAST™ technology with PGM-Fi electronic fuel injection delivers instant acceleration that gets you up to velocity very quickly. This is made possible by improved ignition timing accuracy, which develops more torque at low rpm, allowing you to reach cruising speed quickly.

Honda BF40DK4 SRTZ ECOmo system automatically adjusts the air/fuel mixture according to speed and load for maximum efficiency with minimum fuel consumption. When your boat has reached cruising speed (in the green zone shown above) the PGM-FI system can adjust the air/fuel ratio while consuming up to 20%.

The high power alternator generates a current of 22 Amps, which keeps the battery in the best condition with a load capacity of 17 Amps and also powers all the electronic equipment on board.

The Honda BF40DK4 SRTZ are NMEA2000® (National Marine Electronics Association) compliant, so they are compatible with all other NMEA2000®-compliant electronic devices, such as navigation and fishfinder systems.

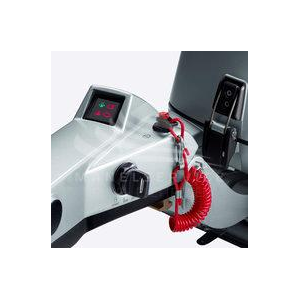

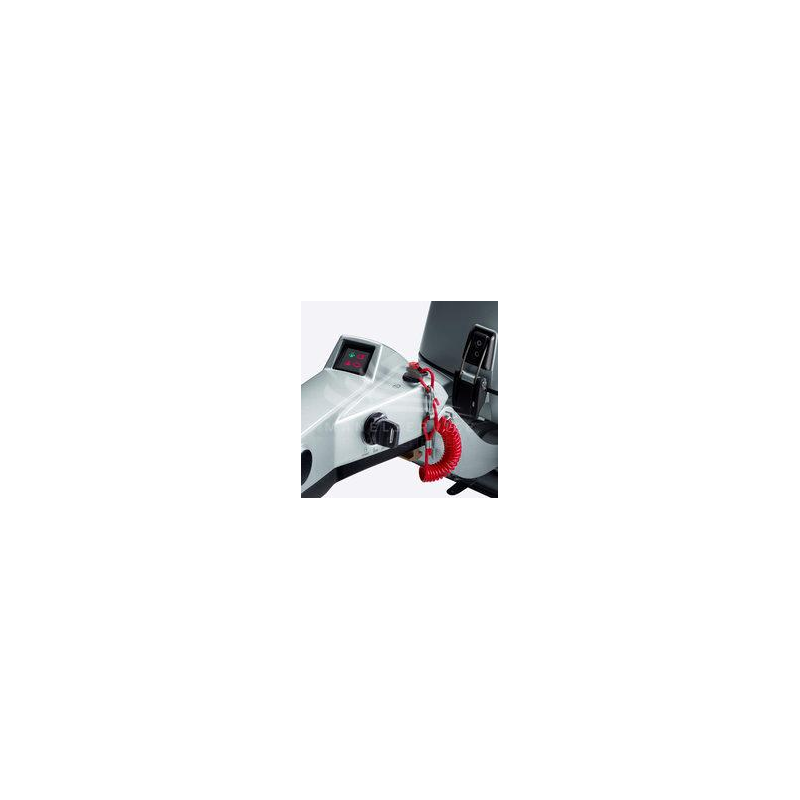

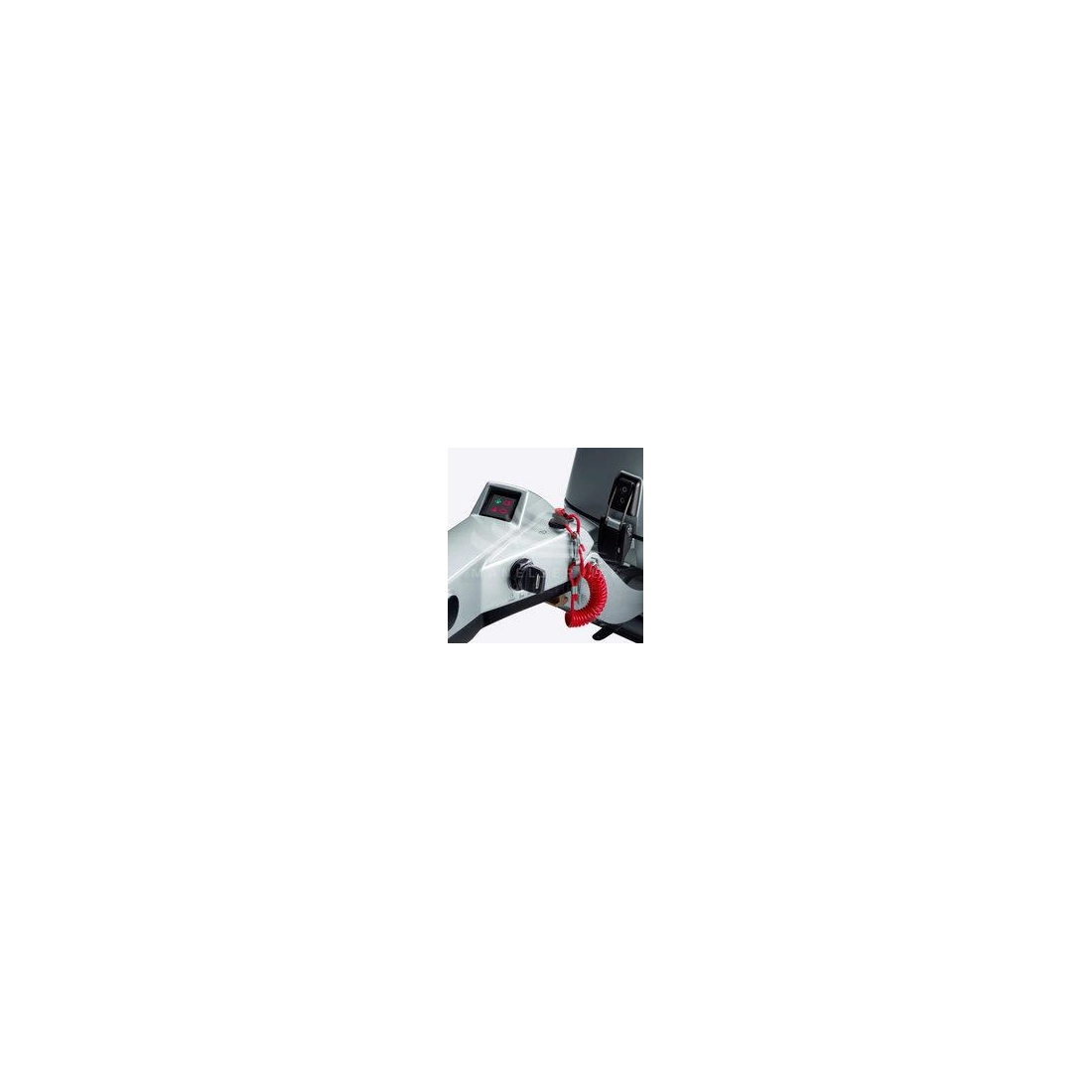

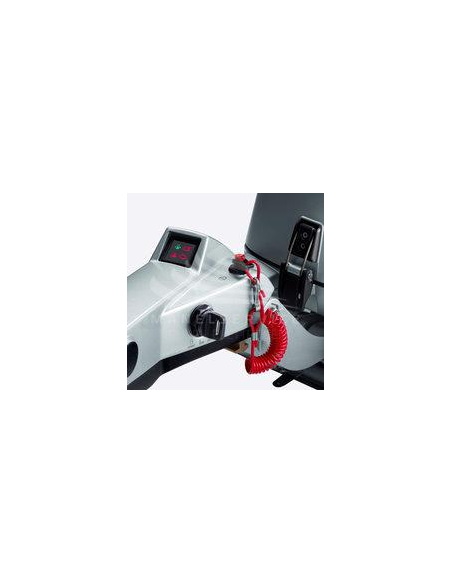

Honda outboards have a multifunction control bar with an LED panel that displays engine warning lights, oil pressure, overheating, engine management and battery charge. It also beeps if something happens while you're focused on other tasks

Precise low-speed control is just as important as high-speed management, especially while fishing. The optional rudder control, through the control bar, simply adjusts the velocity in 50 rpm increments, making it ideal for fishing. Honda has made outboard engines cleaner, quieter and more environmentally friendly with the introduction of the 4-stroke.

TECHNICAL CHARACTERISTICS HONDA BF40DK4 SRTZ

Are you looking for an outboard with different technical characteristics? Here you can find the entire Honda range or other brands specializing in the field.

Images are indicative only.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
