MARINE GENERATOR KOHLER 9EKOZD Single-Phase 8.5 kVA Engine

marine genset 9ekozd single phase 9 kva kohler engine
search
  • marine genset 9ekozd single phase 9 kva kohler engine
  • marine genset 9ekozd single phase 9 kva kohler engine
  • marine genset 9ekozd single phase 9 kva kohler engine
KOHLER
9EKODZ 120
New product

Phase Type: Single-phase
Fuel: Diesel
Frequency: 60 Hz
Continous single-phase power: 8.5 kW
Continous single-phase power: 8.5 kVA
Voltage: Choice of 120 V or 120/240 V
KOHLER 3-cylinder engine
Displacement: 1028 cc.
Revolutions per minute: 1800
Liquid cooling
Consumption at 75%: 2.6 L per minute
Length: 865 mm
Width: 528 mm
Height: 559 mm
Dry weight: 245 Kg
Outfitting: group with cabin and muffler
Integrated generator set control and voltage regulation

Technical features
Phase
Single phase
Continuous power single phase (KW)
8.5
Continuous power single phase (KVA)
8.5
Fuel
Diesel
Frequency (Hz)
60
Engine
4 stroke
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
1028
Number cylinders
3
Oil capacity (L)
2.5
Cooling
Water
Poles
4
Bore x stroke (mm)
75 x 77.6
Compression ratio
24.5 : 1
Motor insulation class
H
Consumption (L/h)
2.5 at 75% of the load
Length (mm)
865
Width (mm)
528
Height (mm)
559
Dry weight (Kg)
245
Silenced
Yes
Super silenced
Yes
Product type
Generator
Voltage regulator
Digital AVR
Engine manufacturer
Kohler
Details

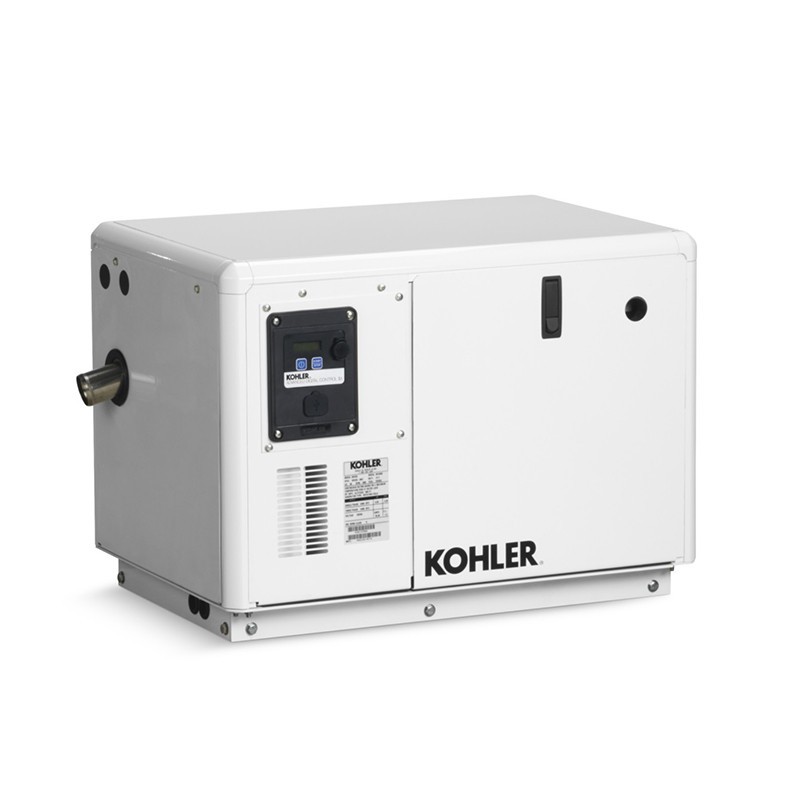

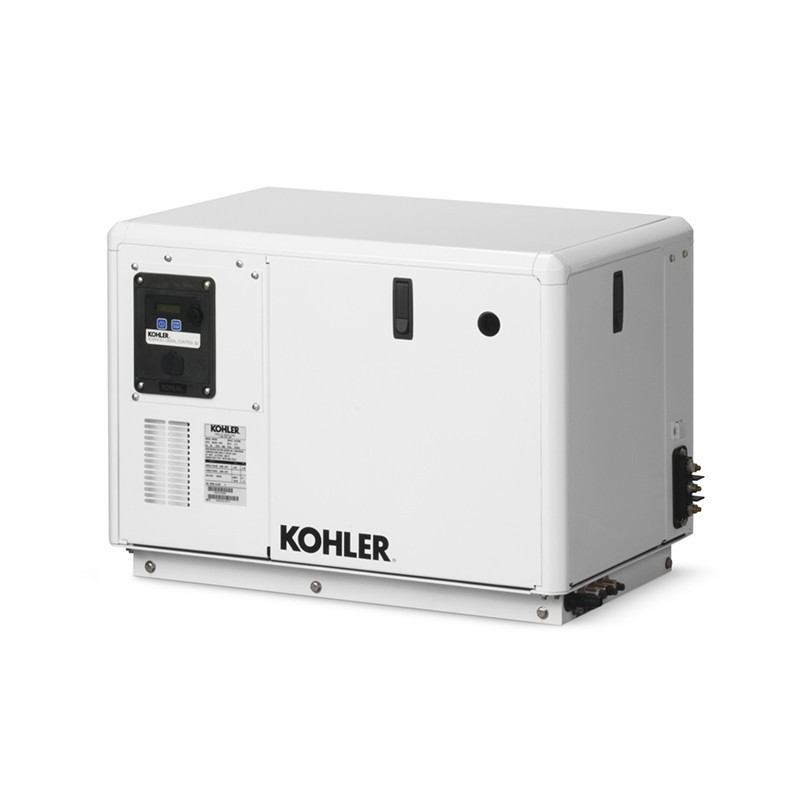

Super-silenced single-phase KOHLER 9EKOZD marine generator 8.5 KVA AVR

Generator Kohler 9EKOZD singlephase 8,5 KVA, with 1500 rpm motor. The KOHLER 9EKOZD singlephase marine generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 9EKOZD singlephase marine generator is built with a 3-cylinder, 4-cycle, diesel-powered Kohler engine, closed cooling system with heat exchanger. The singlephase KOHLER 9EKOZD marine generator alternator is brushless with AVR voltage regulator and water-cooled. The AVR voltage regulator protects your connected sensitive devices from power surges. With its small size, the 9EKOZD marine generator is also suitable on boats of various sizes.

Features of the KOHLER 9EKOZD generator

- 12-pole connector with remote start
- Class H insulation
- Multi-voltage adjustability
- Voltage adjustment of 1.0%.
- Radio suppression

Engine features of the KOHLER 9EKOZD generator

- Diesel
- Environmental Protection Agency (EPA) certified for compliance with Tier III marine auxiliary standards (60 Hz model only)
- Three cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Lifting eyelet
- Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter

Features of the KOHLER 9EKOZD alternator

- Brushless rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip tray.
- Equipped with a four-conductor reconnectable stator.

Other marine generators such as the KOHLER 9EKOZD can be found by browsing the entire catalog of marine generators.

Pictures and technical data are not binding.
