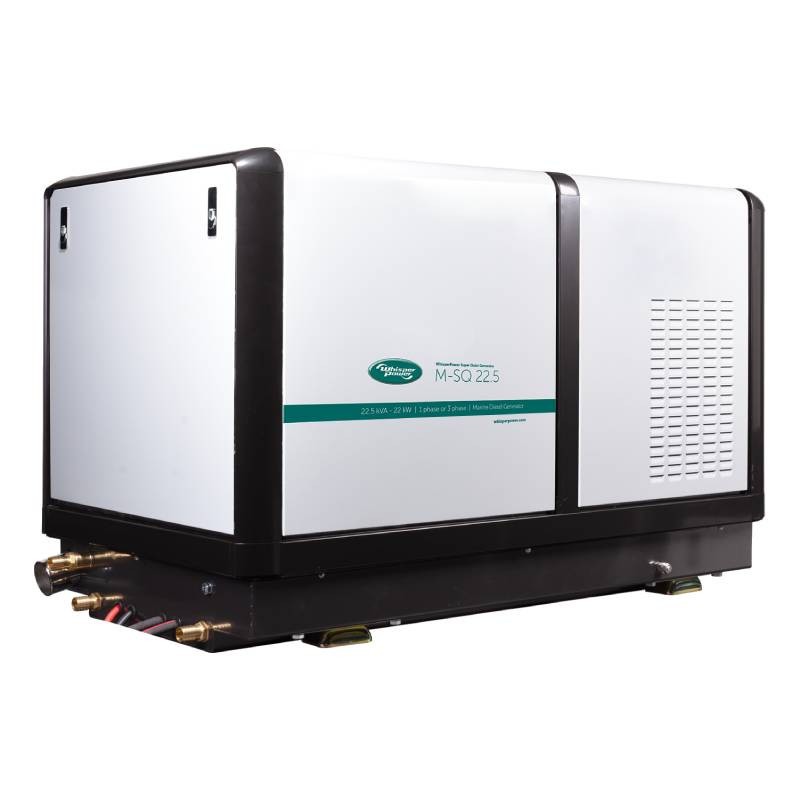

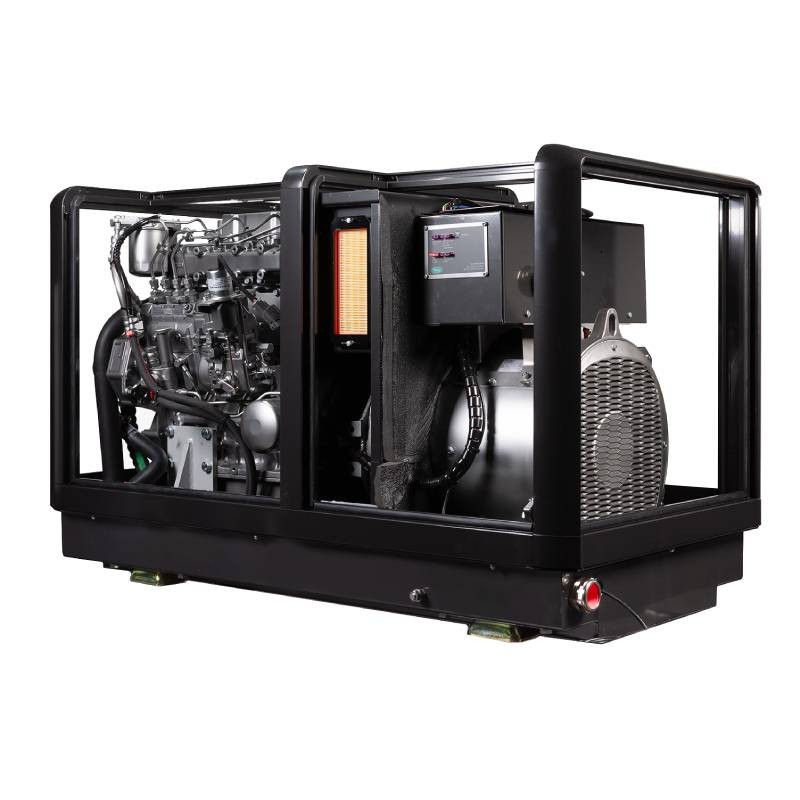

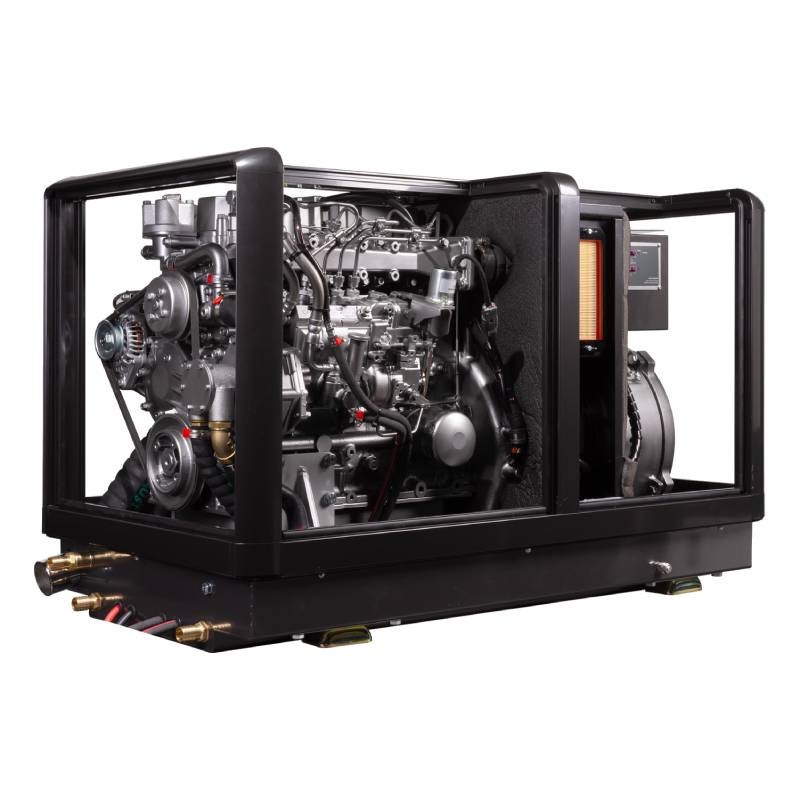

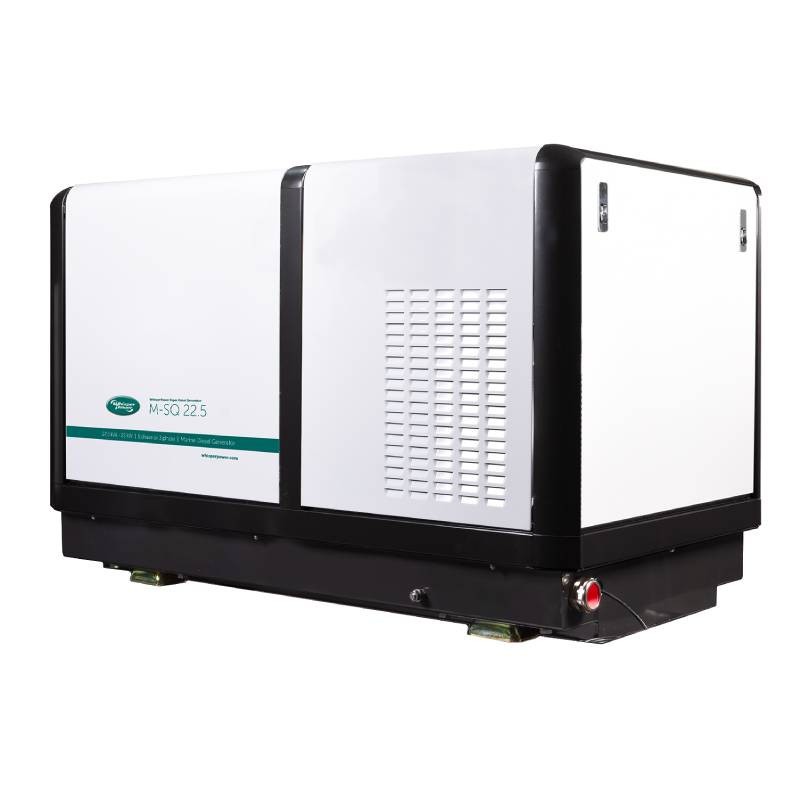

WHISPER M-SQ22,5 MARINE GENERATOR 22KW SINGLE/THREE-PHASE AVR

WHISPER M-SQ22,5 marine generator Single / three-phase marine generator with diesel-powered Mitsubishi S4S engine, delivers a power of 22KW, complete with AVR and EBS voltage regulator.

The WHISPER M-SQ22.5 is designed for the marine generator. equipped as standard with a robust acoustic enclosure with anti-corrosion metal plating and heavy insulation material for optimal sound reduction. Hearing protection is a must. equipped with easy access to all sides of the offers access to all maintenance-related components from one side only.

Thanks to the AVR technology electrical stabilizer that works at very low distortion, WHISPER M-SQ22.5 delivers constant current loads without voltage peaks that could damage electrical and electronic devices. Another advantage of the inverter is; that of working with variable engine revolutions, based on the need; of current to be supplied, optimizing fuel consumption, gas emissions and wear of mechanical parts.

All generators WHISPER M-SQ22.5 are set to automatically operate air conditioning/heating systems, heavy tools, compressors, cookers, lights, refrigeration and cooling systems, computers and more. All at the same time, depending on the load.

VOLTAGE REGULATOR

WHISPER M-SQ22,5  equipped with AVR which, mounted on an alternator, allows a generator set or current marine generator to stabilize the output voltage and does not damage the connected sensitive electronic devices. In the modern market, inverters have made a huge step forward in terms of technology and performance; for this reason the best brands of generator sets and alternators in the world are moving along this line of thought.

Technical characteristics WHISPER M-SQ22.5:

Phase type: Single-phase / Three-phase
Maximum power: 24.7 KVA / 22 KW
Continuous power: 22.5 KVA / 20 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz (60 Hz)
Engine: Mitsubishi S4S - 4 Cylinders
Emissions standard: Not Emissions
Number of cylinders: 4
Engine rpm: 1500/1800 rpm
Sound power: 58 dBA
Fuel consumption: 6 l/h at 100% load
Voltage regulator: AVR + EBS
Length: 1260 mm
Depth: 680 mm
Height: 800 mm
Net weight: 580 Kg

WHISPER M-SQ22.5 is a quiet and reliable 22 kVA marine generator. It is powered by a Kubota D722 Stage V diesel engine and features rugged construction that can withstand the rigors of daily use at sea.

WHISPER M-SQ22.5 ideal product for safety and reliability. Owning a WHISPER M-SQ22.5 marine means making a difference at sea.

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to WHISPER vehicle generators or those of other specialized brands.

Images and non-binding technical data.
