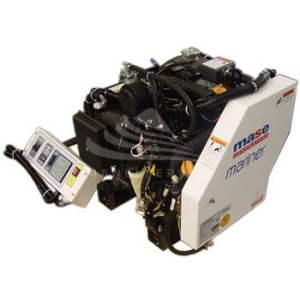

MASE MARINER 1600 SINGLE PHASE MARINE GENERATOR 15.3KW

Name: MASE MARINER 1600 SINGLE PHASE MARINE GENERATOR 15.3KW
Brand: MASE
SKU: MARINER 1600
Price: 24644 EUR
Availability: InStock

Reference MARINER 1600

Phase Type: Single Phase
Maximum Power: 15.3 KW
Continuous Use Power: 13.9KW
Fuel: Diesel
Voltage: 115 - 230 V
Frequency: 50 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Motor: YANMAR 4TNV88, 4 Stroke
Mechanical Power: 24. 5 Hp
Number of Cylinders: 4
Displacement: 1500 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 5. 6 l/h
Length: 1000 mm
Width: 570 mm
Height: 670 mm
Weight: 395 Kg

Prezzo

20,200.00 € tax excl.

24,644.00 € tax incl.

Shipping from 164.70 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 1600

Data sheet

Phase: Single phase
Maximum power single phase (KW): 15.3
Continuous power single phase (KW): 13.9
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine: Yanmar 4TNV88, 4 stroke
Engine rpm (rpm): 1500
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 2190
Number cylinders: 4
Oil capacity (L): 7.4
Cooling: Air
Alternator: Synchronous, self-excited
Poles: 4
Lubrication: Forced
Consumption (L/h): 5.6 at 100% of the load
Length (mm): 1000
Width (mm): 570
Height (mm): 670
Dry weight (Kg): 395
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

MASE MARINER1600 SINGLE PHASE MARINE GENERATOR 15.3KW

MASE MARINER1600 single phase marine generator is equipped with a YANMAR 4TNV88 diesel engine capable of delivering a maximum power of 15.3 KW complete with AVR voltage regulator.

The MASE MARINER1600 marine generator is built with and air-cooled, self-excited synchronous alternator, it is extremely compact and efficient, suitable even on small boats.

The alternator of the MASE MARINER1600is synchronous 4-pole, self-regulated, self-excited, brushless, which in conjunction with the YANMAR engine can deliver a maximum power of 15.3KW. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of auto stop in case of high temperatures detected on the windings.

The MASE MARINER1600 is built with synchronous alternator, self-excited without brushes with air cooling, it is extremely compact and powerful, suitable also for small boats. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the generator, delivering current like the one at home.

Technical Features MASE MARINER1600

Cras efficitur lacus nulla, vitae rutrum urna pharetra in. Phasellus ornare quam vel odio tincidunt posuere. Sed eu orci id orci aliquet pharetra. Cras rhoncus ullamcorper rutrum. Vestibulum et lacus vehicula, mollis lectus a, blandit ante. Quisque vitae tempor nisl. Phasellus scelerisque molestie purus.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
