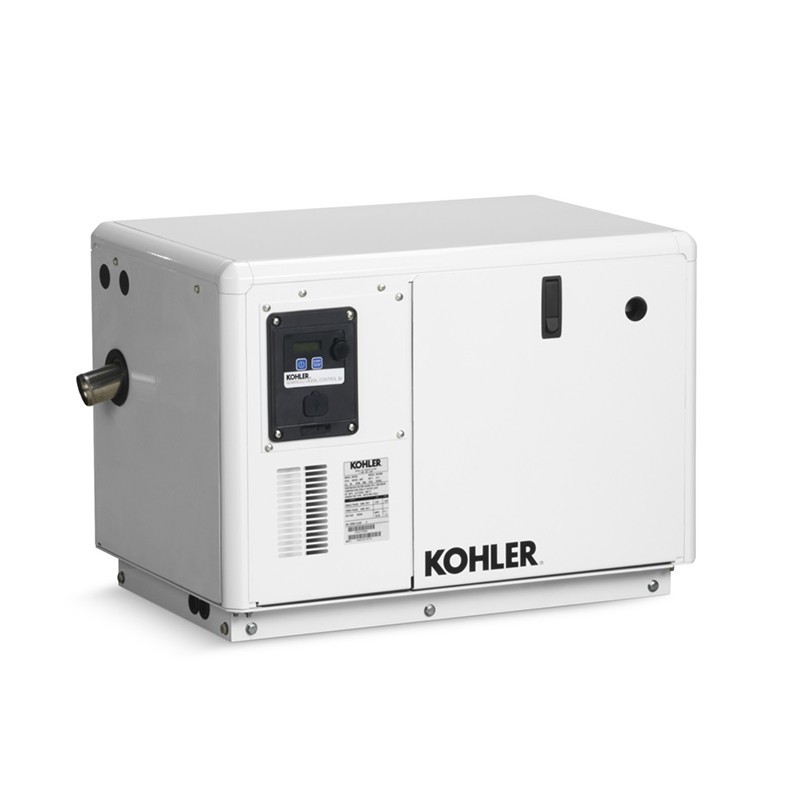

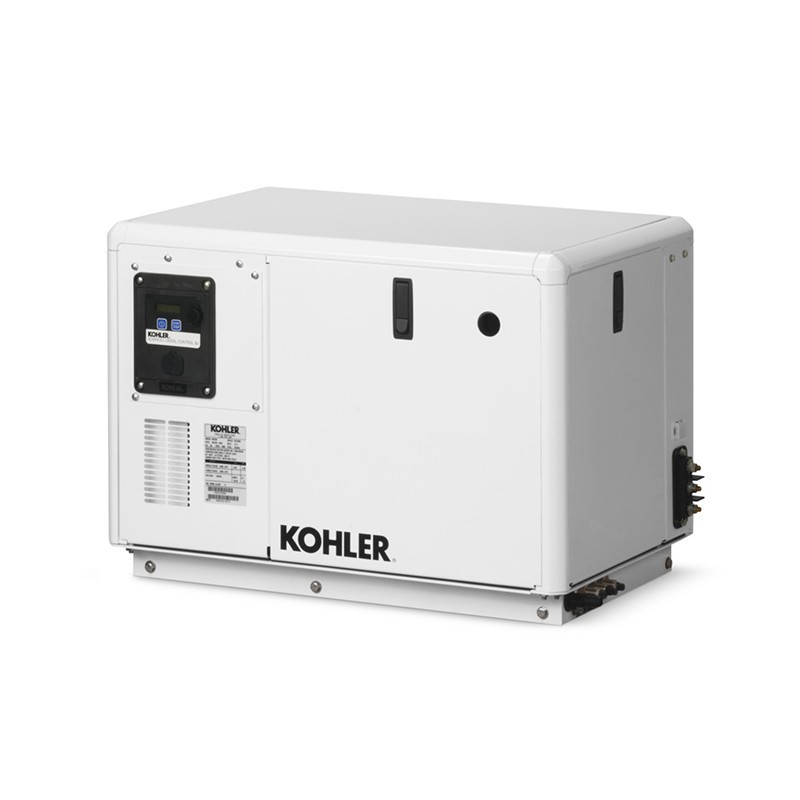

MARINE GENERATOR KOHLER 6EKOD Single-Phase 6 kVA

marine genset 6ekod single phase 6 kva kohler engine
search
  • marine genset 6ekod single phase 6 kva kohler engine
  • marine genset 6ekod single phase 6 kva kohler engine
  • marine genset 6ekod single phase 6 kva kohler engine
KOHLER
6EKOD 120
New product

Phase Type: Single Phase
Power Supply: Diesel
Frequency: 60 Hz
Single-phase continuous power: 6 kW
Single-phase continuous power: 6 kVA
Voltage: Choice of 120 V or 120/240V
Engine KOHLER 3 cylinders
Displacement: 1028 cc.
Revolutions per minute: 1800
Liquid cooling
Consumption at 75%: 1.9 L per minute
Length: 780 mm
Width: 528 mm
Height: 559 mm
Dry weight: 218 Kg
Equipment: group with cabin and muffler
Integrated genset control and voltage regulation

Technical features
Phase
Single phase
Continuous power single phase (KW)
6
Continuous power single phase (KVA)
6
Fuel
Diesel
Frequency (Hz)
60
Engine
4 stroke
Engine rpm (rpm)
1800
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
1028
Number cylinders
3
Oil capacity (L)
2.5
Cooling
Water
Poles
4
Bore x stroke (mm)
75 x 77.6
Compression ratio
24.5 : 1
Motor insulation class
H
Consumption (L/h)
2.3 at 75% of the load
Length (mm)
780
Width (mm)
528
Height (mm)
559
Dry weight (Kg)
218
Silenced
Yes
Super silenced
Yes
Product type
Generator
Voltage regulator
Digital AVR
Engine manufacturer
Kohler
Details

MARINE GENERATOR KOHLER 6EKOD SINGLE-PHASE SUPERSILENCED 6 KVA AVR

Generator Kohler 6EKOD single phase 6 KVA with 1500 rpm motor. The KOHLER 6EKOD single-phase is built with a soundproof enclosure that makes it supersilenced. The KOHLER 6EKOD single-phase marine generator is built with a 3-cylinder, 4-cycle, diesel-powered Kohler engine, closed cooling system with heat exchanger. The alternator of the single-phase KOHLER 6EKOD marine generator is with AVR voltage regulator and with water cooling. The AVR voltage regulator protects your connected sensitive devices from voltage surges. With its small size, the 6EKOD marine generator is also suitable on boats of various sizes.

Engine characteristics of the KOHLER 6EKOD generator

- Diesel
- Certified by the Environmental Protection Agency (EPA) to meet Tier III marine auxiliary standards (60 Hz model only)
- Three cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Lifting eye
-. Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter

Features of the KOHLER 6EKOD marine generator alternator

- - Statically excited rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip tray.
- Equipped with a four-conductor reconnectable stator.

Other marine generators such as the KOHLER 6EKOD can be found by browsing the entire catalog of marine generators.

Non-binding images and technical data.
