MARINE GENERATOR FISCHER PANDA 12-4PMS SUPERSILENCED 12.3 KVA

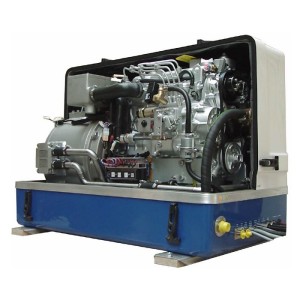

Generator for boats Fischer Panda 12-4PMS single-phase 12.3 KVA with 1500 rpm motor. The Fischer Panda 12-4PMS marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda 12-4PMS generator is built with a Kubota diesel-powered engine. The Fischer Panda 12-4PMS generator alternator is 4-pole with H insulation class. Thanks to its compactness, size and low weight, the Fischer Panda 12-4PMS marine generator is also perfect for installation on boats with tight spaces.

Technical specifications of the Fischer Panda 12-4PMS generator:

Phase Type: Single-phase
Maximum Output: 10.5 kW
Continuous Output: 9.4 kW
Maximum Output: 12.4 kVA
Continuous Output: 11.2 kVA
Frequency: 50 Hz
Voltage: 230 V
Engine rpm: 1500 rpm
Dispacement: 1498 cc.
Cooling: Water
Sound Cover Type: GFK (Glass fibre reinforced polyester)
Sound pressure: 52 dB(A) at 7 m
Length: 950 mm
Width: 515 mm
Height: 670 mm
Dry weight: 315 Kg

Based on the rugged Fischer Panda 12-4PMS generator set, these heavy duty (HD) versions operate at 1500 rpm / 50Hz.
The Fischer Panda 12-4PMS marine generator is enclosed in a super quiet soundproofed capsule.
The generators are heavier than standard PMS generators. They use a heavy-duty diesel engine and because they run at 1500 rpm, they have a 4-wire coil, which also means that the alternator has a heavier 4-pole construction.
The heavy-duty construction and low rpm results in a durable and quiet generator set.

Marine generators AC 50 Hz / 1500 rpm (PMS-HD)

Heavy Duty (HD) at 1500 rpm. Based on this robust marine generator set, these heavy duty versions are enclosed in a super quiet soundproofed capsule.

If you are looking for a marine generator set such as the Fischer Panda 12-4PMS but with different technical specifications then we recommend you take a look at the full range of marine generators.

Images and technical data are not binding.
