GENERATOR FISCHER PANDA 30-4 PMS
      GENERATOR FISCHER PANDA 30-4 PMS
      GENERATOR FISCHER PANDA 30-4 PMS
      GENERATOR FISCHER PANDA 30-4 PMS
      GENERATOR FISCHER PANDA 30-4 PMS

      GENERATOR FISCHER PANDA 30-4 PMS

      FP0014987

      PRODUCT DISCONTINUED<

      Phase Type: Three-phase
      Maximum Output: 25 kW
      Continuous Output: 22.5 kW
      Maximum Output: 29.4 kVA
      Continuous Output: 26.5 kVA
      Frequency: 50 Hz
      Voltage: 400 V
      Engine rpm: 1500 rpm
      Dispacement: 3331 cc.
      Cooling: Water
      Sound Cover Type: MPL 4DS
      Length: 1280 mm
      Width: 740 mm
      Height: 830 mm
      Dry weight: 720 Kg

      Custom Quote
      Product: GENERATOR FISCHER PANDA 30-4 PMS

      PERSONAL DATA


      Ask a question
      Product: GENERATOR FISCHER PANDA 30-4 PMS
      Offer on letterhead
      Product: GENERATOR FISCHER PANDA 30-4 PMS
      FISCHER PANDA
      FP0014987

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      25
      Continuous power three phase (KW)
      22.4
      Maximum power three phase (KVA)
      29.4
      Continuous power three phase (KVA)
      26.5
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine
      Mitsubishi S4S
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Starting system
      Elettrico
      Engine capacity (cm³)
      3331
      Number cylinders
      4
      Cooling
      Water
      Poles
      4
      Motor insulation class
      H
      Length (mm)
      1280
      Width (mm)
      740
      Height (mm)
      830
      Dry weight (Kg)
      720
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      Capacitor
      Engine manufacturer
      Mitsubishi

      Specific References

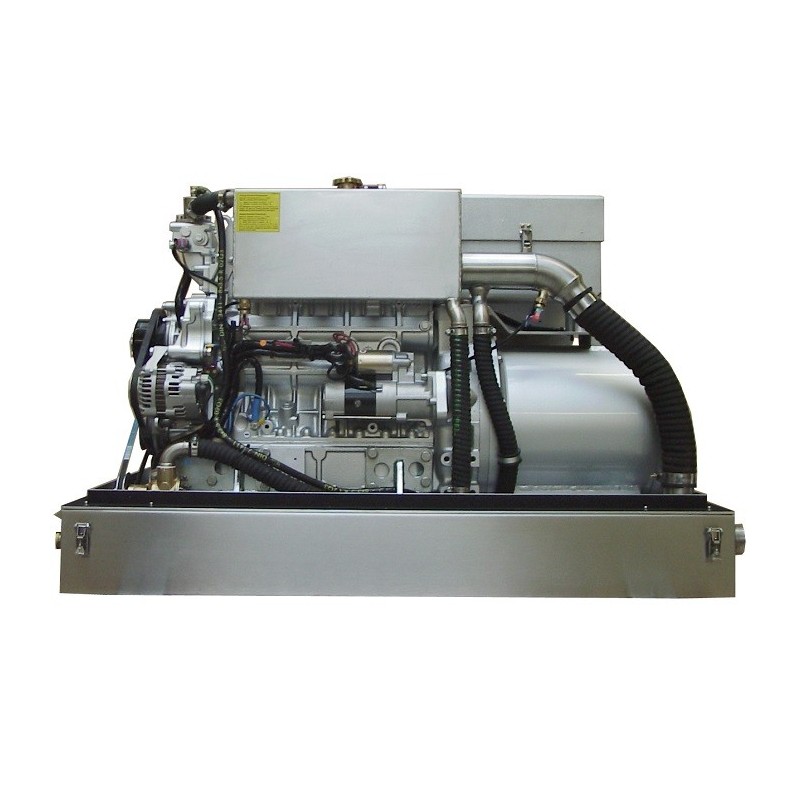

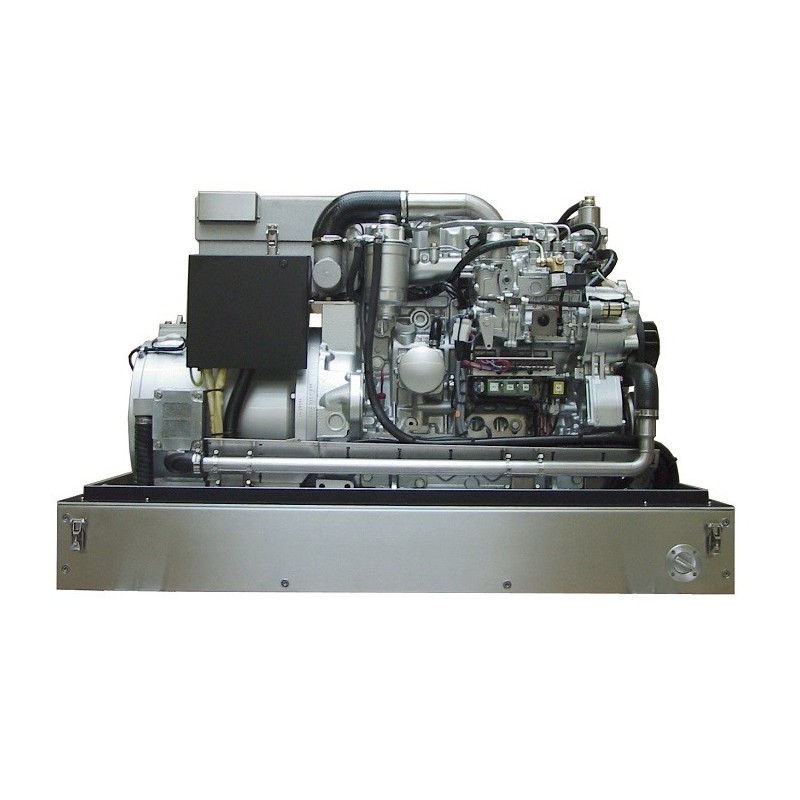

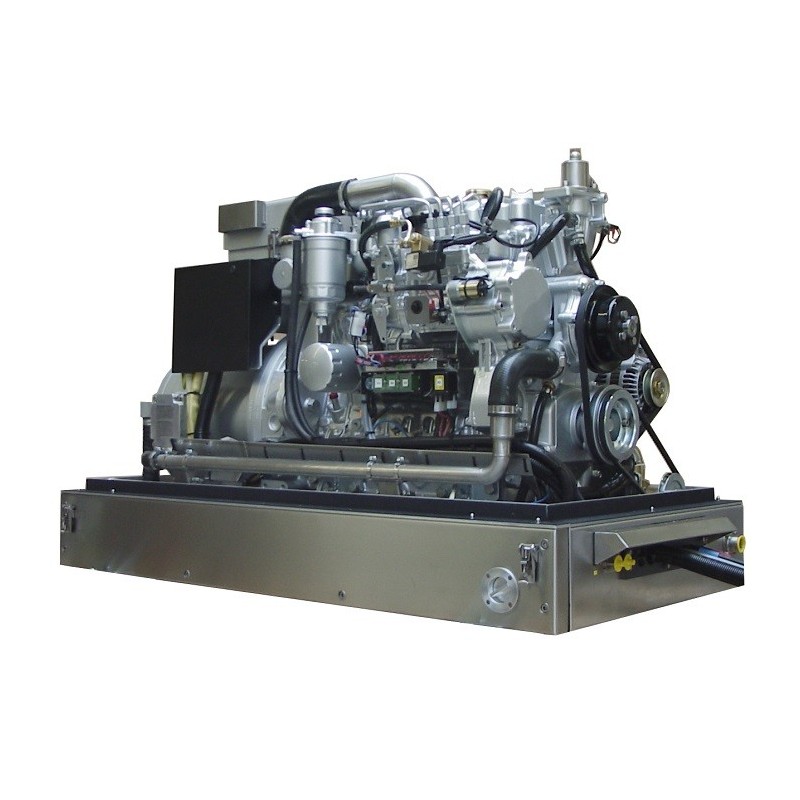

      MARINE GENERATOR FISCHER PANDA 30-4PMS SUPERSILENCED 29.4 KVA

      Generator for boats Fischer Panda 30-4PMS three-phase 29.4 KVA with 1500 rpm motor. The Fischer Panda 30-4PMS three-phase marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda 30-4PMS three-phase generator is built with a diesel-powered Mitsubishi engine. The Fischer Panda 30-4PMS three-phase generator alternator is 4-pole with H insulation class. Thanks to its compactness, size and low weight, the Fischer Panda 30-4PMS three-phase marine generator is also suitable to be mounted on boats with little space available.

      Fischer Panda 30-4PMS marine generator:

      Phase Type: Three-phase
      Maximum Output: 25 kW
      Continuous Output: 22.5 kW
      Maximum Output: 29.4 kVA
      Continuous Output: 26.5 kVA
      Frequency: 50 Hz
      Voltage: 400 V
      Engine rpm: 1500 rpm
      Dispacement: 3331 cc.
      Cooling: Water
      Sound Cover Type: MPL 4DS
      Length: 1280 mm
      Width: 740 mm
      Height: 830 mm
      Dry weight: 720 Kg

      Based on the robust and compact Fischer Panda 30-4PMS generator set, these heavy duty (HD) versions run at 1500 rpm and 50 Hz.
      The Fischer Panda 30-4PMS marine generator is enclosed in a soundproofed capsule which significantly reduces noise emissions and makes this product super-silent.
      The generators are heavier than standard PMS generators. They use a heavy-duty diesel engine and, because they run at 1500 rpm, have a 4-wire coil, which also means that the alternator has a heavier 4-pole construction.
      The heavy-duty construction and low rpm results in a durable and quiet generator set.

      On our website you can find other marine generators such as the Fischer Panda 30-4PMS with different specifications. Browse the entire catalogue of marine generators to find the one best suited to your needs. On our catalogue you can find a wide range of marine products at the best price.

      Images and technical data are not binding.

      ""
