MASE IS 9.6 MARINE GENERATOR SINGLE PHASE 9.6KW EPA

Reference 002726

Phase Type: Single Phase
Continuous Use Power: 8.8KW
Maximum Power: 9. 6KW
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Engine: Kubota Z722, 4 Strokes
Mechanical Power: 20 Hp
Number of Cylinders: 3
Displacement: 479 cc
Bore x Stroke: 67 x 68 mm
RPM Regulator: Mechanical Centrifugal
Engine RPM: 3600 rpm
Acoustic Power: 56 dBA @ 7 m
Length: 730 mm
Width: 468 mm
Height: 555 mm
Weight: 185 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 002726

Data sheet

Phase: Single phase
Maximum power single phase (KW): 9.6
Continuous power single phase (KW): 8.8
Maximum power single phase (KVA): 9.6
Continuous power single phase (KVA): 8.8
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: KUBOTA D722, 4 stroke
Engine rpm (rpm): 3600
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 719
Number cylinders: 3
Oil capacity (L): 3.8
Cooling: Air / water (Intercooler W/A)
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 2
Lubrication: Forced
Consumption (L/h): 3.9 at 100% of the load
Acoustic pressure: 56 dB(A) at 7 m
Length (mm): 730
Width (mm): 468
Height (mm): 555
Dry weight (Kg): 185
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Specific References

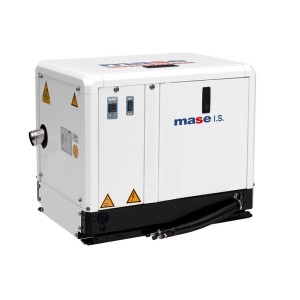

MASE IS 9.6 SINGLE PHASE MARINE GENERATOR 9,6KW

MASE IS9,6 single phase marine generator with KUBOTA Z722 engine with diesel power supply at 3600 rpm capable of delivering a power of 9,6KW.

The MASE IS9,6 marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS9,6 is built with Kubota diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS9.6.

The soundproof cabin of the MASE IS9,6 consists of a supporting structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

The cooling of the motor occurs through the circulation of coolant in a closed circuit. The system is composed of a cupronickel exchanger, inside which the heat exchange between coolant and sea water takes place. Two separate pumps circulate the coolant and seawater. The cooling of the air, circulating inside the generating set, is obtained through a sea water/air heat exchanger. The air flows guarantee an effective cooling of the alternator and the achievement of an optimal temperature for the performance and reliability of the machine. This system has the advantage of guaranteeing the best operating conditions of the generator set regardless of the ambient temperature of the accommodation compartment.

The MASE IS9.6 marine generator has EPA certification valid only for the U.S. market.

Technical features:
Maximum power: 9.6 KW
Continuous use power: 8.8 KW
Fuel: Diesel
Voltage: 120 V / 240 V
Frequency: 60 Hz
Motor: KUBOTA D722
Consumption: 3. 9 Lt/h at 100% load
Length: 730 mm
Width: 468 mm
Height: 555 mm
Weight: 185 Kg

If you are looking for another generator like the MASE IS9.6 then you can browse the entire catalog of marine gensets .

Images and technical data are not binding.
