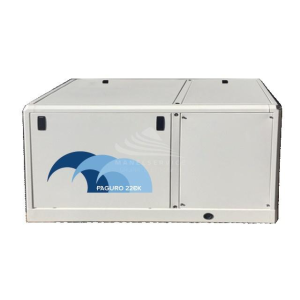

PAGURO22EK marine VTE Supersilenced 22 KVA generator set

PAGURO22EK marine Genset VTE single-phase 22 KVA t with Kohler diesel-powered 1500 rpm engine and water-cooled with stainless steel water/air heat exchanger.

To prevent damage to parts in contact with seawater, the components are all made of 316 L stainless steel.
The noise emissions of 53 dB(A) of the VTE PAGURO22EK marine genset are reduced to a minimum because it is water-cooled and has a double anti-vibration system, making it one of the quietest of its kind.
The VTE PAGURO22EK marine genset with 1500 rpm motor is compact and space-saving and is suitable for use on medium-sized boats, excellent for powering your boat in complete peace of mind.

The PAGURO22EK Marine Generating Set is the ideal solution for anyone looking for a reliable, efficient and quiet  generator set. It is perfect for powering all the electrical consumers on a medium-sized boat, from auxiliary engines to navigation systems, on-board services and household appliances.

Technical specifications:
Fuel: Diesel
Engine revs (rpm): 1500
Phase type: Single-phase
Single-phase continuous power (KVA): 22
Frequency (Hz): 50
Voltage (V): 230
Motor: KOHLER KDI 2504 M
Starter: Electric
Silenced: Supersilenced 53 dB(A)
Cooling: Fresh water with heat exchanger
Dry weight (kg): 620
Length (mm): 1224
Width (mm): 710
Height (mm): 828
AVR

Engine
The diesel-powered Kohler engine makes the PAGURO22EK marine genset efficient and reliable.
Designed with stainless steel water/air heat exchanger.


Alternator
The PAGURO22EK's alternator is synchronous, brushless and with class H insulation. The AVR voltage regulator stabilises the voltage and makes the PAGURO22EK marine genset perfect for powering even the most sensitive electronic devices and devices that fear voltage and current fluctuations.
It is also freshwater cooled via an AISI 316 L stainless steel heat exchanger.
Included with the alternator is the battery charger for the dedicated 12 V / 8 A starter battery.
The PAGURO22EK marine VTE generator set is ideal for medium-sized boats. With an output of 22 KVA and a noise emission level of only 53 dB(A), the PAGURO22EK Marine VTE Genset is the perfect solution for those looking for a reliable, efficient and quiet product.

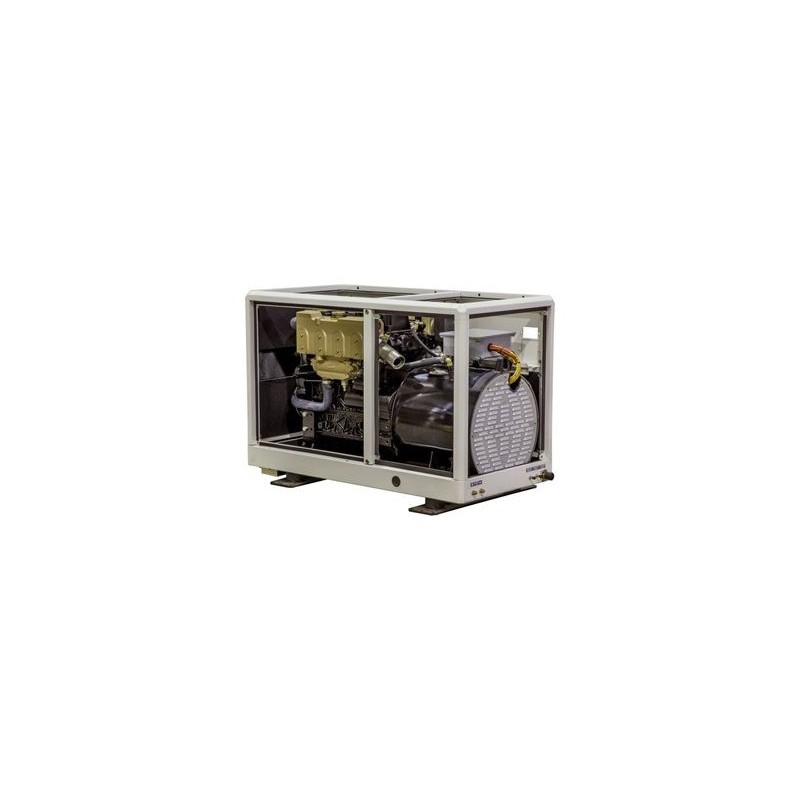

Soundproofing capsule and double anti-vibration system
The reinforced fibreglass capsule with composite layering and the high-density soundproofing material coating make this genset one of the quietest compared to its competitors.
The capsule allows installation even in cramped spaces, thanks to its composition: two upper parts and one lower part.
Finally, the dual anti-vibration system, with 4 soft inner mounts and 4 semi-elastic outer mounts, makes the PAGURO22EK stable even in less calm waters and silenced, so you can enjoy your navigation without additional worries.

If you are looking for a different kind of product, you can consult our entire catalogue of marine gensets click HERE.


Non-binding images and technical data.
