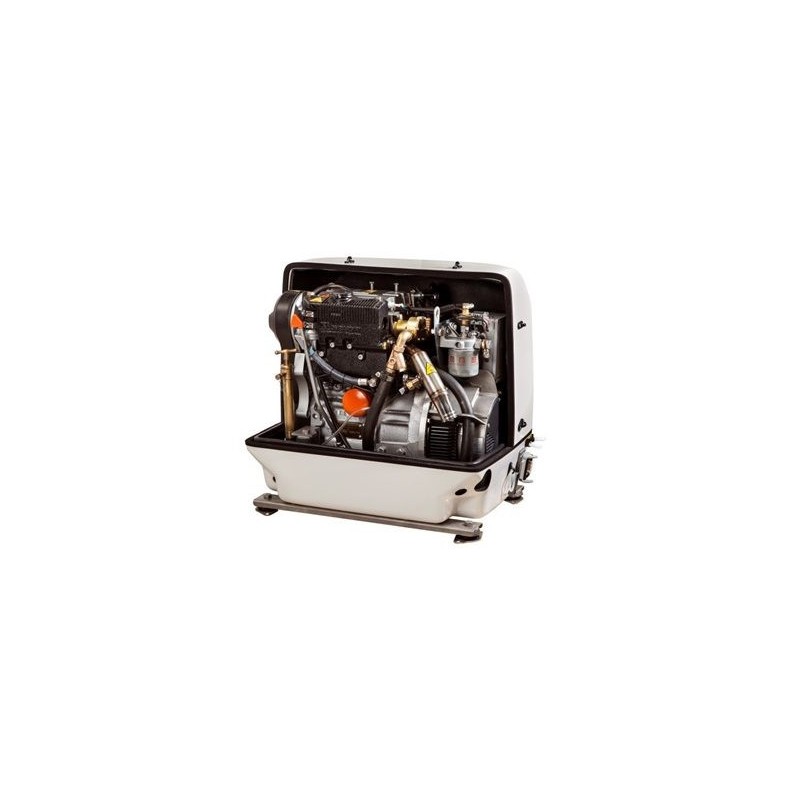

PAGURO9000V VTE Super-silenced Marine Generator Set 9 KVA

PAGURO9000V VTE 9 KVA single-phase silenced marine genset with a Lombardini diesel-powered engine with variable speed from 2000 to 3000 rpm and fresh water cooling with heat exchanger.
The noise emissions of the VTE PAGURO9000V marine, which range from 50 to 53 dB(A), are reduced to a minimum as it is built with freshwater cooling and a double anti-vibration system, making it one of the quietest in its category.
The PAGURO9000V VTE single-phase marine genset with variable speed motor from 2000 to 3000 from 1500 rpm is compact and space-saving and is suitable for use on various types of boats, excellent for powering your boat in complete peace of mind.

Technical characteristics:
Fuel: Diesel
Engine revs (rpm): 2000 - 3000
Phase type: Single-phase
Single-phase continuous power (KVA): 9
Frequency (Hz): 50
Voltage (V): 230
Engine: Lombardini LDW 702
Starter: Electric
Silenced: Supersilenced 50 - 53 dB(A)
Cooling: Fresh water with heat exchanger
Dry weight (kg): 165
Length (mm): 660
Width (mm): 460
Height (mm): 620

Engine
The Lombardini diesel-powered engine makes the PAGURO9000V VTE marine efficient and reliable.
Designed with fresh water cooling by heat exchanger.
Alternator
The alternator has permanent magnets and class H insulation. The Paguro9000's voltage regulator stabilises the voltage and makes the PAGURO9000V VTE marine genset perfect for powering even the most sensitive electronics and devices that fear voltage and current fluctuations.
It is also air-cooled.
Included with the PAGURO9000V VTE alternator is the battery charger for the dedicated 12 V / 8 A starter battery.


Soundproofing capsule and double anti-vibration system
The reinforced fibreglass capsule with composite layering and high-density soundproofing material coating make this genset one of the most silent compared to its competitors.
The capsule allows installation even in cramped spaces, thanks to its composition: two upper parts and one lower part.
Finally, the dual anti-vibration system, with 4 soft inner mounts and 4 semi-elastic outer mounts, makes the PAGURO9000V stable even in less calm waters and silenced, so you can enjoy your navigation without further worries.

If you are looking for the PAGURO9000 Generating Set or another kind of product, you can browse our entire catalogue of marine generating sets click HERE.

Non-binding images and technical data.
