      MASE IS 28.06 K

      Phase Type: Single Phase
      Maximum Power: 30KW
      Fuel: Diesel
      Voltage: 120 / 240 V
      Frequency: 60 Hz
      Engine: KUBOTA V3300, 4 Stroke
      Mechanical Power: 47. 3 Hp
      Number of cylinders: 4
      Displacement: 3318 cc
      RPM controller: Electronic
      Engine speed: 1800 rpm
      Acoustic power: 54 dBA @ 7 m
      Length: 1260 mm
      Width: 640 mm
      Height: 830 mm
      Weight: 630 Kg

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      MASE IS 28.06 K

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      30
      Fuel
      Diesel
      Frequency (Hz)
      60
      Voltage (V)
      120 / 240
      Engine
      KUBOTA V3300-BG
      Engine rpm (rpm)
      1800
      Speed governor
      Electronic
      Engine capacity (cm³)
      3318
      Number cylinders
      4
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Indirect
      Alternator
      Synchronous, self-excited
      Poles
      4
      Lubrication
      Forced
      Consumption (L/h)
      13 at 100% of the load
      Acoustic pressure
      54 dB(A) at 7 m
      Length (mm)
      1260
      Width (mm)
      640
      Height (mm)
      830
      Dry weight (Kg)
      630
      Inverter
      No
      AVR
      Yes
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes

      Specific References

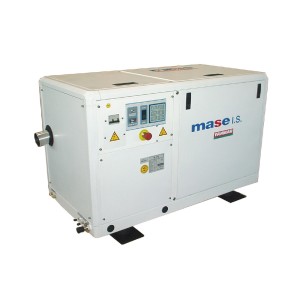

      MASE IS 28.06 K SINGLE PHASE MARINE GENERATOR 30KW

      MASE IS28,06K single-phase marine generator with KUBOTA V3300 engine with diesel power supply at 1800 rpm capable of delivering a power of 30KW.

      The MASE IS28,06K marine generator is designed with a soundproof cabin that makes it supersilenced. The MASE IS28,06K is built with Kubota diesel-powered engine and synchronous alternator, self-excited with air/water cooling. With its small size, it is also suitable on small boats.

      The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS28,06K.

      The soundproof cabin of the MASE IS28,06K is made up of a bearing structure in aluminum profile that supports panels in marine aluminum painted type 5754 extremely light and of very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance easier even with the genset installed in narrow spaces.

      The MASE IS28.06K marine generator has EPA certification valid only for the American market.

      Technical Features:
      Phase Type: Single Phase
      Maximum Power: 30KW
      Fuel: Diesel
      Voltage: 120 / 240 V
      Frequency: 60 Hz
      Motor: KUBOTA V3300, 4 Stroke
      Length: 1260 mm
      Width: 640 mm
      Height: 830 mm
      Weight: 630 Kg

      If you are looking for another generator as the MASE IS28,06K then you can see the entire catalog of marine generator sets.

      Images and technical data are not binding.
