VTE PAGURO14000 60 Hz super-silenced 16 KVA EPA

VTE PAGURO14000 60 Hz supersilenced 16 KVA marine genset is a 16 KVA single-phase marine genset with a Lombardini diesel-powered 3000 rpm engine and water-cooled with stainless steel water/air heat exchanger.
All parts in contact with seawater are made of 316 L stainless steel.
Thanks to the water cooling and the double anti-vibration system, vibrations are reduced to a minimum, making the VTE PAGURO14000 60 Hz marine genset supersilenced and among the lowest noise emission marine gensets in its category.
The compact and space-saving VTE PAGURO14000 60 Hz marine genset is suitable for use on small boats, ready to give you all the power you need in complete peace of mind. VTE Paguro14000 is a reliable and silent marine genset, ideal for use on small boats. VTE Paguro14000 genset is equipped with an overload protection system, which protects it from damage in the event of an overload.

Technical characteristics VTE Paguro14000
Fuel: Diesel
Engine revs (rpm): 3600
Phase type: Single-phase
Single-phase continuous power (KVA): 16
Frequency (Hz): 60
Voltage (V): 230
Engine: Lombardini LDW 1003
Starter: Electric
Silenced: Supersilenced 54 dB(A)
Cooling: Fresh water with heat exchanger
Dry weight (kg): 210
Length (mm): 860
Width (mm): 580
Height (mm): 650

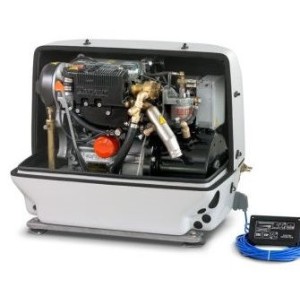

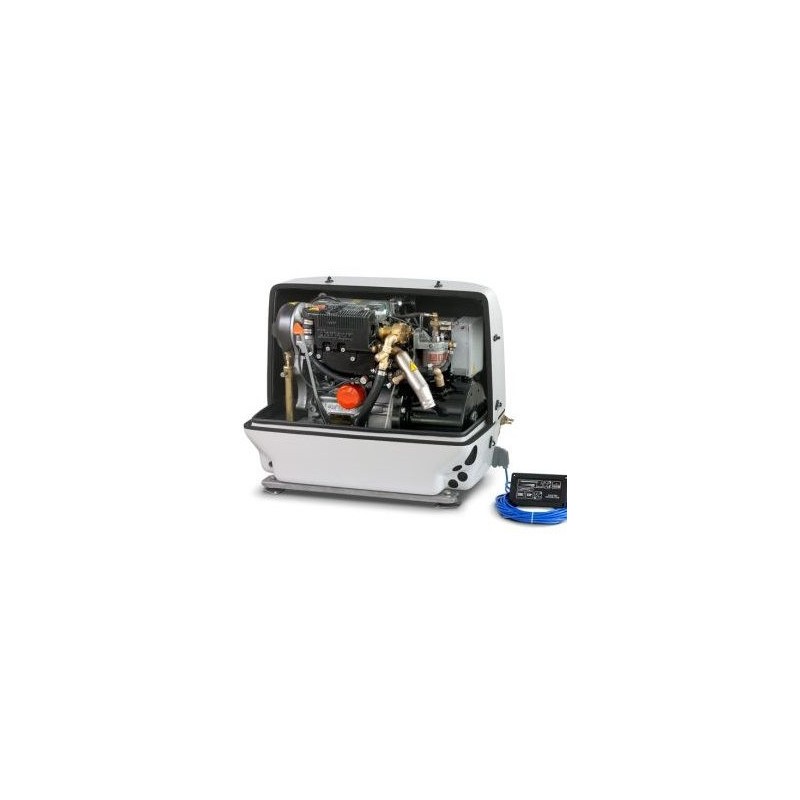

Engine
The Lombardini engine of the diesel-powered VTE PAGURO14000 60 Hz supersilenced 16 KVA marine genset makes it efficient and reliable. Designed with stainless steel water/air heat exchanger.

Alternator
The alternator is synchronous, brushless and with class H insulation. The capacitor regulation makes the VTE PAGURO14000 60 Hz super-silent 16 KVA generator set excellent for powering sensitive electronic devices that fear voltage and current surges.
In addition, this alternator is water-cooled via an AISI 316 L stainless steel heat exchanger.
Included with the alternator is the battery charger for the dedicated 12 V / 8 A starter battery.
VTE Pauro14000 genset is mounted on a stainless steel frame, making it robust and corrosion-resistant. The genset is also equipped with an exhaust system that reduces operating noise. VTE Paguro14000 which guarantees reliable and long-lasting operation. The generator is 60 Hz synchronous, i.e. it produces electric current with a constant frequency

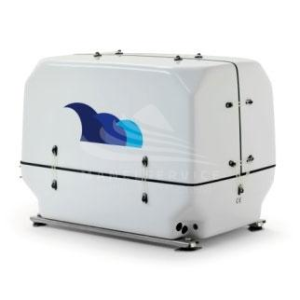

Soundproofing capsule and double anti-vibration system
The reinforced fibreglass capsule with composite layering and the high-density soundproofing material coating make this marine genset one of the most silent compared to its competitors.
The pod allows installation even in cramped spaces, thanks to its composition: two upper parts and one lower part.
Finally, the double anti-vibration system, internal with 4 soft mounts and external with 4 semi-elastic mounts, makes the VTE PAGURO14000 stable even in less calm waters and silenced, so you can enjoy your navigation without further worries.

Are you looking for a product like the VTE PAGURO14000 60 Hz super-silenced 16 KVA generator? You can find the complete range: click HERE. This range of marine generators from VTE are the market benchmark for the optimal ratio between performance, silence and small size.

Non-binding images and technical data.
