MASE MARINER3400T THREE-PHASE MARINE GENERATOR 36,2KVA

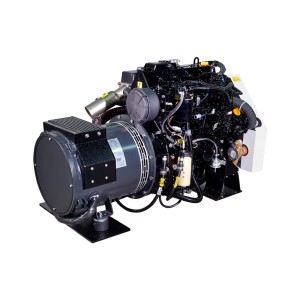

MASE MARINER3400T three-phase marine generator equipped with YANMAR 4TNV98 engine with Diesel power supply, able to deliver a maximum power of 36,2KVA, complete with AVR.

The MASE MARINER3400T is built with and synchronous alternator, self-excited with air cooling, it is extremely compact, suitable even on small boats.

The alternator of the MASE MARINER3400T is 4-pole synchronous, self-regulated, self-excited, brushless, which in conjunction with the YANMAR engine can deliver a maximum power of 36,2KVA. The rotor and the stator are coated with epoxy paint to prevent the attack of atmospheric agents, in addition it is equipped with safety systems of self-stop in case of high temperatures detected on the windings. The alternator is complete with AVR voltage regulator that ensures the stability of the voltage delivered by the marine generator, delivering current like the home one.

The control panel of the marine generator MASE MARINER3400T has been designed in order to reduce, in a single panel, the commands, controls and protections. The elements that compose it are:

- Engine protection module for automatic shutdown in case of high water temperature, low oil pressure, high alternator temperature;
- Hour meter;
- Circuit breaker for protection in case of overload or short circuit;
- Thermal circuit breaker for protection of DC circuit.

TECHNICAL FEATURES MASE MARINER3400T:

Phase Type: Three Phase
Maximum Power: 36.2 KVA / 29 KW
Continuous Use Power: 33.7 KVA / 27 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Alternator: Synchronous, 4 Pole
Voltage Regulator: AVR
Motor: YANMAR 4TNV98, 4 Stroke
Mechanical Power: 47 Hp
Number of Cylinders: 4
Displacement: 3319 cc
RPM Regulator: Mechanical Centrifugal
Engine RPM: 1500 rpm
Fuel Consumption: 10.8 l/h
Length: 1202 mm
Width: 590 mm
Height: 753 mm
Weight: 565 Kg

Looking for a marine generator with different technical features? Here you can find the full range of marine generators MASE or other specialized Brands.

Images and technical data are not binding.
