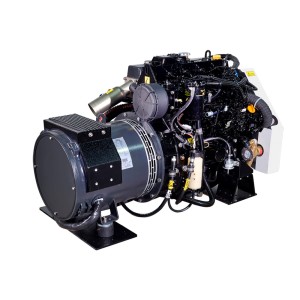

MASE MARINER 2806 K SINGLE PHASE MARINE GENERATOR 30KW EPA

Reference MARINER 2806 K EPA

Phase Type: Single Phase
Maximum Power: 30 KW
Fuel: Diesel
Voltage: 120 - 240 V
Frequency: 60 Hz
Alternator: Synchronous, 4-pole Brushless
Voltage Regulator: AVR
Motor: KUBOTA V3300, 4 Stroke
Emission Standard: EPA
Mechanical Power: 47. 3 Hp
Number of cylinders: 4
Displacement: 3318 cc
RPM controller: Electronic
Engine speed: 1800 rpm
Fuel consumption: 13 l/h
Length: 1250 mm
Width: 630 mm
Height: 820 mm
Dry weight: 620 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MARINER 2806 K EPA

Data sheet

Phase: Single phase
Maximum power single phase (KW): 30
Fuel: Diesel
Frequency (Hz): 60
Voltage (V): 120 / 240
Engine: KUBOTA V3300
Emissions Regulations: EPA
Engine rpm (rpm): 1800
Speed governor: Electronic
Engine capacity (cm³): 3318
Number cylinders: 4
Inyección: Indirect
Alternator: Synchronous, self-excited
Poles: 4
Consumption (L/h): 13 at 100% of the load
Length (mm): 1250
Width (mm): 630
Height (mm): 820
Dry weight (Kg): 620
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Voltage regulator: AVR

Specific References

MASE MARINER 2806 K SINGLE-PHASE MARINE GENERATOR 30KW EPA

MASE MARINER2806K single phase marine generator is equipped with a KUBOTA V3300 engine that complies with EPA regulations, powered by diesel capable of delivering a maximum power of 30 KW at 1800 rpm.

The MASE MARINER2806K is built with and synchronous alternator, self-excited with air cooling, is extremely compact and powerful, suitable even on small boats.

The MASE MARINER2806K alternator is a 4-pole synchronous, self-regulated, self-excited, brushless alternator, which in combination with the powerful KUBOTA engine can deliver a maximum power of 30KW. An AVR voltage regulator is indispensable to make the latest generation of synchronous generators work at their best. We are talking about alternating current electric motors, whose rotation speed is synchronized with the electric frequency. The voltage regulator, applied to synchronous current generators, has as its objective the maintenance of a constant operation of the machine, in its regime of greater efficiency.

The cooling of the engine of the MASE MARINER2806K takes place by circulating coolant in a closed circuit. The system is composed of a cupronickel exchanger, inside of which the heat exchange between coolant and sea water takes place. Two separate pumps provide for the circulation of the coolant and seawater in the generator MASE MARINER2806K .

The MASE MARINER2806K Marine Generator has EPA Certification and is valid only for the US market.

TECHNICAL FEATURES MASE MARINER2806K

Sed placerat mauris ut blandit porta. Duis at justo nec velit pretium placerat. Nulla non blandit massa. Vestibulum metus ex, pellentesque at maximus id, pulvinar nec massa. Sed tellus leo, eleifend consequat turpis nec, gravida fermentum metus. Morbi scelerisque ex vitae ipsum tincidunt tempor. Vestibulum rhoncus ultrices semper. Integer elementum augue congue augue luctus venenatis. Nam tincidunt est

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
