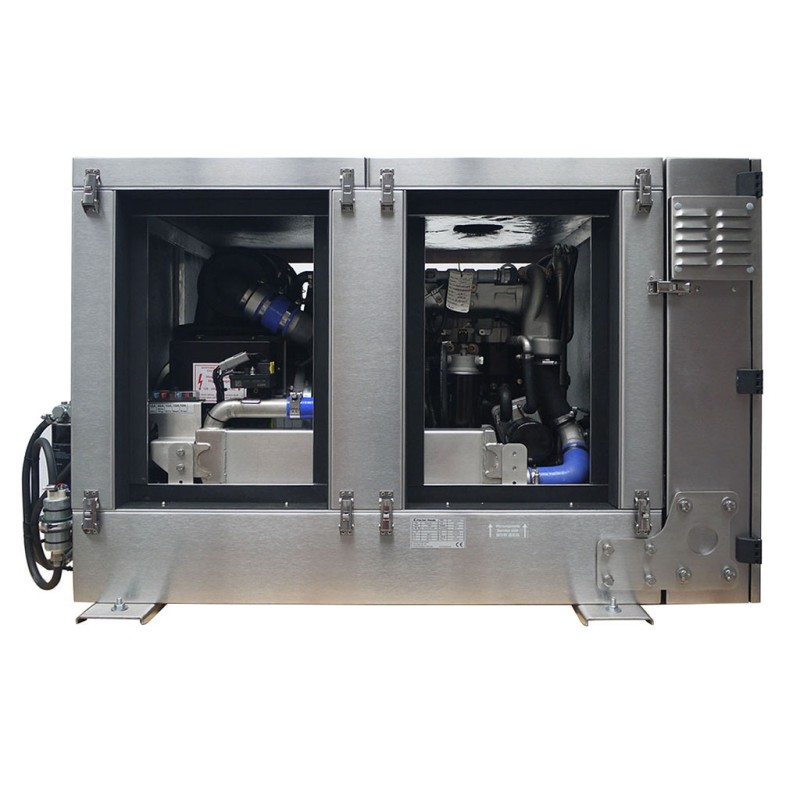

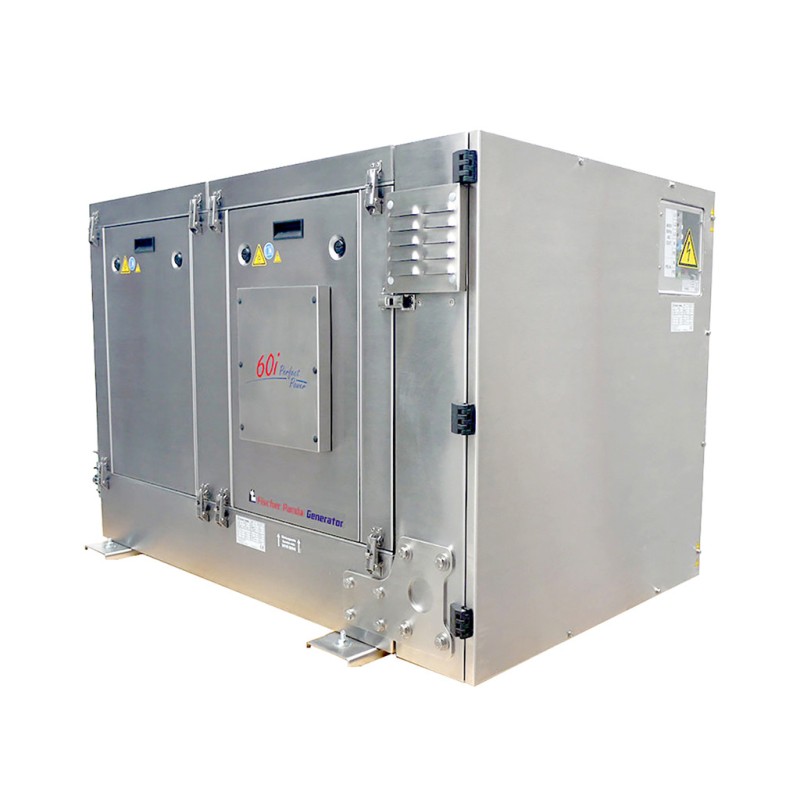

FISCHER PANDA 60i Generating Set 400V Inverter Three-Phase Sea 48kW

FISCHER PANDA 60i MARINE GENERATOR 400V THREE-PHASE INVERTER 60kVA 48kW

The FISCHER PANDA 60i Marine Generator 400V Three-Phase Inverter is designed to be compact, quiet, and powerful, offering up to 30% savings in weight and space! The Fischer Panda 60i marine generator is ideal for yacht owners who require low noise and vibration levels.

The Fischer Panda 60i marine generator stands out for its modern, innovative, and environmentally friendly inverter technology.

The diesel engine speed is adjusted according to the user’s power needs, while the inverter output voltage remains constant.
The variable speed control significantly reduces exhaust emissions and fuel consumption compared to a traditional fixed-speed generator.
The maximum engine speed of the Fischer Panda 60i three-phase marine generator is 2800 rpm. The electrical load is supplied with a constant output voltage of 230 V / 50 Hz or 120 V / 60 Hz through an inverter.

Technical Features FISCHER PANDA 60i:
Phase Type: Three-phase
Max Three-Phase Power: 0–48 kW
Continuous Three-Phase Power: 0–43.2 kW
Max Three-Phase Power: 0–60 kVA
Continuous Three-Phase Power: 0–54 kVA
Frequency: 50 Hz
Voltage: 400 V
Engine Speed: 1500–2800 rpm
Displacement: 1952
Cooling: Water
Soundproofing: MPL 6DS (4-layer steel)
Sound Pressure: 55 dB(A) at 7 m
Inverter
Length: 1430 mm
Width: 720 mm
Height: 880 mm
Dry Weight: 670 kg

– Compact size and reduced weight – easy installation
– Highly efficient – maximum power
– Variable speed depending on the load
– 230 V AC output – reliable power supply
– Pure sine wave, ideal for sensitive electronics
– High starting capacity for air conditioners/compressors
– Easy installation – no forced air circulation required in the engine room
– Eco-friendly – low fuel consumption
– Optional CAN SAE J1939 interface

The FISCHER PANDA 60i is equipped with renowned Fischer Panda sound insulation and water cooling.

The new FISCHER PANDA 60i marine generator fully utilizes modern diesel engines designed to operate at lower speeds and meet current emission standards.

Compact Design

The reduced weight and compact size of the 60i marine generator allow for installation in very tight spaces.

– Lightweight
– Compact design
– Requires minimal installation space

New iControl2 Panel and Engine Controller

Designed by Fischer Panda for iSeries generators. The control panel allows the generator to be operated from the cabin and displays current status and technical data. The new panel is compact and can be installed on small dashboards.

Digital Display

The new iControl2 can record and read more data.

Automatic start function allows the generator to start via an external electric signal. For example: a battery monitoring module can measure the battery level and trigger the Fischer Panda i-generator to start automatically if it falls below a preset value.

If you’re looking for a marine generator similar to the FISCHER PANDA 60i, check out our full catalog of marine generators.

Images and technical data are not binding. Please always consult the technical data sheet issued by the manufacturer. Manel Service accepts no liability for any changes made by the manufacturer.
