MASE VS 15.5 SINGLE PHASE MARINE GENERATOR 15KW EPA
      MASE VS 15.5 SINGLE PHASE MARINE GENERATOR 15KW EPA
      MASE VS 15.5 SINGLE PHASE MARINE GENERATOR 15KW EPA
      MASE VS 15.5 SINGLE PHASE MARINE GENERATOR 15KW EPA

      MASE VS 15.5 SINGLE PHASE MARINE GENERATOR 15KW EPA

      VS 15.5

      Phase Type: Single Phase
      Power continuous use: 15 KW
      Fuel: Diesel
      Voltage: 230 V / 240 V
      Frequency: 50/60 Hz
      Engine: Kubota D1105-E4, 4 Strokes
      Mechanical power: 24.8 Hp
      Number of cylinders: 3
      Displacement: 1123 cc
      Emissions regulation: EPA
      Bore x stroke: 78 x 78.4 mm
      Speed governor: Electric with actuator
      Engine rpm: 2100 ÷ 3150 rpm
      Acoustic power: 56 dBA @ 7 m
      Length: 800 mm
      Width: 514 mm
      Height: 647 mm
      Weight: 235 Kg

      Prezzo
      32,635.00 € tax incl.
      26,750.00 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      VS 15.5

      Data sheet

      Phase
      Single phase
      Continuous power single phase (KW)
      15
      Continuous power single phase (KVA)
      15
      Fuel
      Diesel
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 240
      Engine
      KUBOTA D1105-E
      Engine rpm (rpm)
      2100 ÷ 3150
      Speed governor
      Electronic
      Engine capacity (cm³)
      1123
      Number cylinders
      3
      Oil capacity (L)
      5.1
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Indirect
      Alternator
      Permanent magnets
      Bore x stroke (mm)
      78 x 78.4
      Lubrication
      Forced
      Acoustic pressure
      54 dB(A) at 7 m
      Length (mm)
      800
      Width (mm)
      500
      Height (mm)
      615
      Dry weight (Kg)
      215
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      No
      Engine manufacturer
      Kubota

      Specific References

      New

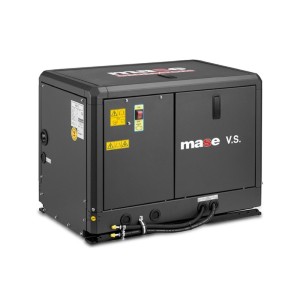

      MASE VS15,5 SINGLE-PHASE MARINE GENERATOR 15KW

      Generator marine MASE VS15,5 equipped with a Kubota D1105-E4 engine with Diesel power supply and variable speed regulation, capable of delivering a power of 15KW.

      The MASE VS15,5 marine generator is designed with a soundproof cabin that makes it supersilenced. The marine generator is built with Kubota diesel-powered engine and permanent magnet alternator with air/water cooling. With its small size, it is also suitable on small boats.

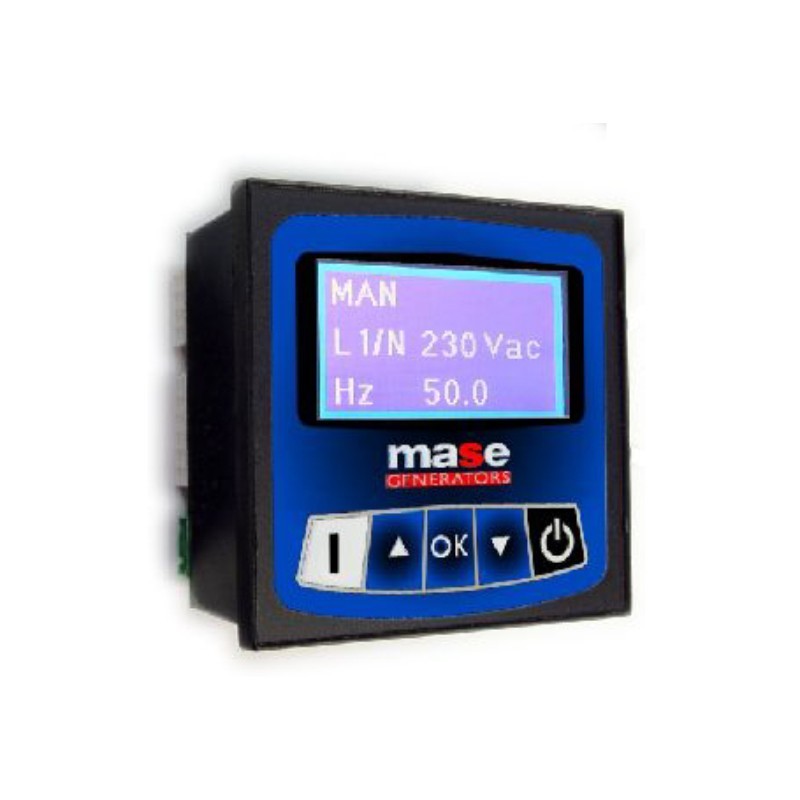

      The MASE VS15,5 CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. MASTER CBU 93x93mm (3.66x3.66 in) very compact module, with multiple functions for complete monitoring of the marine generator MASE VS15,5:

      - ON/OFF/START/STOP/MENU controls.
      - Digital hour meter, Output voltage, Group battery voltage, External battery pack voltage, Frequency, Maintenance interval, Last 10 alarms list with time.
      - 13 different alarm icons can be displayed.
      - 485 Mod-Bus connector to monitor the group from the main control panel of the boat.

      The sound-proof cabin of the MASE generator has been realized with painted marine aluminum panels, combining an innovative design with a very high resistance to external agents. Thanks to its structure, a low weight and an excellent accessibility to the internal compartment are guaranteed, making maintenance operations easy, even with installations carried out in narrow spaces.

      TECHNICAL FEATURES MARINE GENERATOR MASE VS15,5

      Phase Type: Single Phase
      Power continuous use: 15 KW
      Fuel: Diesel
      Voltage: 230 V / 240 V
      Frequency: 50/60 Hz
      Engine: Kubota D1105-E4, 4 Strokes
      Mechanical power: 24.8 Hp
      Number of cylinders: 3
      Displacement: 1123 cc
      Emissions regulation: EPA
      Bore x stroke: 78 x 78.4 mm
      Speed governor: Electric with actuator
      Engine rpm: 2100 ÷ 3150 rpm
      Acoustic power: 56 dBA @ 7 m

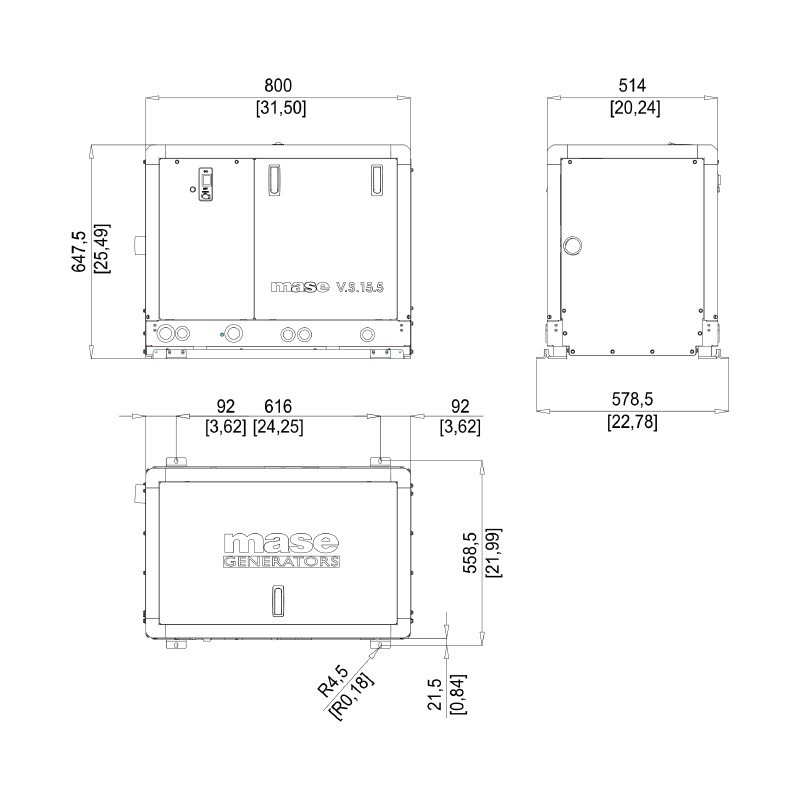

      Length: 800 mm
      Width: 514 mm
      Height: 647 mm
      Weight: 235 Kg

      If you are looking for another generator like the MASE then you can browse the entire catalog of marine generators.

      Images and technical data are not binding.

      Aliquam sodales dui in auctor scelerisque. Nam vel massa sed velit laoreet pretium quis et felis. Maecenas ac auctor lectus. Praesent posuere sit amet purus at tempor.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.

      Download

      MASE VS 15.5

      Data sheet MASE VS 15.5

      Download (440.81KB)
