GENERATOR FISCHER PANDA 50-4 PMS
      GENERATOR FISCHER PANDA 50-4 PMS
      GENERATOR FISCHER PANDA 50-4 PMS
      GENERATOR FISCHER PANDA 50-4 PMS
      GENERATOR FISCHER PANDA 50-4 PMS

      GENERATOR FISCHER PANDA 50-4 PMS

      FP0014988

      DISCONTINUED PRODUCT

      Phase Type: Three-phase
      Maximum Output: 40 kW
      Continuous Output: 36 kW
      Maximum Output: 47.1 kVA
      Continuous Output: 42.4 kVA
      Frequency: 50 Hz
      Voltage: 400 V
      Engine rpm: 1500 rpm
      Dispacement: 4399 cc.
      Cooling: Water
      Sound Cover Type: MPL 4DS
      Length: 1380 mm
      Width: 770 mm
      Height: 980 mm
      Dry weight: 920 Kg

      Custom Quote
      Product: GENERATOR FISCHER PANDA 50-4 PMS

      PERSONAL DATA


      Ask a question
      Product: GENERATOR FISCHER PANDA 50-4 PMS
      Offer on letterhead
      Product: GENERATOR FISCHER PANDA 50-4 PMS
      FISCHER PANDA
      FP0014988

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      40
      Continuous power three phase (KW)
      36
      Maximum power three phase (KVA)
      47.1
      Continuous power three phase (KVA)
      42.4
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine
      JCB NA-47
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Starting system
      Elettrico
      Engine capacity (cm³)
      4399
      Number cylinders
      4
      Cooling
      Water
      Poles
      4
      Motor insulation class
      H
      Length (mm)
      1380
      Width (mm)
      770
      Height (mm)
      980
      Dry weight (Kg)
      98
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      Voltage regulator
      Capacitor
      Engine manufacturer
      JCB

      Specific References

      MARINE GENERATOR FISCHER PANDA 50-4PMS SUPERSILENCED 47.1 KVA

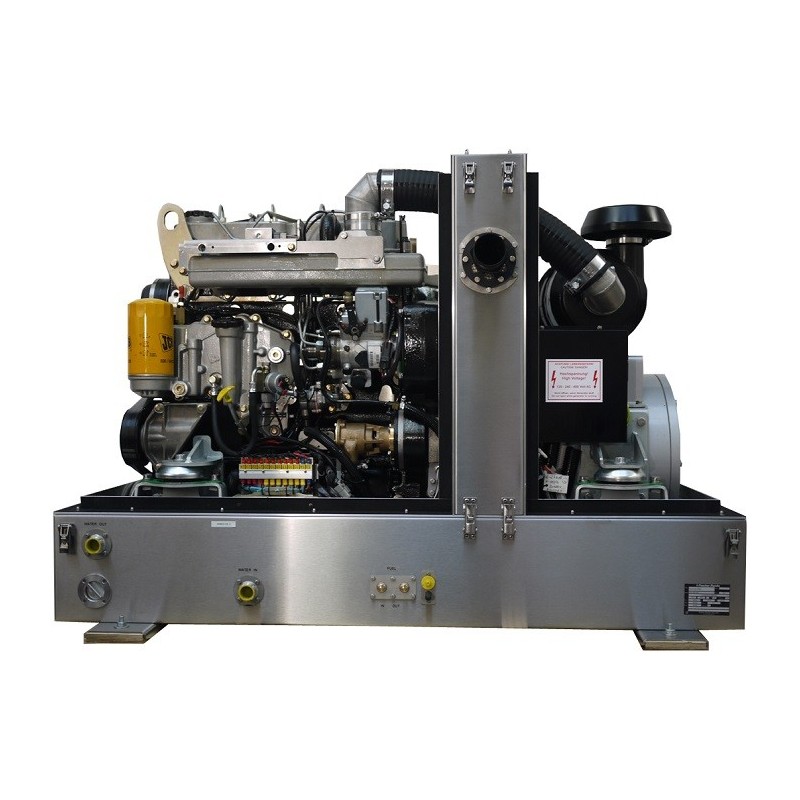

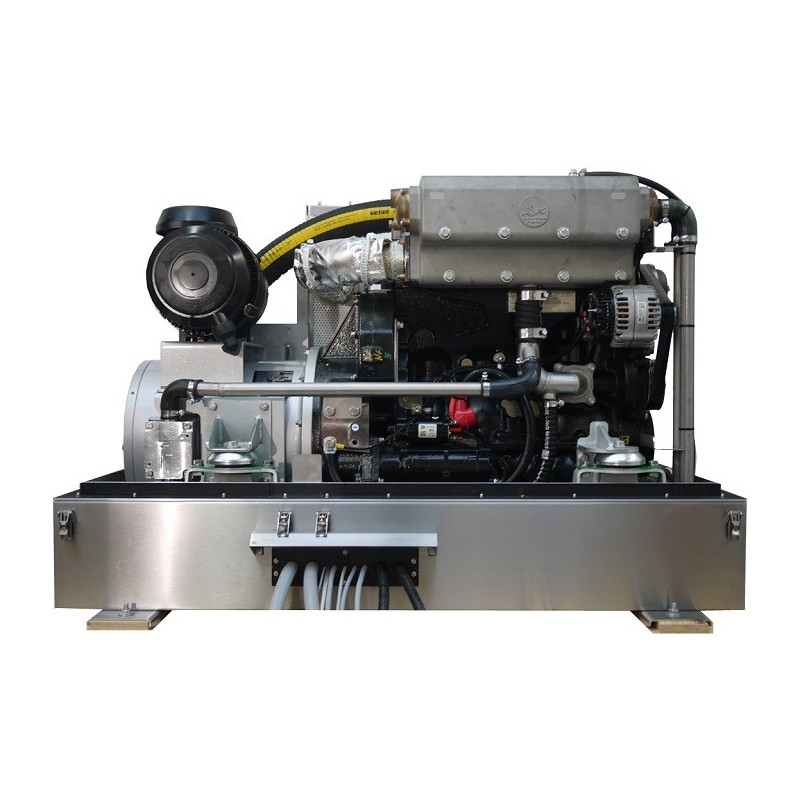

      Generator for boats, also called generetor sets, Fischer Panda 50-4PMS three-phase 47.1 KVA with 1500 rpm motor. The Fischer Panda 50-4PMS three-phase marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda 50-4PMS three-phase marine generator is built with a diesel-powered JCB engine. The Fischer Panda 50-4PMS three-phase marine generator alternator is 4-pole with H insulation class. Thanks to its compactness, size and low weight, the Fischer Panda 50-4PMS three-phase marine generator is also perfect for installation on boats with tight spaces.

      Technical data of the Fischer Panda 50-4PMS generator:

      Phase Type: Three-phase
      Maximum Output: 40 kW
      Continuous Output: 36 kW
      Maximum Output: 47.1 kVA
      Continuous Output: 42.4 kVA
      Frequency: 50 Hz
      Voltage: 400 V
      Engine rpm: 1500 rpm
      Dispacement: 4399 cc.
      Cooling: Water
      Sound Cover Type: MPL 4DS
      Length: 1380 mm
      Width: 770 mm
      Height: 980 mm
      Dry weight: 920 Kg

      Based on the rugged Fischer Panda 50-4PMS generator set, these heavy duty (HD) versions operate at 1500 rpm / 50Hz.

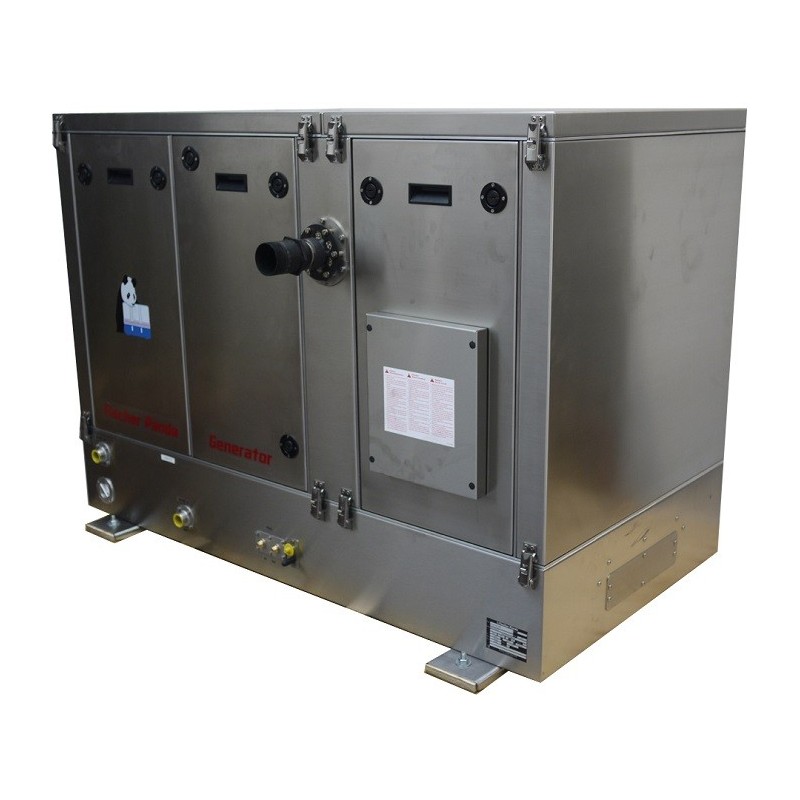

      The Fischer Panda 50-4PMS marine generator is enclosed in a super quiet soundproofed capsule.
      The generators are heavier than standard PMS generators. They use a heavy-duty diesel engine and because they run at 1500 rpm, they have a 4-wire coil, which also means that the alternator has a heavier 4-pole construction.
      The heavy-duty construction and low rpm results in a durable and quiet generator set.

      If you are looking for a marine generator set like the Fischer Panda 50-4PMS but with different technical features then you can browse the entire marine generator catalogue.

      Images and technical data are not binding.
