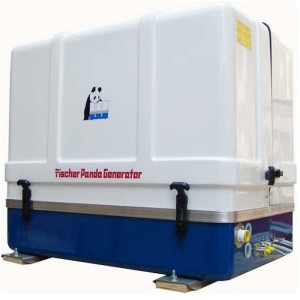

GENERATOR FISCHER PANDA AGT-DC 15000-48V PMS

Reference FP0033364

DISCONTINUED PRODUCT

Phase Type: Single-phase
Maximum Output: 15600 W
Continuous Output: 15600 W
Maximum Output: 15.6 kVA
Continuous Output: 15.6 kVA
Frequency: 50 Hz
Voltage: 48 V
Inverter
Engine rpm: 2400-3000 rpm
Dispacement: 1261 cc.
Cooling: Water
Sound pressure: 55 dB(A) at 7 m
Length: 825 mm
Width: 510 mm
Height: 658 mm
Dry weight: 250 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference FP0033364

Data sheet

Phase: Single phase
Maximum power single phase (KW): 15.6
Continuous power single phase (KW): 15.6
Maximum power single phase (KVA): 15.6
Continuous power single phase (KVA): 15.6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 48
Engine: Kubota D1305
Engine rpm (rpm): 2400-3000
Speed governor: Electronic
Engine capacity (cm³): 1261
Number cylinders: 3
Cooling: Water
Poles: 2
Bore x stroke (mm): 78 x 78.4
Motor insulation class: H
Length (mm): 825
Width (mm): 510
Height (mm): 658
Dry weight (Kg): 250
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: Inverter
Engine manufacturer: Kubota

Specific References

FISCHER PANDA Marine Generator AGT-DC15000 48V Supersilenced 15.6 KW

Generator Fischer Panda AGT-DC15000 48V single-phase 15.6 KW with variable speed motor from 2400 rpm to 3000 rpm. The Fischer Panda AGT-DC15000 48V is designed with a soundproof enclosure that makes it supersilenced. The Fischer Panda AGT-DC15000 48V marine generator is built with a diesel-powered Kubota engine. The alternator of the Fischer Panda AGT-DC15000 48V is 2-pole and H-insulation class. With its compact size and light weight, the Fischer Panda AGT-DC15000 48V marine generator is also suitable for installation on small boats.

Hybrid AC Power - Indirect AC
Battery charging generators produce direct current and generally function as part of a hybrid power system. Battery levels are monitored and charged automatically by the generator. An inverter supplies power to 230V consumers on board. These systems are ideal for typically variable power demands that do not require a generator to run constantly throughout the day.

Ideal for systems where the generator runs for short intervals to charge the power bank and support periods of peak power.
In this version, the charging voltage is controlled by an integrated AGT controller that regulates the motor's RPM.

TECHNICAL FEATURES FISCHER PANDA AGT-DC 15000-48V

Phase type: Single-phase
Maximum singlephase output: 15.6 KW
Continuous singlephase output: 15. 6 KW
Frequency: 50 Hz
Voltage: 48 V
Inverter
Motor RPM: 2400-3000 rpm
Displacement: 1261
Cooling: Water
Sound Pressure: 55 dB(A) at 7 m
Length: 825 mm
Width: 510 mm
Height: 658 mm
Dry weight: 250 Kg

If you are looking for a marine generator set like the Fischer Panda AGT-DC15000 48V then you can browse the entire catalog of marine generators.

Images and technical data are not binding.
