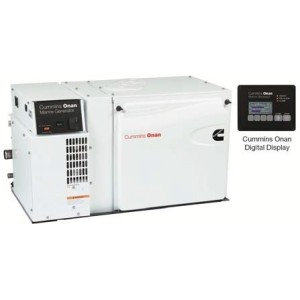

Super-silenced CUMMINS ONAN MDKDR Marine Generator 17.5 KW AVR

CUMMINS ONAN MDKDR single phase 17.5 KW marine generator with 1500 rpm motor. The CUMMINS ONAN MDKDR marine generator is designed with a soundproof enclosure that makes it supersilenced. The CUMMINS ONAN MDKDR is built with a Cummins 4-stroke diesel-powered engine. The alternator of the CUMMINS ONAN MDKDR marine generator is 4-pole with insulation class H and AVR voltage regulator. Due to its compactness and small size and weight it can be installed even on board of small boats. Due to its compactness it can be installed on boats with limited space.

Technical characteristics of CUMMINS ONAN MDKDR generator:
Phase type: Single phase
Power supply: Diesel
Single phase power: 17. 5 KW
Single-Phase Power: 17.5 KVA
Voltage: 115V/230V
Amps: 76.1A at 230 V, 152.2A at 115 V
Frequency: 50 Hz
Rpm: 1500 rpm
Cooling: Liquid
Cylinders: 4
Bore x Stroke: 78x78. 4 mm
Displacement: 1498 c.c
Compression ratio: 24:1
Power supply: Electric 12V
Fuel consumption: 4. 7 Lt/h at 75% load
Voltage controller: digital AVR
Isolation class: H
Length: 1127 mm
Width: 602 mm
Height: 698 mm
Weight: 422 Kg
Super-silenced
65 dB(A) at 1 meter
Includes soundproofing booth, 12V electrical system, negative ground.

- Reliability, high quality and innovation make Cummins Onan the leader in the design and development of such as the CUMMINS ONAN MDKDR, providing performance you can rely on.
- The QD (Quiet Diesel) series digital models are the first marine generators with self-monitoring and network communication capabilities.
- The ONAN MDKDR's optional digital display offers user-friendly diagnostics including detailed engine and alternator information, self-diagnostic functions and text displays.
- Marine generators like the CUMMINS ONAN MDKDR with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better acoustic performance sound quality. Optimized mounting system greatly reduces vibration.
- Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

If you're looking for a boat product like the MDKDR marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

Non-binding images and technical data.
