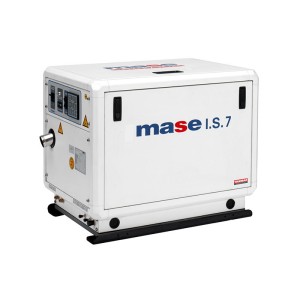

MASE IS 7 SINGLE PHASE MARINE GENERATOR 6.7KW

002773
      MASE IS 7 SINGLE PHASE MARINE GENERATOR 6.7KW
      MASE IS 7 SINGLE PHASE MARINE GENERATOR 6.7KW
      MASE IS 7 SINGLE PHASE MARINE GENERATOR 6.7KW

      Phase Type: Single Phase
      Continuous Use Power: 6.2KW
      Maximum Power: 6.7KW
      Fuel: Diesel
      Voltage: 115 - 230 V
      Frequency: 50 Hz
      Engine: Yanmar 3TNV76, 4 Stroke
      Mechanical Power: 12. 5 Hp
      Number of cylinders: 3
      Displacement: 1116 cc
      Bore x stroke: 76 x 78 mm
      Speed governor: Centrifugal mechanical
      Engine revs: 1500 rpm
      Sound power: 49 dBA @ 7 m
      Length: 760 mm
      Width: 530 mm
      Height: 625 mm
      Weight: 230 Kg

      Prezzo
      17,800.00 € tax excl.
      21,716.00 € tax incl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MASE
      002773

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KW)
      6.7
      Continuous power single phase (KW)
      6.2
      Maximum power single phase (KVA)
      6.7
      Continuous power single phase (KVA)
      6.2
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      115 / 230
      Engine
      Yanmar 3TNV76, 4 stroke
      Engine rpm (rpm)
      1500
      Speed governor
      Centrifugal, mechanical
      Engine capacity (cm³)
      Number cylinders
      3
      Oil capacity (L)
      3.5
      Cooling
      Air / water (Intercooler W/A)
      Inyección
      Indirect
      Alternator
      Synchronous, self-excited
      Poles
      4
      Lubrication
      Forced
      Consumption (L/h)
      2.3 at 100% of the load
      Acoustic pressure
      49 dB(A) at 7 m
      Length (mm)
      760
      Width (mm)
      530
      Height (mm)
      625
      Dry weight (Kg)
      230
      Inverter
      No
      AVR
      No
      Compound
      No
      Silenced
      Yes
      Super silenced
      Yes
      Compression ratio
      23.5 : 1
      Product type
      Generator
      Engine manufacturer
      Yanmar

      Specific References

      New

      MASE IS 7 SINGLE PHASE MARINE GENERATOR 6.7KW

      MASE IS7 single-phase marine generator with Yanmar 3TNV76 engine with diesel power supply at 1500 rpm capable of delivering a power of 6.7KW.

      The MASE IS7 marine generator is made up of a soundproof cabin with a supporting structure in aluminium profile which supports panels in marine painted aluminium type 5754 extremely light and of very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance operations easier even with the generator set installed in narrow spaces.

      The MASE IS7 thanks to the low engine speed and the soundproof cabin has a surprisingly low noise emission of only 49 dB (A) at 7 meters.

      The marine generator CBU control module has a new design, the latest technology, a large display and micro-buttons for quick navigation of menus, start and stop procedures; IP54 protection rating. Very compact, 86x124mm and equipped with 10mts shielded cable, the CBU module has multiple functions for complete monitoring of the MASE IS7.

      The W/A Intercooler allows the MASE IS7 to be completely free from external environmental conditions, allowing the alternator and the engine to work at an ideal temperature, optimizing the performance and reliability of the machine

      The engine is cooled by circulating coolant in a closed circuit. The system is composed of a cupronickel exchanger, inside which the heat exchange between coolant and sea water takes place. Two separate pumps circulate the coolant and seawater. The cooling of the air, circulating inside the MASE IS7t, is obtained through a sea water/air heat exchanger. The air flows guarantee an effective cooling of the alternator and the achievement of an optimal temperature for the performance and reliability of the machine. This system has the advantage of ensuring the best operating conditions of the generator set regardless of the ambient temperature of the accommodation compartment.

      Technical characteristics:
      Maximum power: 6.7 KW
      Continuous use power: 6. 2 KW
      Fuel: Diesel
      Voltage: 115 V / 230 V
      Frequency: 50 Hz
      Engine: Yanmar 3TNV76
      Engine revs: 1500 rpm
      Length: 760 mm
      Width: 530 mm
      Height: 625 mm
      Weight: 230 Kg

      If you are looking for another generator like the MASE IS7 then you can browse the entire catalog of marine gensets.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
