LOMBARDINI LMG 9000 MARINE GENERATOR 10KVA SINGLE PHASE AVR

Lombardini LMG9000 Single-phase 10 KVA marine generator with 3000 rpm motor. The Lombardini LMG9000 marine generator is built with a soundproof capsule that makes it supersilenced. The Lombardini LMG9000 marine generator is built with a diesel-powered Lombardini LDW702MG engine. The alternator of the Lombardini LMG9000 marine generator is synchronous, with brushes and AVR voltage regulator. With its compact size and low weight, the Lombardini LMG9000 marine generator is also suitable for installation on small or medium-sized boats.

Motor
The marine generator is equipped with an engine FOCS (fully overhead controlling system) characterized by low noise, absence of vibrations and small size.

Alternator
The Lombardini LMG9000 is built withsynchronous type alternator with brushes and water cooled. Thanks to the AVR voltage regulator the delivered voltage is practically constant between ''empty'' and rated power.

Cooling
The Lombardini LMG9000 marine generator is characterized by a FULL WATER cooling that involves both the engine and the alternator; the sea water, through a special circuit, cools the fresh water of the engine, the oil and the external walls of the marine generator set alternator.

Remote Control Panel
The Lombardini marine generator is equipped with a remote control and command panel with 15 m of cable and quick connect connector, complete with high water temperature and low oil pressure warning lights. A display indicates hours of operation, voltage, current output, and maintenance alerts. An additional control panel is available upon request.

TECHNICAL FEATURES LOMBARDINI LMG9000

Phase Type: Single Phase
Continuous Power: 10 KVA / 8 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Lombardini LDW 702 MG
Emission standard: Not Emitted
Number of cylinders: 2
Displacement: 686 cc
Engine RPM: 3000 rpm
Acoustic power: 62 dBA
Voltage regulator: AVR

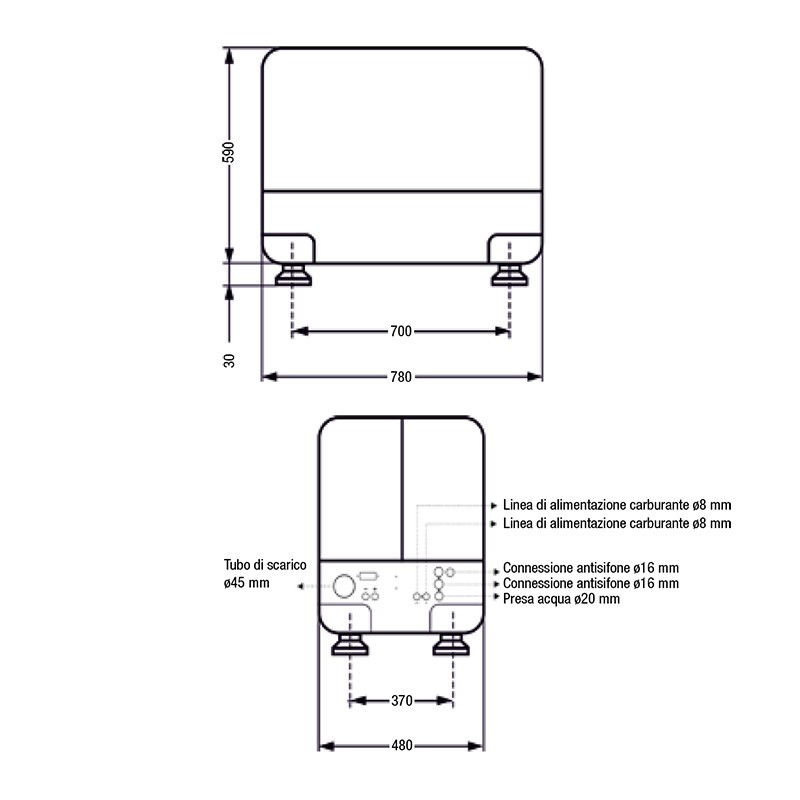

Length: 780 mm
Depth: 480 mm
Height: 620 mm
Net Weight: 178 kg
If you are looking for a nautical generator like the Lombardini LMG9000 but with different technical features then you can browse the entire catalog of marine generators.

Images and technical data are not binding.
