MARINE GENERATOR FISCHER PANDA AGT-DC10000 48V SUPERSILENCED 9.1 KW

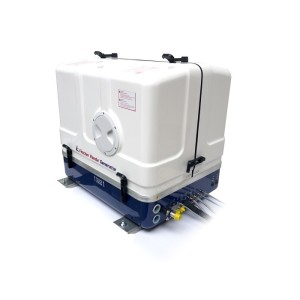

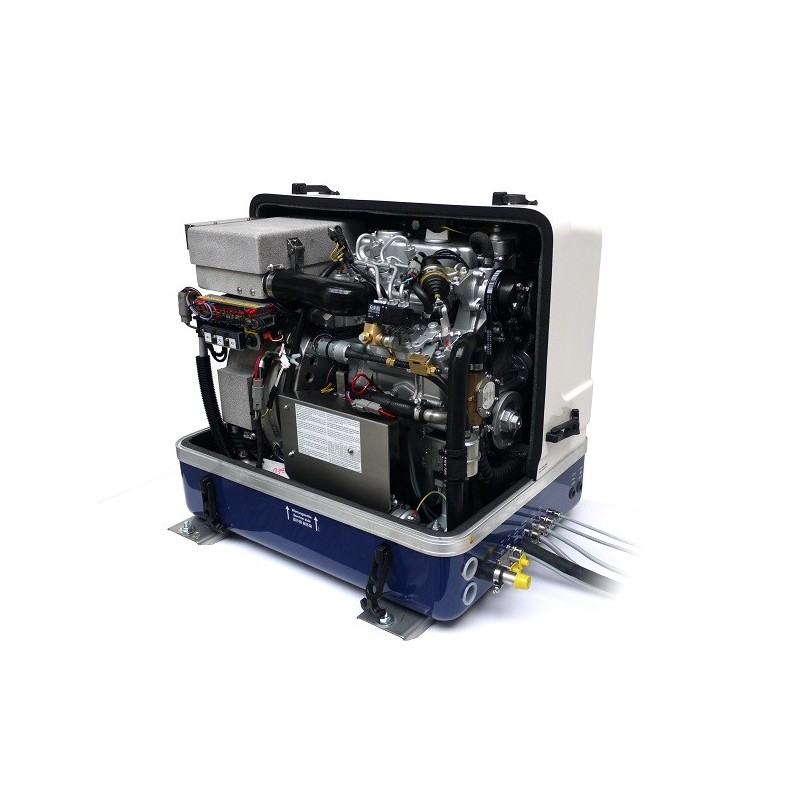

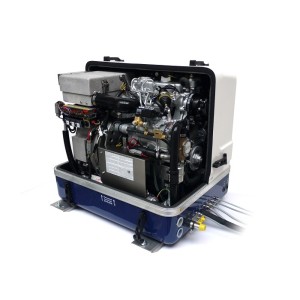

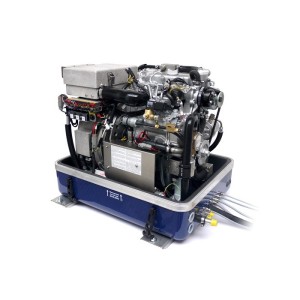

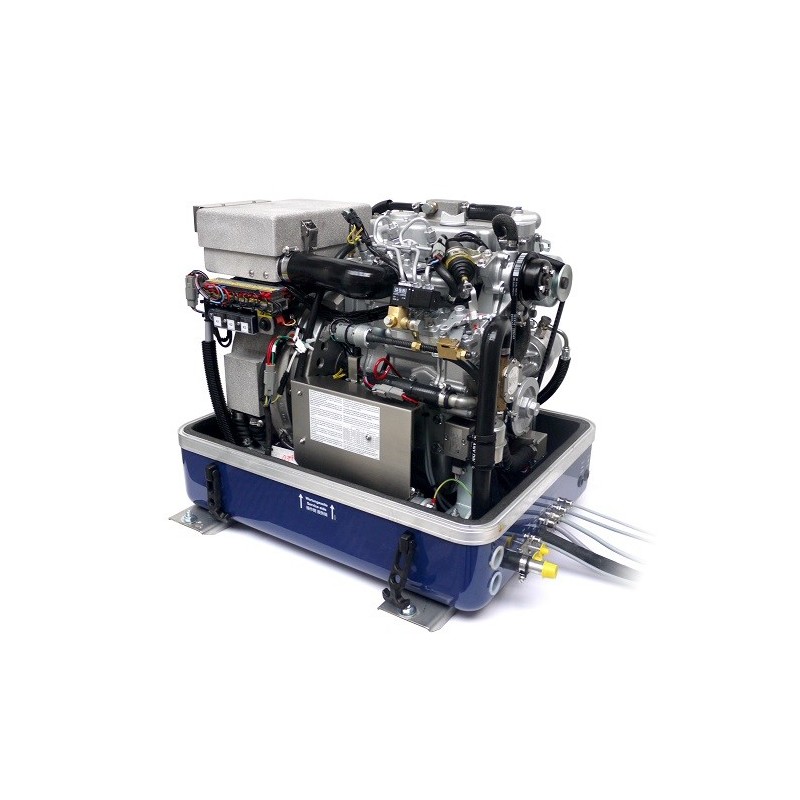

Generator for boats Fischer Panda AGT-DC10000 48V single-phase 9.1 KW with variable speed motor from 2300 rpm to 2900 rpm. The Fischer Panda AGT-DC10000 48V marine generator is designed with a soundproof cabin that makes it super-silent. The Fischer Panda AGT-DC10000 48V marine generator is built with a Kubota diesel-powered engine. The Fischer Panda AGT-DC10000 48V marine generator alternator is 2-pole and has H insulation class. With its compact size and low weight, the Fischer Panda AGT-DC10000 48V marine generator is also suitable for installation on small boats.

Main featuresof the Fischer Panda AGT-DC10000:

Phase Type: Single-phase
Maximum Output: 10000 W
Continuous Output: 9100 W
Maximum Output: 10 kVA
Continuous Output: 9.1 kVA
Frequency: 50 Hz
Voltage: 48 V
Inverter
Engine rpm: 2300-2900 rpm
Dispacement: 719 cc.
Cooling: Water
Sound pressure: 53 dB(A) at 7 m
Length: 660 mm
Width: 515 mm
Height: 594 mm
Dry weight: 160 Kg

Hybrid AC energy - indirect AC
Battery charging generators produce direct current and generally function as part of a hybrid power supply system. Battery levels are monitored and charged automatically by the generator. An inverter supplies power to the on-board 230 V consumers. These systems are ideal for typically variable power requirements that do not require a generator to operate constantly during the day.

- Designed for DC-AC power systems with battery plus inverter
- The generator is required to operate intermittently only
- Optimum use of the generator
- High degree of efficiency
- Compact design
- Reduced fuel consumption

If you are looking for a marine generator set like the Fischer Panda AGT-DC10000 48V then you can browse the entire catalogue of marine generators.

Images and technical data are not binding.
