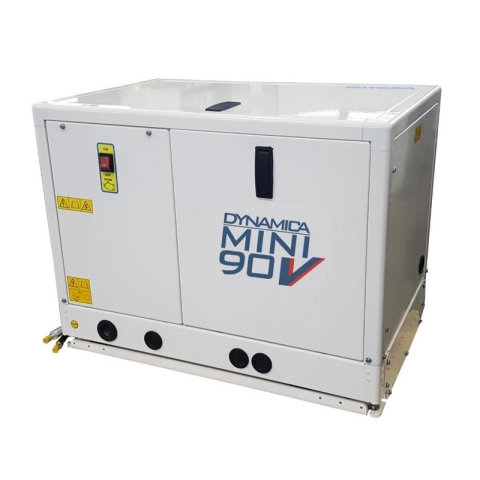

DYNAMICA MINI 90V SINGLE-PHASE MARINE GENERATOR 8KW

Reference MINI 90V Standard

Download Scheda tecnica DYNAMICA MINI 90V Download Data sheet DYNAMICA MINI 90V

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 8
Maximum power single phase (KVA): 8
Fuel: Diesel
Frequency (Hz): 50 / 60
Voltage (V): 230 / 240
Engine: Kubota Z602
Engine rpm (rpm): 2100 ÷ 3150
Starting system: Electric
Engine capacity (cm³): 599
Number cylinders: 2
Cooling: Heat exchanger air/water
Inyección: Indirect
Alternator: Permanent magnets
Bore x stroke (mm): 72 x 73.6
Consumption (L/h): 2.8
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 650
Width (mm): 468
Height (mm): 555
Dry weight (Kg): 172
Product type: Generator
Engine manufacturer: Kubota

Brand

DYNAMICA MINI 90V SINGLE-PHASE MARINE GENERATOR 8KW

The DYNAMICA MINI90V single-phase silenced marine generator is equipped with a Kubota Z602 engine powered by diesel, it is capable of delivering a maximum power of 8KW with variable speed.

The DYNAMICA MINI90V marine generator is equipped with a soundproof cabin that makes it super silent, with a sound emission of 56dB(A) at a distance of 7 m. The soundproof cabin in painted aluminum is extremely light and of very high resistance to external agents.

The DYNAMICA MINI90V is equipped with a permanent magnet alternator (PMG) with insulation class H, it delivers a variable voltage between 230 and 240 V and a frequency also between 50 and 60 Hz. With its compact size and low weight, the Dynamica MINI90V is also suitable for installation on small boats.

DYNAMICA MINI90V control unit
- IP54 protection
- ON/OFF/START/STOP/MENU soft-touch keys
- Digital display for Dynamica generator monitoring: manual start, Vac voltage - AC output - DC battery, Hz frequency, RPM, hour meter, oil pressure, low oil pressure alarm and prealarm - high temperature, temperature, preheating, stop alarm display, periodic maintenance warning, frequency, last 10 alarms memory

- Connection cable 10m
- Mod-Bus 485 connector for monitoring the generator from the main control panel
- GSM communication for generator start and stop, reception of alarm messages

TECHNICAL FEATURES DYNAMICA MINI90V

Phase Type: Single Phase
Maximum Power: 8 KVA / 8 KW
Factor cos ?: 1
Fuel: Diesel
Voltage: 230 - 240 V
Frequency: 50 - 60 Hz
Motor: Kubota Z602, 4 Stroke
Mechanical Power: 14. 5 Hp
Displacement: 599 cc
Engine speed: 2100 ÷ 3150 rpm
Sound pressure: 54 dB(A) @ 7 m
Alternator: Permanent Magnets (PMG)
Consumption: 2.8 l/h @ 75 %
Length: 650 mm
Width: 468 mm
Height: 555 mm
Weight: 172 Kg

Looking for a marine generator with different technical features? Here you can find the full range of DYNAMICA generators or other specialized brands

Images and technical data not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
