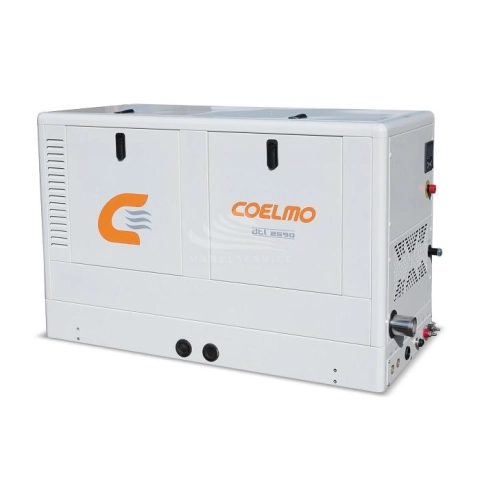

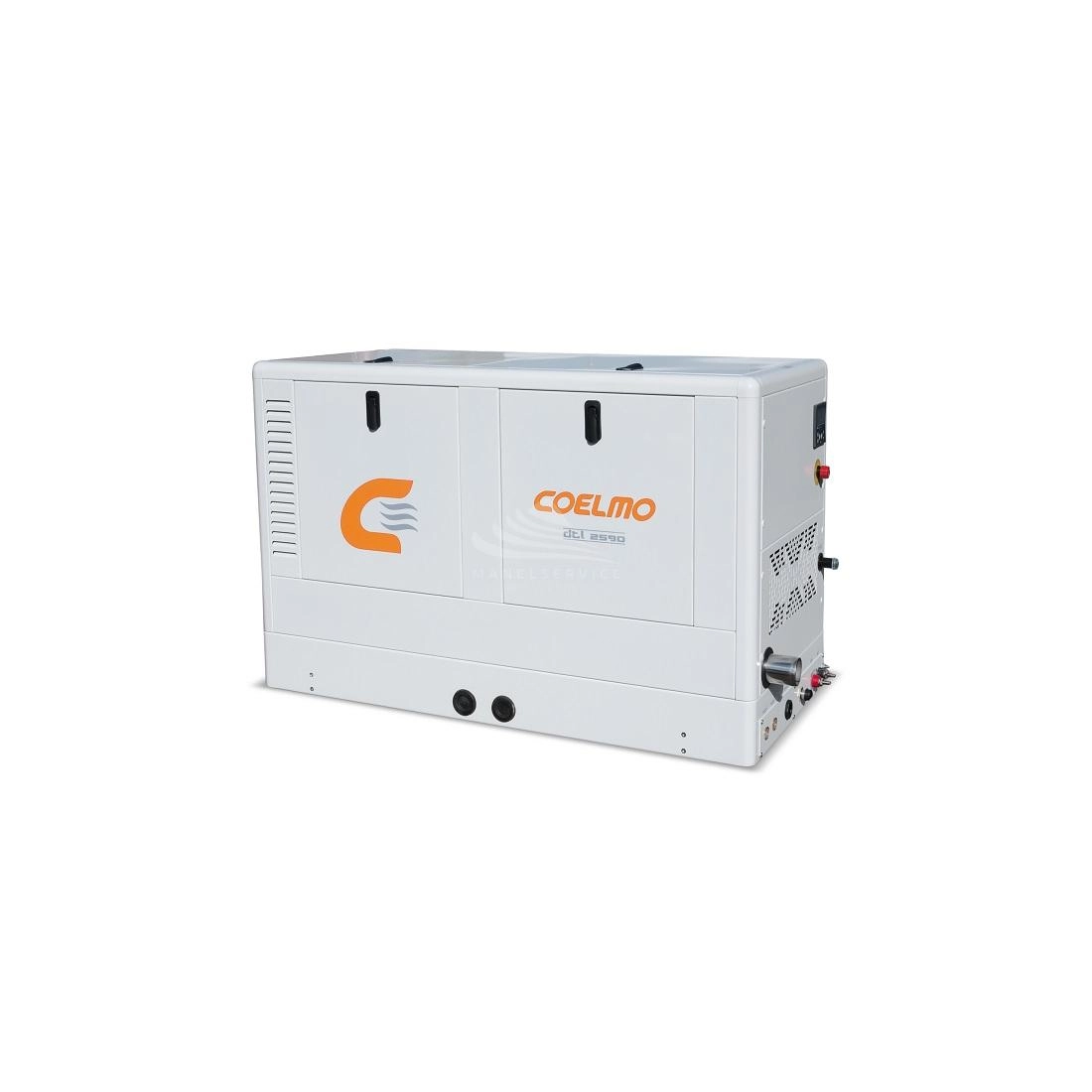

COELMO DTL2590 FIDIO MARINE DIESEL GENERATOR 25.9 KVA

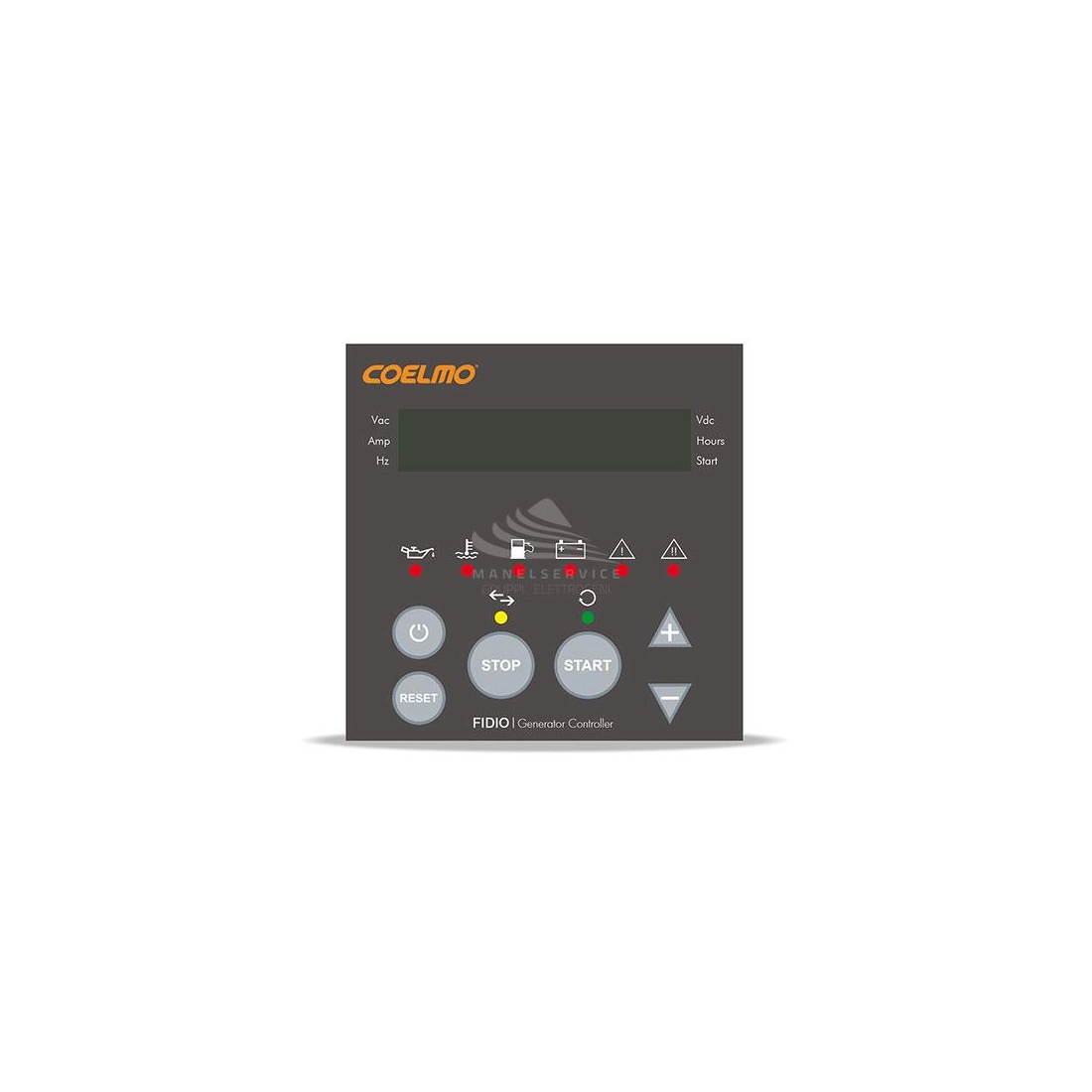

Reference DTL2590 FIDIO

Download Scheda tecnica DTL2590 Download Technical data DTL2590 Download Manuale DTL2590 Download Manual DTL2590

Product Details
Description

Phase: Three phase
Poles: 4
Cooling: With exchanger
Engine: KUBOTA V2403-BG
Compression ratio: 23.2 : 1
Maximum power three phase (KW): 23.5
Continuous power three phase (KW): 18.8
Maximum power three phase (KVA): 25.9
Continuous power three phase (KVA): 20.7
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 2434
Number cylinders: 4
Oil capacity (L): 8
Alternator: Synchronous, single bearing, self-regulated, self-excited, brushless, with electronic voltage regulator
Bore x stroke (mm): 87 x 102
Consumption (L/h): 3.4 at 50% of the load / 6.1 at 100% of the load
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 1130
Width (mm): 600
Height (mm): 730
Dry weight (Kg): 448
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
