MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.

MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.

Name: MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.
Brand: MOSA
SKU: C08P3040
Price: 5665.77 EUR
Availability: InStock

Maximum Height (mt.): 5.5
Lifting System: Manual
Illuminated Area: 1800 m²
Floodlihts: Metal Halide
Projectors: 4 x 400 W
Transportability: Wheels and Handles
Dry Weight (Kg): 335
Min. Dimensions (mm): 1125 x 1256 x 2236
Max. Dimensions (mm): 1853 x 1380 x 5500
Wind Stability (Km/h): 80
Mast rotation: ----
Stabilizers: 2
Operating Time (h): 32
Single Phase Rated Output (kVA): 4.5
Engine: Yanmar L70
Fuel: Diesel
r.p.m.: 3000
Tank Capacity (l): 23
Consumption (l/h): 0.72

List price

6,912.24 € tax incl.

5,665.77 € tax excl.

Discounted Price

6,912.24 € tax incl.

5,665.77 € tax excl.

Shipping from 106.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MOSA TF IM5.5 Y J-4x400 Metal Halide Lighting Tower 5.5 Mt.

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C08P3040

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 4.5
Continuous power single phase (KVA): 4.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 2P+T CEE - 1 x 115V 16A 2P+T CEE
Engine: Yanmar L70N, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 320
Number cylinders: 1
Cooling: Air
Inyección: Direct
Alternator: Synchronous, brushless
Poles: 2
Type of lamps: Metal halide
Lamps: 4 x 400 W
Telescopic pole: Galvanized

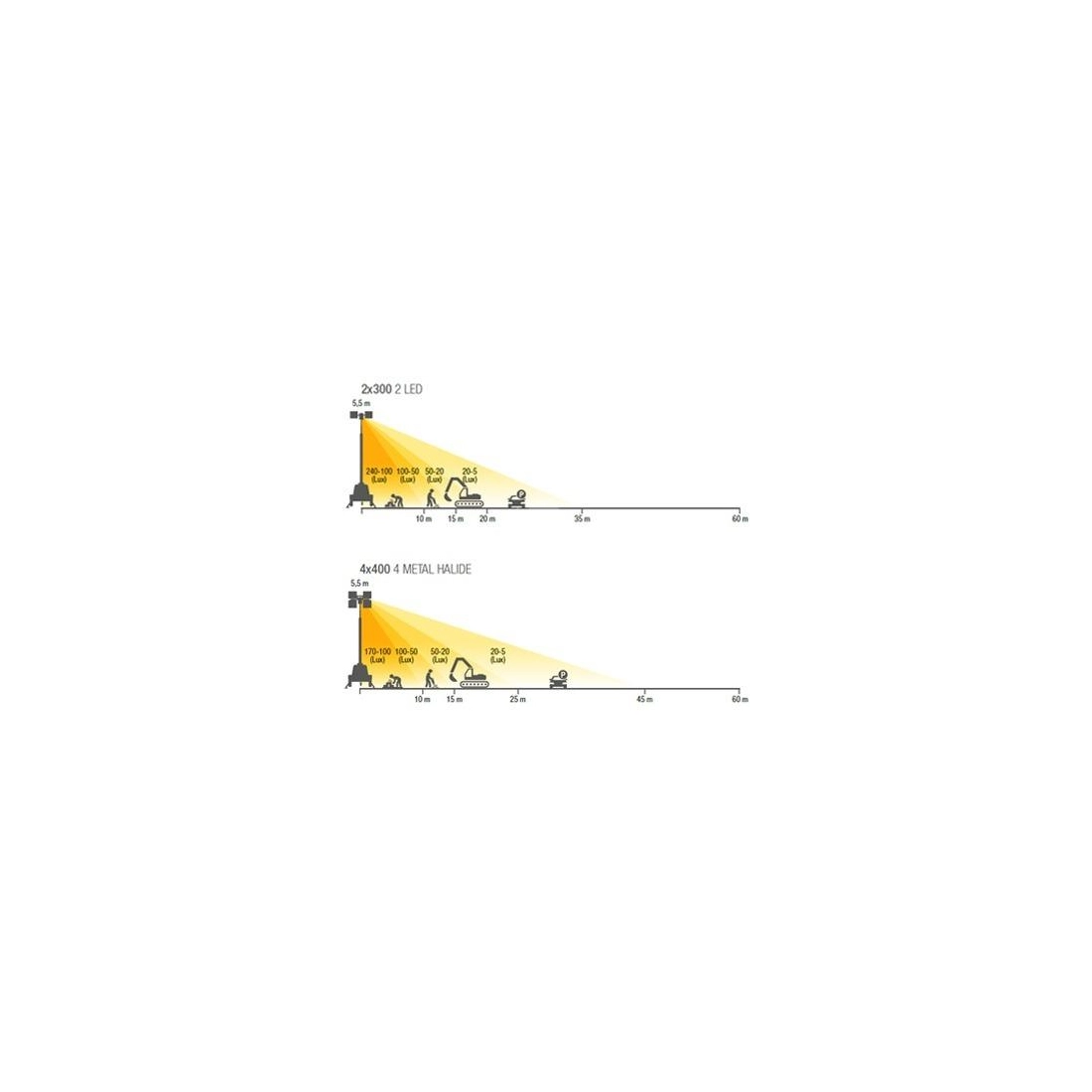

Illuminated area (m²): 1800
Total lumens (Lm): 140000
Lifting System: Manual lifting system
Maximum height (m): 5
Open size (mm): 1853 x 1380 x 5500
Lenght closed (mm): 1125
Width closed (mm): 1256
Height closed (mm): 2246
Transportability: Wheels and handles
Stability to wind (Km/h): 80 Km/h
Fuel tank capacity (L): 23
Consumption (L/h): 0.71
Running time (h): 32
Acoustic power: 93 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Dry weight (Kg): 335
Silenced: Yes
Super silenced: Yes
Brushes: No

Specific References

Condition New

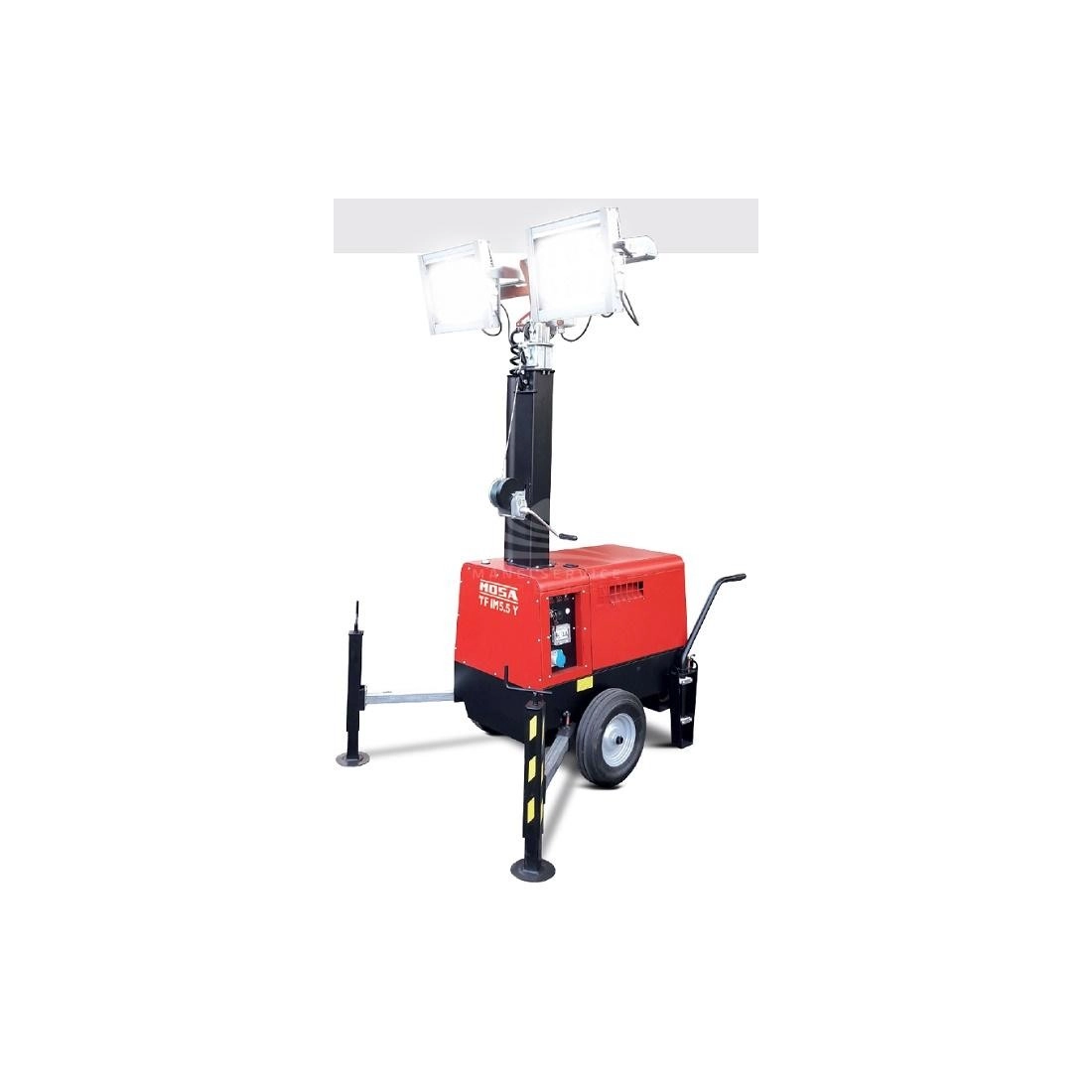

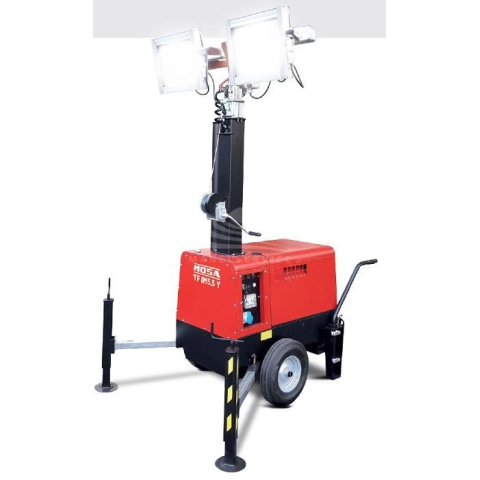

New compact and easy-to-handle lighting tower with an integrated power generator.

- MAXIMUM HEIGHT 5.5 M
- MANUAL LIFTING
- 4.2 kVA SUPER-SILENCED GENERATOR
- AVAILABLE BULBS: 4x150 W LED or 4x400 W METAL HALIDES
- OPERATING TIME 32 HOURS

The new TF IM 5.5 Y is a compact and easy-to-carry lighting tower that can effectively illuminate areas up to 1,800 sq m with a reduced environmental impact.

TF IM 5.5 Y is fitted with a 5.5 metre telescopic, with manual lifting and four high efficiency 150 Watt LED lights (or four traditional 400 Watt metal halide lights) and a Yanmar single-cylinder engine.

Thanks to its contained weight and set-up on a manual trailer, it can be easily controlled by a single operator.

Sectors of use: rental, events, roadworks and construction sites.

The photoes are for illustrative purpose only.
