GENERAC LT V20 Y2 LIGHT TOWER 4x320W G4 LED FAST TROLLEY

Name: GENERAC LT V20 Y2 LIGHT TOWER 4x320W G4 LED FAST TROLLEY
Brand: GENERAC
SKU: LS20Y2D-2900EU
Price: 14219.1 EUR
Availability: InStock

Reference LS20Y2D-2900EU

Power of the lamps: 4 x 320 W
Type of lamp: LED
Total lumens: 188160 Lm
Illuminated area: 4500 m2
Lifting system: Hydraulic
Pole rotation: 340°
Engine: Yanmar 2TNV-70
Engine cooling: Liquid
Cylinders (N): 2
Speed; engine (50/60 Hz): 1500 / 1800 rpm
Liquid collection tank (110%): Yes
Alternator (kVA/V/Hz): 5/220/50 – 5/240/60
Electrical socket (kVA/V/Hz): 2/220/50 – 2/240/60
Power plug (A/V/Hz): 16/220/50 – 16/240/60
Average sound pressure: 58 dB(A) @ 7m
Wind resistance: 110 km/h
Capacity: tank: 100 l
Autonomy: 143 h
Dim. minimum (L x P x H): 2250 x 1400 x 2436 mm
Dim. dimensions (L x P x H): 2640 x 1900 x 8500 mm
Dry weight: 1030 kg

List price

27,529.30 € tax incl.

22,565.00 € tax excl.

Discounted Price

14,219.10 € tax incl.

11,655.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LS20Y2D-2900EU

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 5
Fuel: Diesel
Voltage (V): 230
Engine: Yanmar 2TNV-70
Emissions Regulations: Not Emitted
Engine rpm (rpm): 1500 / 1800
Number cylinders: 2
Cooling: Coolant Liquid
Type of lamps: LED
Lamps: 4 x 320 W
Illuminated area (m²): 4500
Total lumens (Lm): 188160
Lifting System: Hydraulic lifting system
Maximum height (m): 8.5
Mast rotation: 340°
Open size (mm): 2640 x 1900 x 8500
Closed size (mm): 2250 x 1400 x 2436
With generator / Without generator: With generator
Transportability: Fast Trailer
Stability to wind (Km/h): 110
Fuel tank capacity (L): 100
Running time (h): 143
Acoustic pressure: 58 dB(A) at 7 m
Dry weight (Kg): 980
Engine manufacturer: Yanmar

Specific References

Condition New

GENERAC LT V20 Y2 LIGHT TOWER 4x320W G4 LED FAST TROLLEY

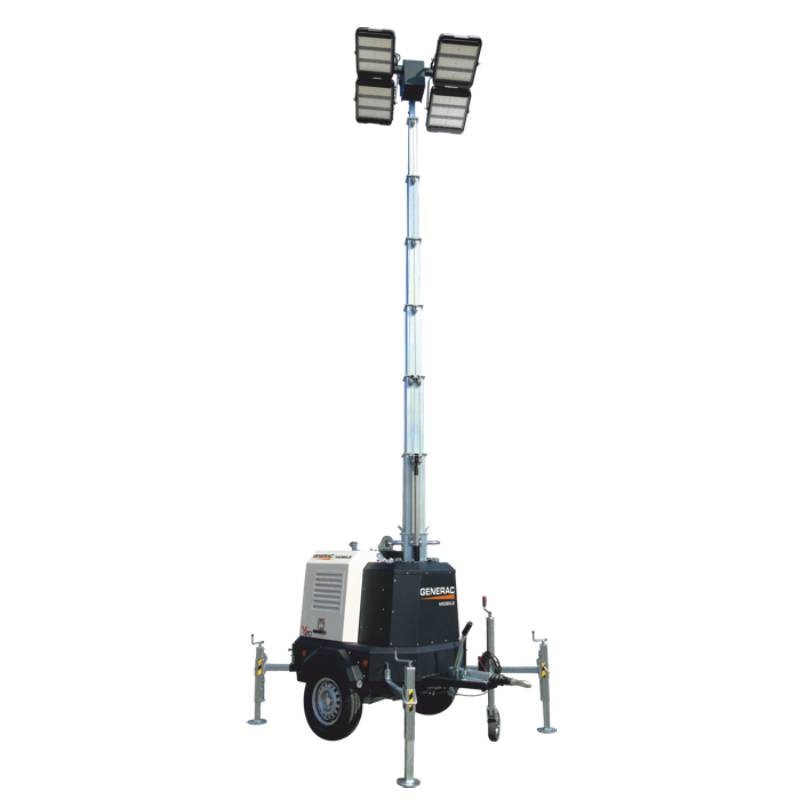

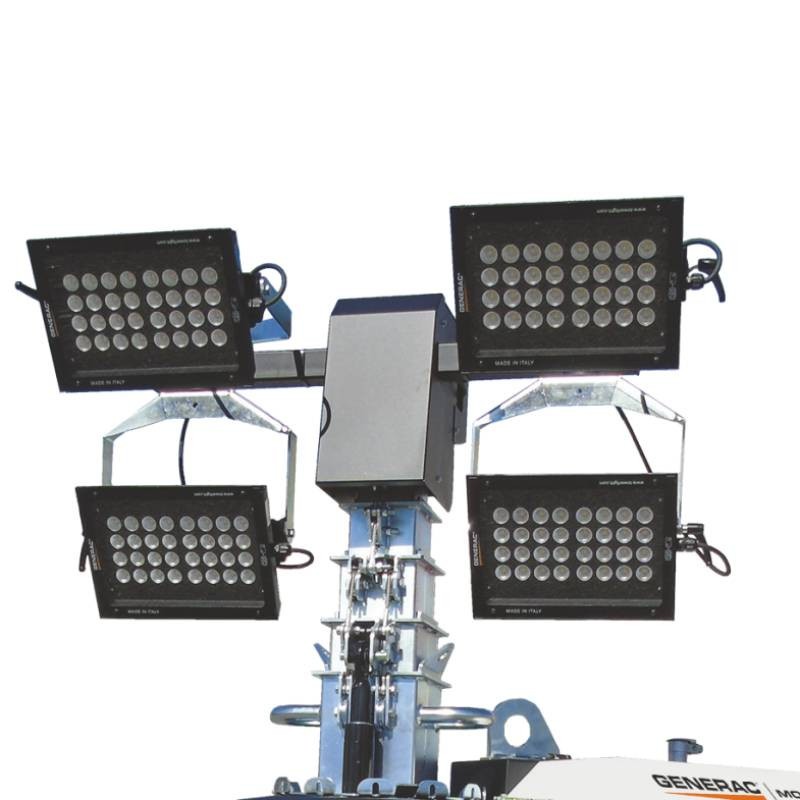

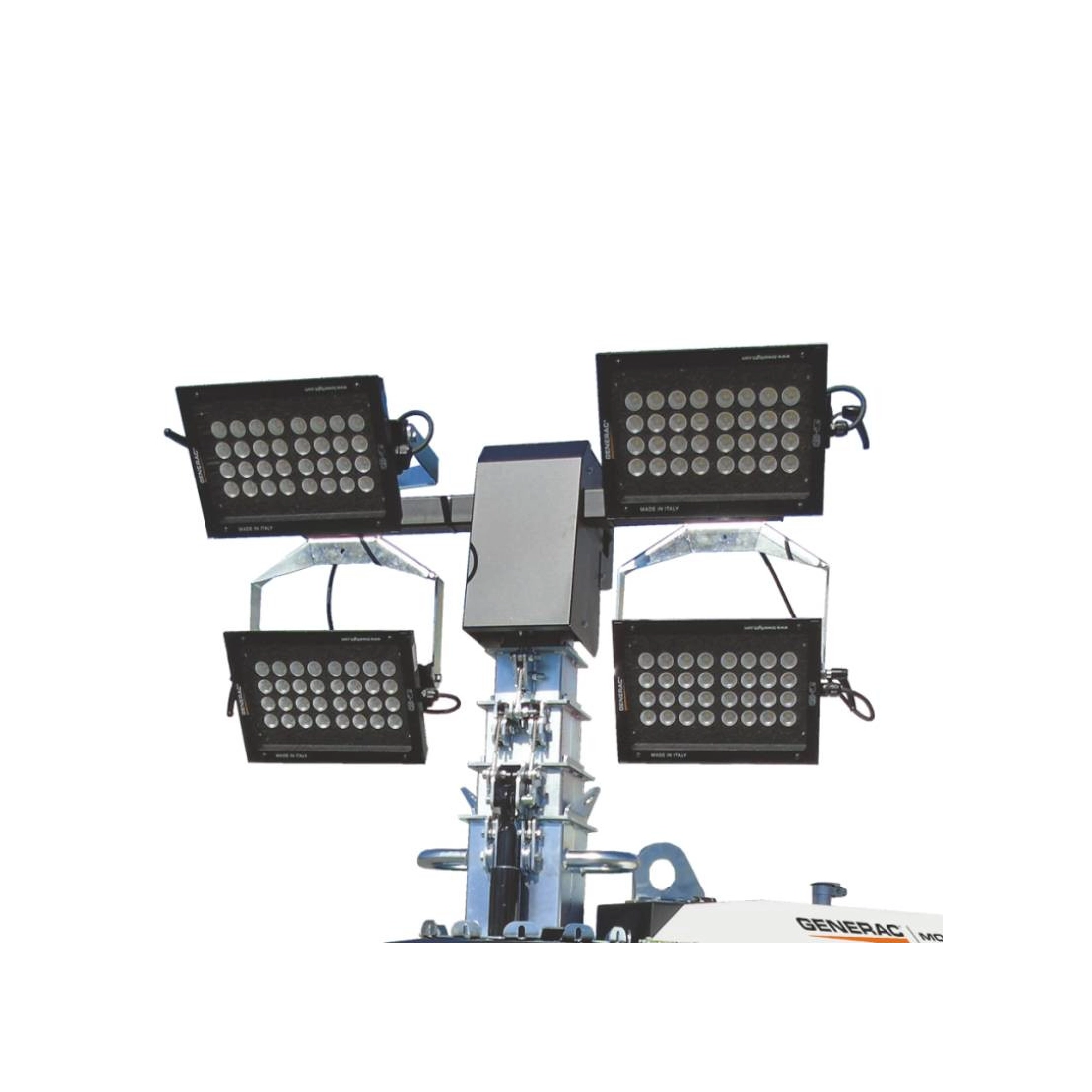

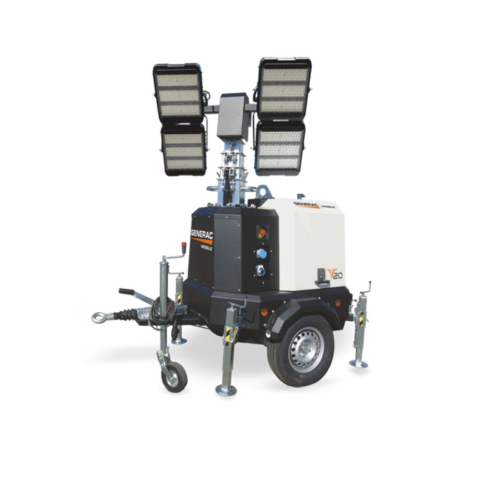

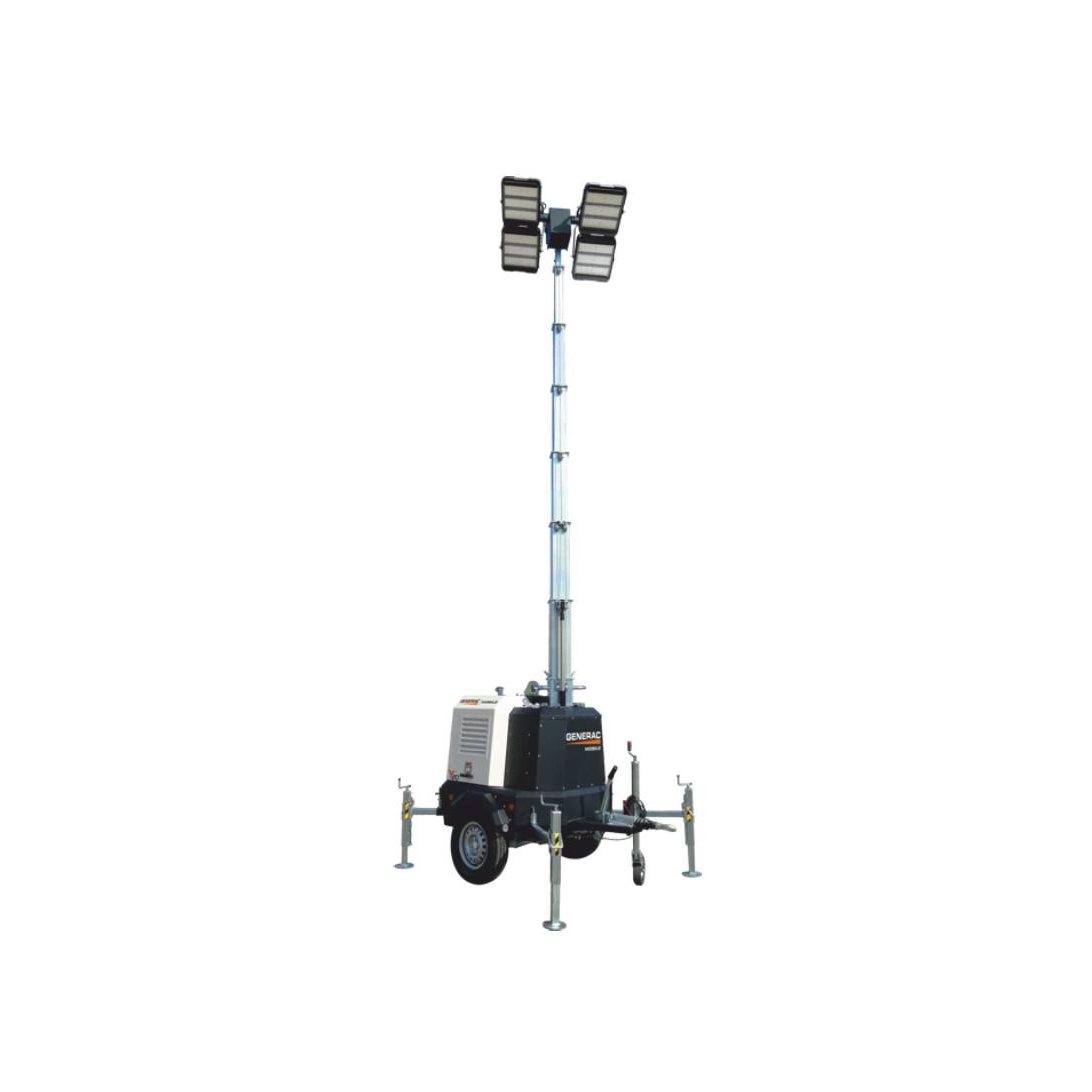

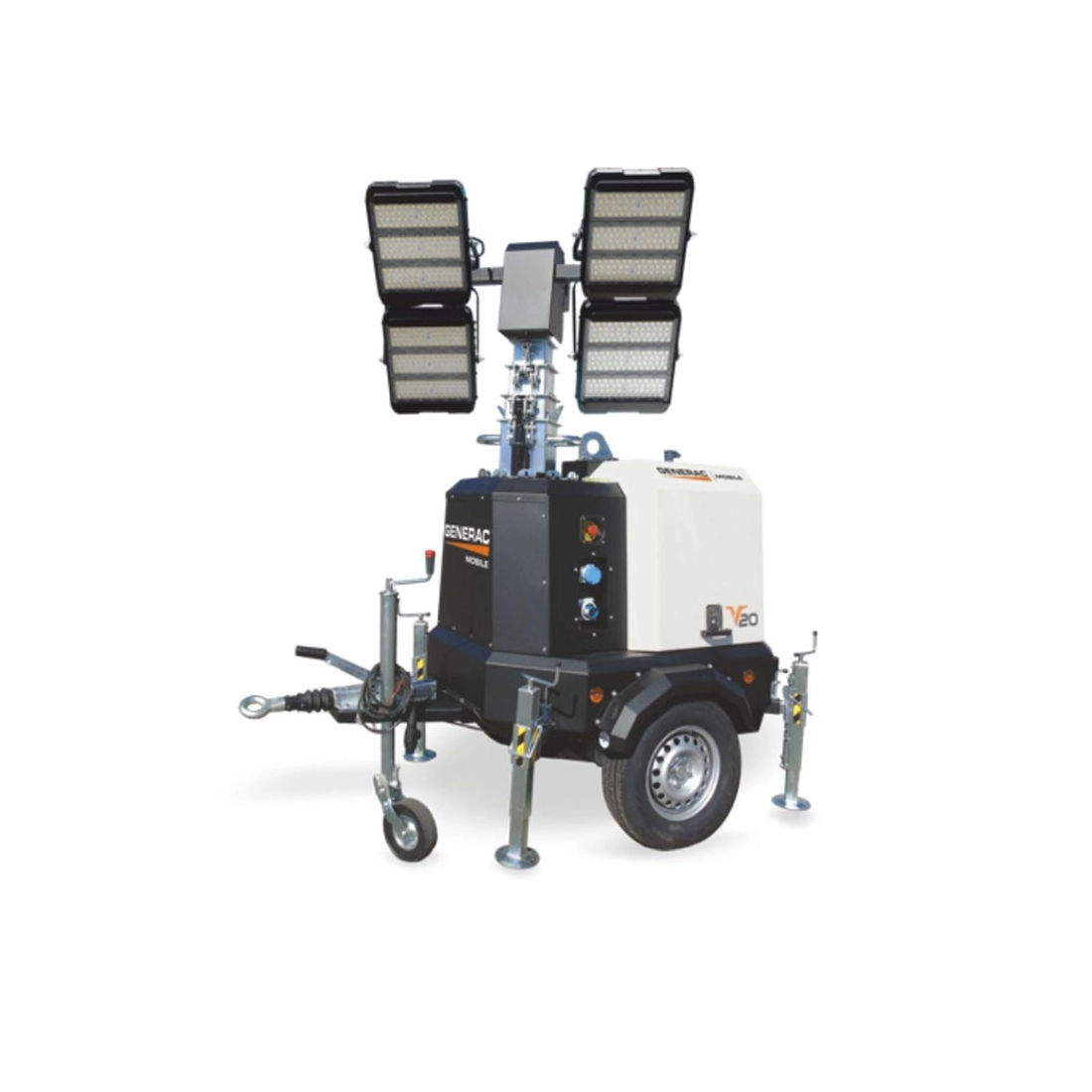

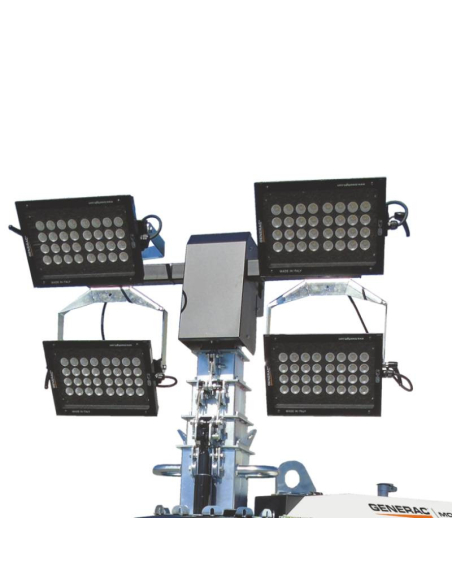

GENERAC LT V20 Y2 is the perfect solution for you. a mobile light tower equipped with 4 320W LED projectors that can be lifted up to a height of 8.5 m, capable of illuminating an area of 4500 m².

The lighthouse tower is located in the center of the city. equipped with a Yanmar 2TNV-70 diesel powered engine, which in combination with the large 100 l tank can guarantee an autonomy of 140 hours of work. The GENERAC LT V20 Y2 has an extremely silent operation, in fact it has a sound emission of only 58 dB(A) at 7m.

Equipped as standard with the GTL01 digital control, specifically designed to manage each tower function to improve ease of operation. of use. To improve safety, the GENERAC LT V20 Y2 supplies its projectors with low voltage 48V.

Thanks to the 230 V socket supplied It is possible to connect one GENERAC LT V20 Y2 to another to use two lighting towers with a single motor, thus saving fuel and money.

Three doors for easy access, two of which are “gull-wing” allow full access to the engine for safe and fast maintenance. A rear door for access to the digital control panel. The special shape of the adjustable stabilizers allows the operator to level the V20 in seconds.

TECHNICAL SPECIFICATIONS GENERAC LT V20 Y2

Are you looking for a lighting tower with different technical characteristics? HERE you can find the entire range of GENERAC lighting towers or other specialized brands.

Non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
