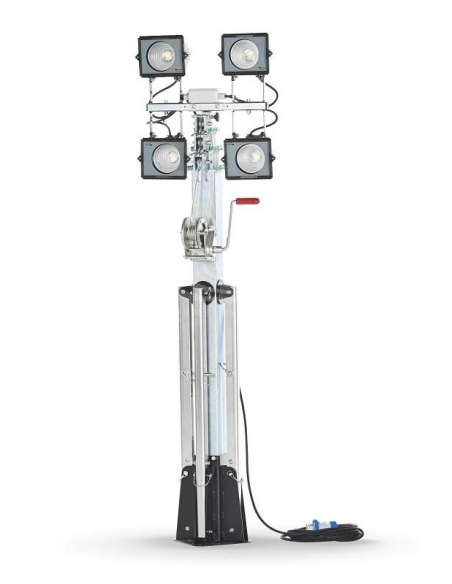

ITALTOWER MT 70 4x320 W LED

ITALTOWER MT 70 4x320 W LED
search
  • ITALTOWER MT 70 4x320 W LED
  • ITALTOWER MT 70 4x320 W LED
  • ITALTOWER MT 70 4x320 W LED
ITALTOWER
mt70-320 /
New product

OUT OF PRODUCTION

Phase: Monophase
Voltage: 230 V
Floodlights: 4x320 W LED
Illuminated area: 4300 m²
Lifting system: Manual lifting system
Maximum height: 7 m
Open dimension: 2200x2200x7300 mm
Closed dimension: 350x350x2500 mm
Weight: 117 Kg

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Type of lamps
LED
Lamps
4 x 320 W
Telescopic pole
Vertical
Illuminated area (m²)
4300
Lifting System
Manual lifting system
Maximum height (m)
7
Open size (mm)
2200 x 2200 x 7300
Lenght closed (mm)
350
Width closed (mm)
350
Height closed (mm)
2500
With generator / Without generator
Without generator
Transportability
Stationary
Stability to wind (Km/h)
60
Weight (Kg)
117
Details

The 5.5 and 7m variants combined with the 57,150 or 320W ledlights will allow you to have a wide choice of solutions depending on the application. The lightness of MT-tower, moreover, will allow you to move it easily and thanks to the 4 feet you will be able to illuminate, in every occasion, what you want.

Technical Specifications
- Lighting tower without internal generator with manual lifting system
- 4-section galvanized steel telescopic pole
- Epoxy powder painted structure for outdoor application
- 360° mast rotation
- Wire for powering ledlights with CEE socket
- 4-hole fixing plate for application on a generator or external support
- 4 feet at the base for complete stability

Adjustable and retractable stabilizers
Designed to optimize available container room.



Column steel headlights
Cold electrolytic zinc plating against rust.



Steel lifting cable
Composed by 133 micro-cables anti-torsion. Improving resistance and extending maintenance.



Polizene profiles
To cut down friction and extend components life.



Not binding images and technical data.
