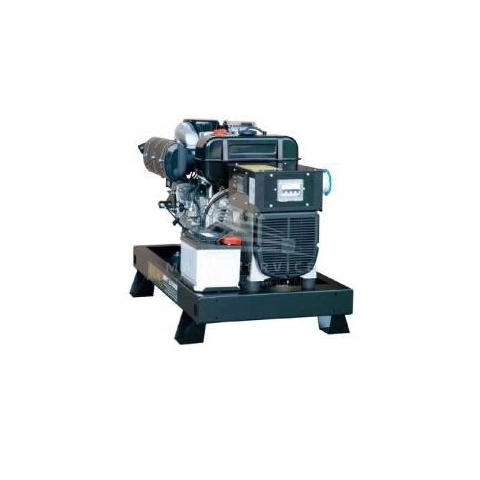

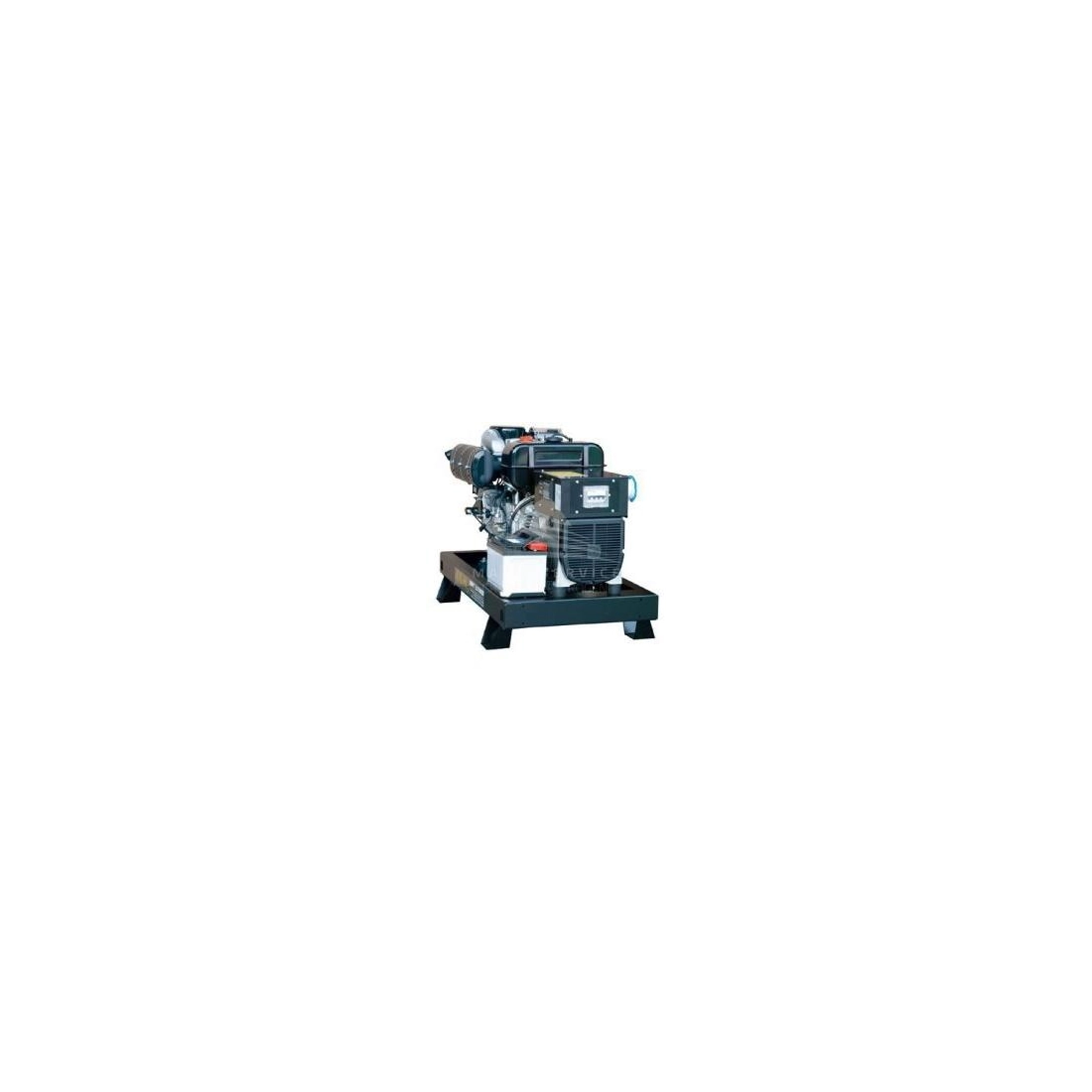

CGM 12.5DE - APERTO CON CENTRALINA AUTOMATICA

CGM 12.5DE - APERTO CON CENTRALINA AUTOMATICA
CGM 12.5DE - APERTO CON CENTRALINA AUTOMATICA
CGM 15DE APERTO MANUALE /

OUT OF PRODUCTION

Download Technical data sheet CGM 15DE

Phase
Single phase
Protection degree
IP55
Height (mm)
800
Length (mm)
1100
Starting system
Electric
Width (mm)
650
Engine manufacturer
Kohler
Engine
KOHLER 25LD 425/2
Poles
2
Sockets configuration
N.1 x 230V 63A 3P CEE / N.1 x 230V 16A 3P CEE
Cooling
Air
Maximum power single phase (KW)
13.2
Continuous power single phase (KW)
12
Maximum power single phase (KVA)
16.5
Continuous power single phase (KVA)
15
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Engine capacity (cm³)
954
Number cylinders
2
Oil capacity (L)
2.5
Alternator
Linz, brushless
Fuel tank capacity (L)
7
Consumption (L/h)
3.2
Running time (h)
2.2
Acoustic pressure
82 dB(A) at 7 m
Dry weight (Kg)
190
Silenced
No
Super silenced
No
ATS Switch device
No ATS
Voltage regulator
Capacitor
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
