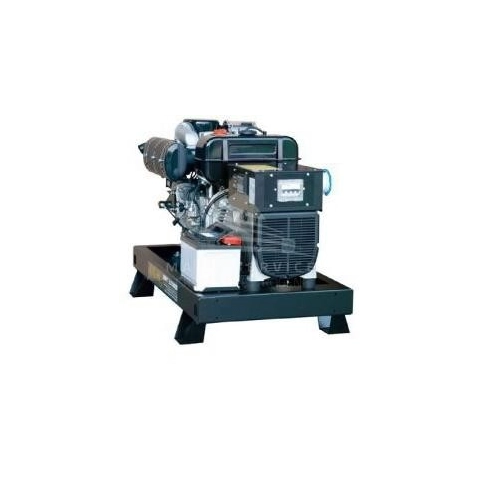

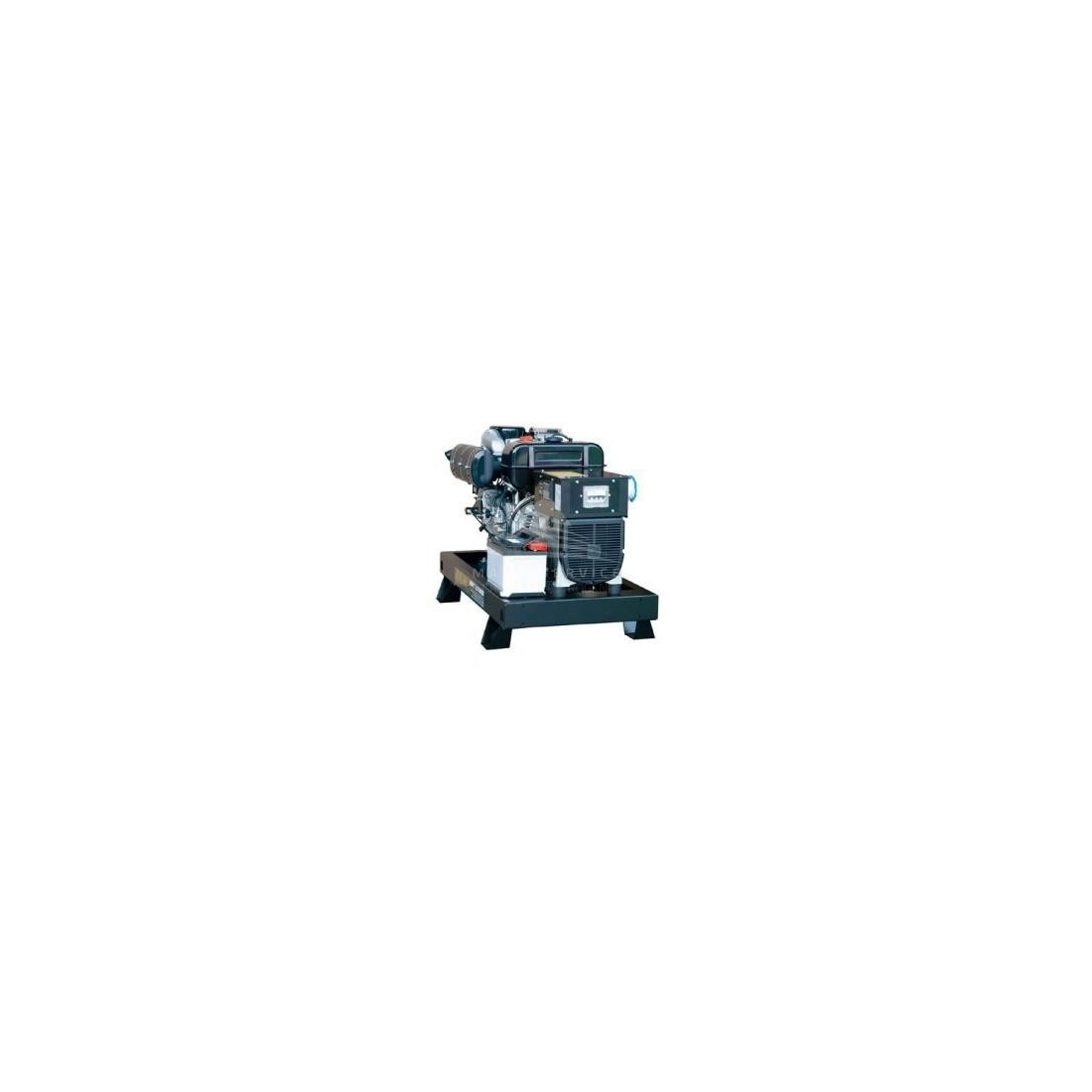

CGM 22DET - APERTO CON CENTRALINA AUTOMATICA

Reference CGM 22DET APERTO AUTOMATICO /

OUT OF PRODUCTION

Potenza massima trifase: 19.4 KW
Potenza uso continuo trifase: 17.6 KW
Potenza massima trifase: 24.2 KVA
Potenza uso continuo trifase: 22 KVA
Carburante: Diesel
Tensione: 230 V / 400 V
Frequenza: 50 Hz
Fattore di potenza cos: 0.8
Motore: KOHLER 9LD 625/2
Cilindrata cc: 1248
Giri motore: 3000 giri/min
Capacità Olio: 2.8 Lt
Numero ilindri: 2
Sistema di raffreddamento: Aria
Avviamento: Elettrico
Alternatore: Linz, con spazzole
Poli: 2
Sistema regolatore di tensione: Compound
Consumo: 4.2 Lt/h al 75% del carico
Capacità serbatoio: 10 Lt
Autonomia: 2.38 h al 75% del carico
Pressione acustica: 82 dB(A) a 7 m
Lunghezza: 1100 mm
Larghezza: 650 mm
Altezza: 800 mm
Peso: 245 Kg

Download Technical data 22DET

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 19.4
Continuous power three phase (KW): 17.6
Maximum power three phase (KVA): 24.2
Continuous power three phase (KVA): 22
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Kohler 9LD 625/2
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 1248
Number cylinders: 2
Oil capacity (L): 2.8
Cooling: Air
Alternator: With brushes
Poles: 2
Fuel tank capacity (L): 10
Consumption (L/h): 4.2
Running time (h): 2.3
Acoustic pressure: 82 dB(A) at 7 m
Length (mm): 1100
Width (mm): 650
Height (mm): 800
Dry weight (Kg): 245
Silenced: No
Super silenced: No
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Kohler

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
