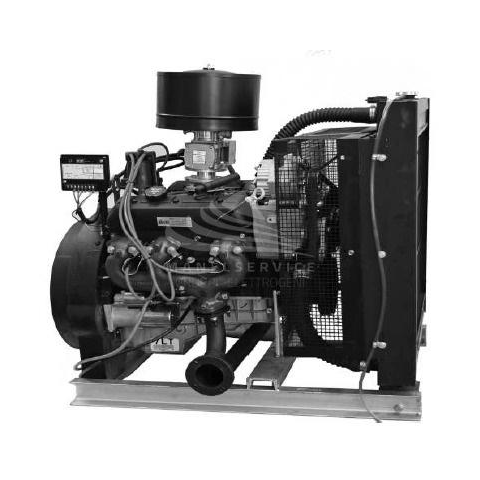

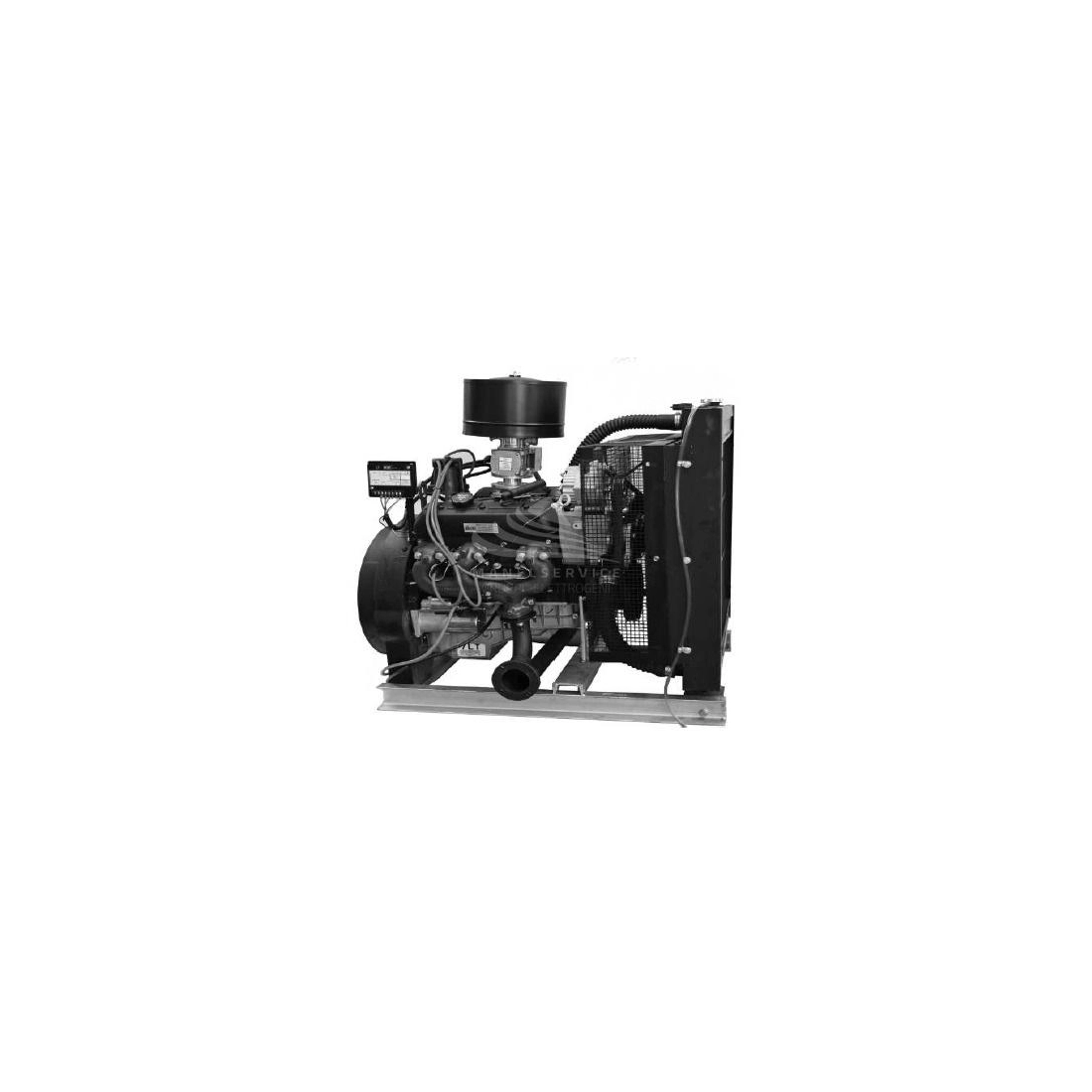

CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE


Phase
Single phase / Three phase
Length (mm)
1800
Starting system
Electric
Width (mm)
900
Engine manufacturer
General Motors
Engine
General Motors RMG 4300
Poles
4
Cooling
Water
Maximum power three phase (KW)
35.2
Continuous power three phase (KW)
32
Maximum power three phase (KVA)
44
Continuous power three phase (KVA)
40
Fuel
Natural Gas
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
4300
Number cylinders
6
Alternator
Marelli, brushless
Bore x stroke (mm)
101.6 x 91.4
Natural Gas consumption (m³/h)
13.5 at 100% of the load
Dry weight (Kg)
880
Silenced
No
Super silenced
No
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
