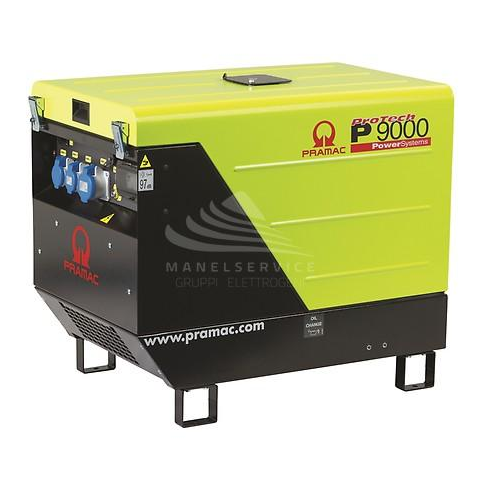

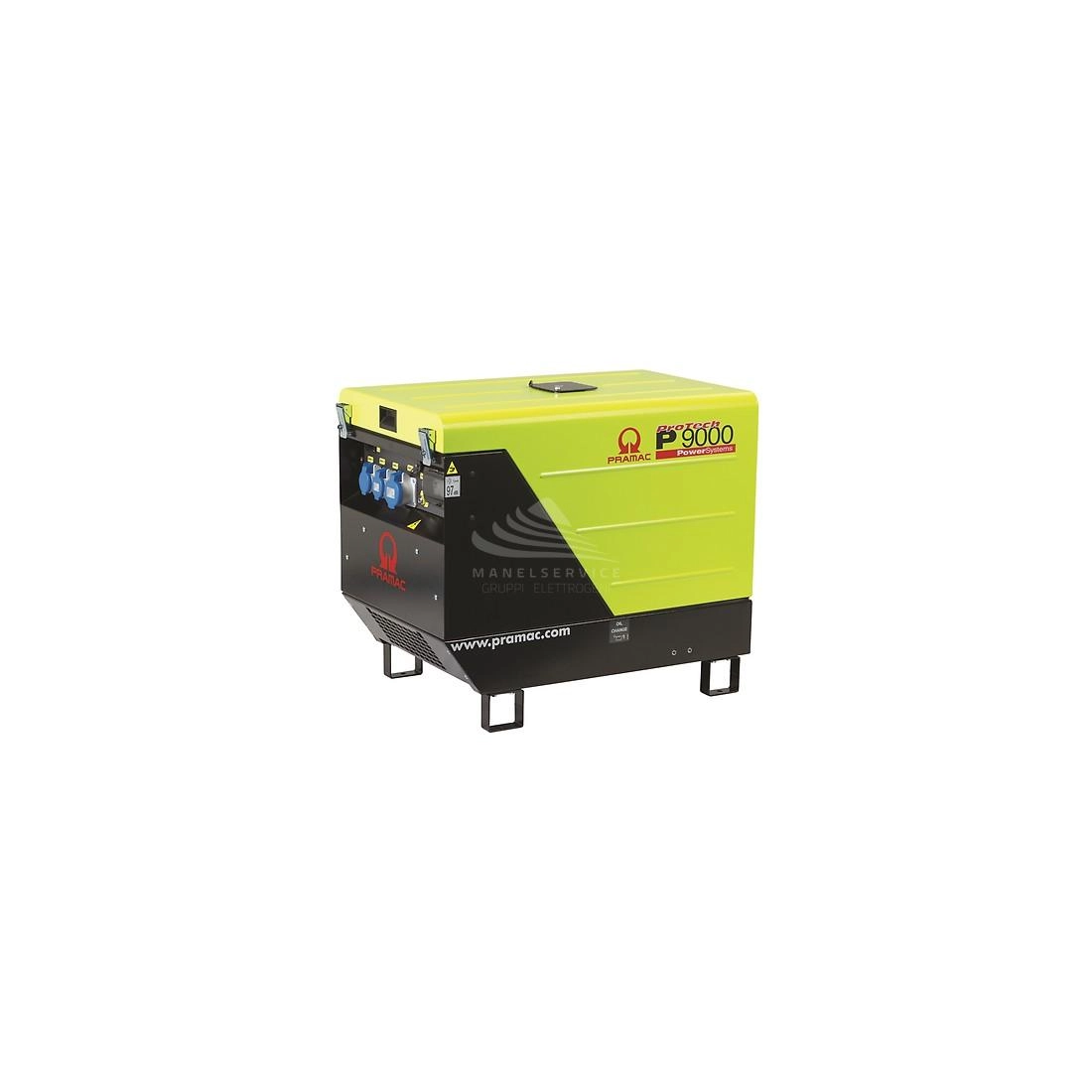

PRAMAC P9000 SINGLE PHASE DPP AVR


Phase
Single phase
Height (mm)
826
Length (mm)
990
Starting system
Electric
Width (mm)
602
Engine manufacturer
Lombardini
Engine
Lombardini 25LD330, naturally aspirated
Poles
2
Sockets configuration
1 x 230V 16A 2P+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V 16A SCHUKO
Cooling
Air
Maximum power single phase (KW)
7.9
Continuous power single phase (KW)
6.8
Maximum power single phase (KVA)
8.8
Continuous power single phase (KVA)
7.6
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Speed governor
Mechanical
Engine capacity (cm³)
654
Oil capacity (L)
1.8
Alternator
Brushless
Fuel tank capacity (L)
24
Consumption (L/h)
2.17 at 75% of the load / 2.90 at 100% of the load
Running time (h)
11.06 at 75% of the load / 8.25 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
69 dB(A) at 7 m
Dry weight (Kg)
204
Silenced
Yes
Super silenced
No
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
