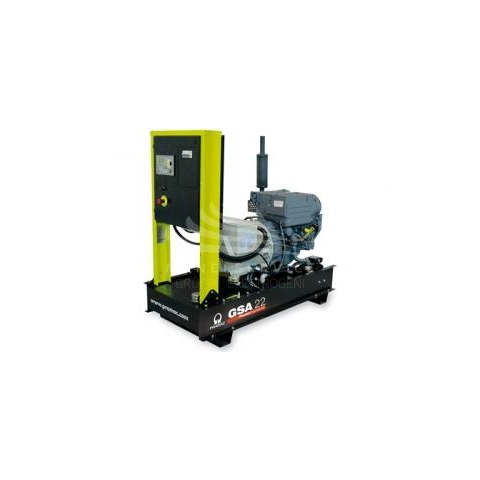

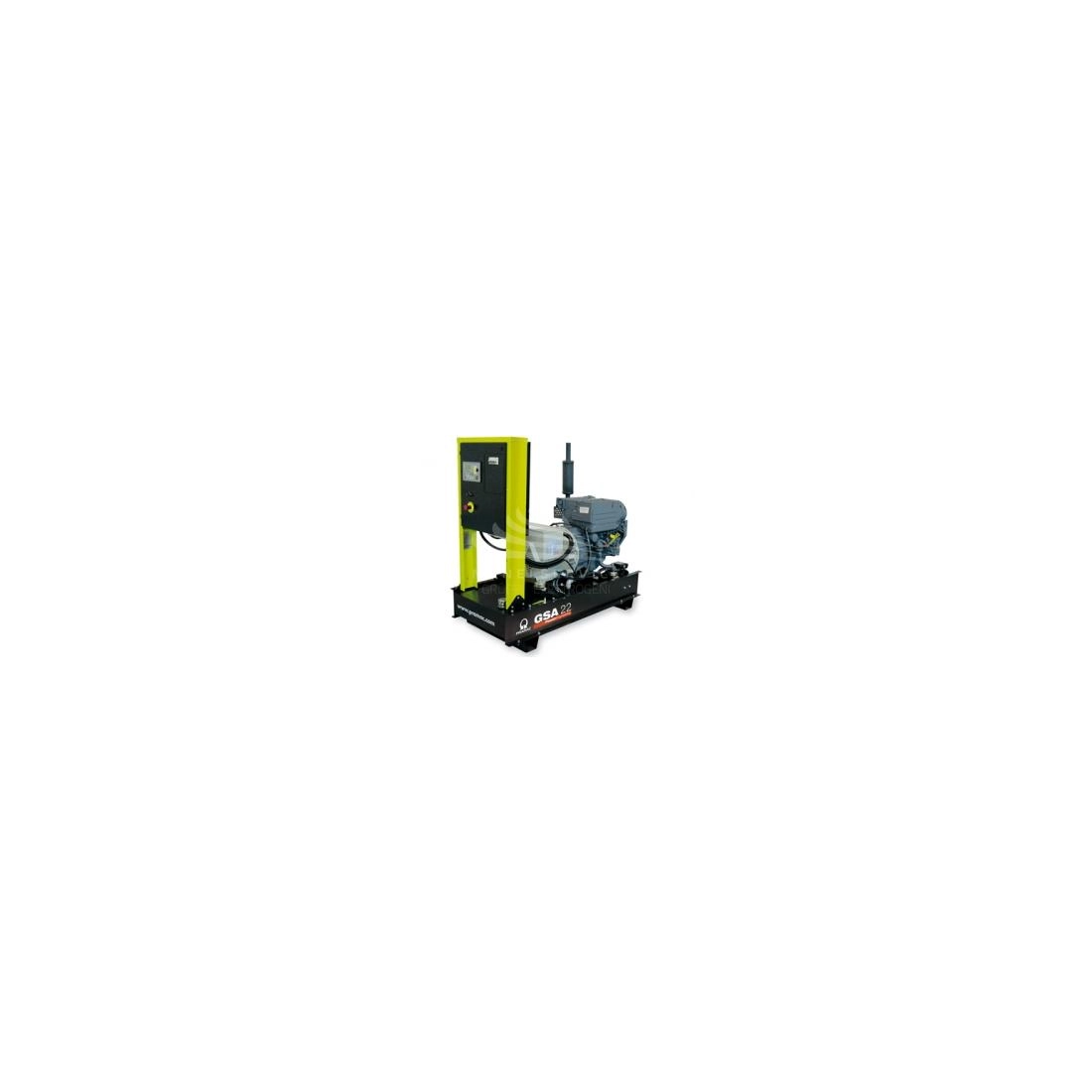

PRAMAC GSA42D

Reference SG400TDAY00 /

OUT OF PRODUCTION

Potenza Consumo uso continuativo: 41 kva
Tipo carburante: Diesel
Capacità serbatoio carburante: 91 LT
Autonomia: 12.5 h al 75% del carico
Dimensioni: L 180 cm x L 75 cm x A 171 cm
Peso a secco: 776 Kg

Download Scheda tecnica GSA42D APERTO Download Technical data GSA42D OPEN

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 33.66
Continuous power three phase (KW): 32.78
Maximum power three phase (KVA): 42.08
Continuous power three phase (KVA): 40.98
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: Deutz AG F4L912, naturally aspirated
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 11
Cooling: Air
Alternator: Mecc Alte ECO/P32-3S/4, brushless
Poles: 4
Fuel tank capacity (L): 91
Consumption (L/h): 7.3 at 75% of the load / 10 at 100% of the load
Running time (h): 12.5 at 75% of the load / 9.1 at 100% of the load
Length (mm): 1800
Width (mm): 750
Height (mm): 1710
Dry weight (Kg): 776
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No

Brand

Motore Diesel. Raffreddamento ad aria. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
