WFM SE12000-MHE generator set AVR

Reference 04070

Single-phase maximum power: 8 kW
Single-phase maximum apparent power: 10 kVA
Fuel: Petrol
Voltage: 230 V
Frequency: 50 Hz
Engine: Honda GX690
Starting: Electric
Fuel consumption: 5.8 L/h at 100% load
Length: 1070 mm
Width: 560 mm
Height: 920 mm
Weight: 210 kg

Download Scheda tecnica SE12000-MHE AVR Download Technical data SE12000-MHE AVR Download Scheda tecnica SE12000-MHE GAS

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 8
Maximum power single phase (KVA): 10
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE
Engine: HONDA GX690
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 690
Number cylinders: 2
Oil capacity (L): 1.8
Cooling: Air
Fuel tank capacity (L): 20
Consumption (L/h): 5.8 at 100% of the load
Running time (h): 3.44 at 100% of the load
Acoustic power: 92 dB(A)
Acoustic pressure: 67 dB(A) at 7 m
Length (mm): 1070
Width (mm): 560
Height (mm): 920
Dry weight (Kg): 210
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

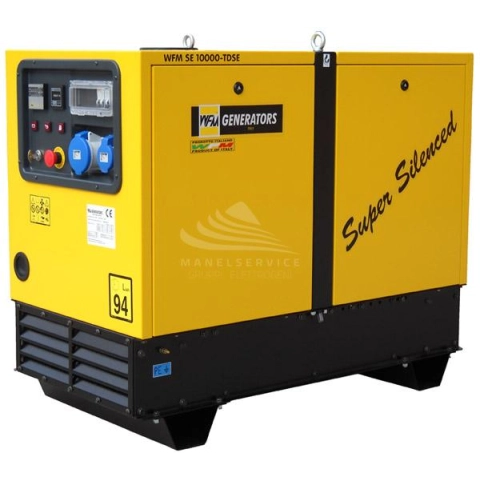

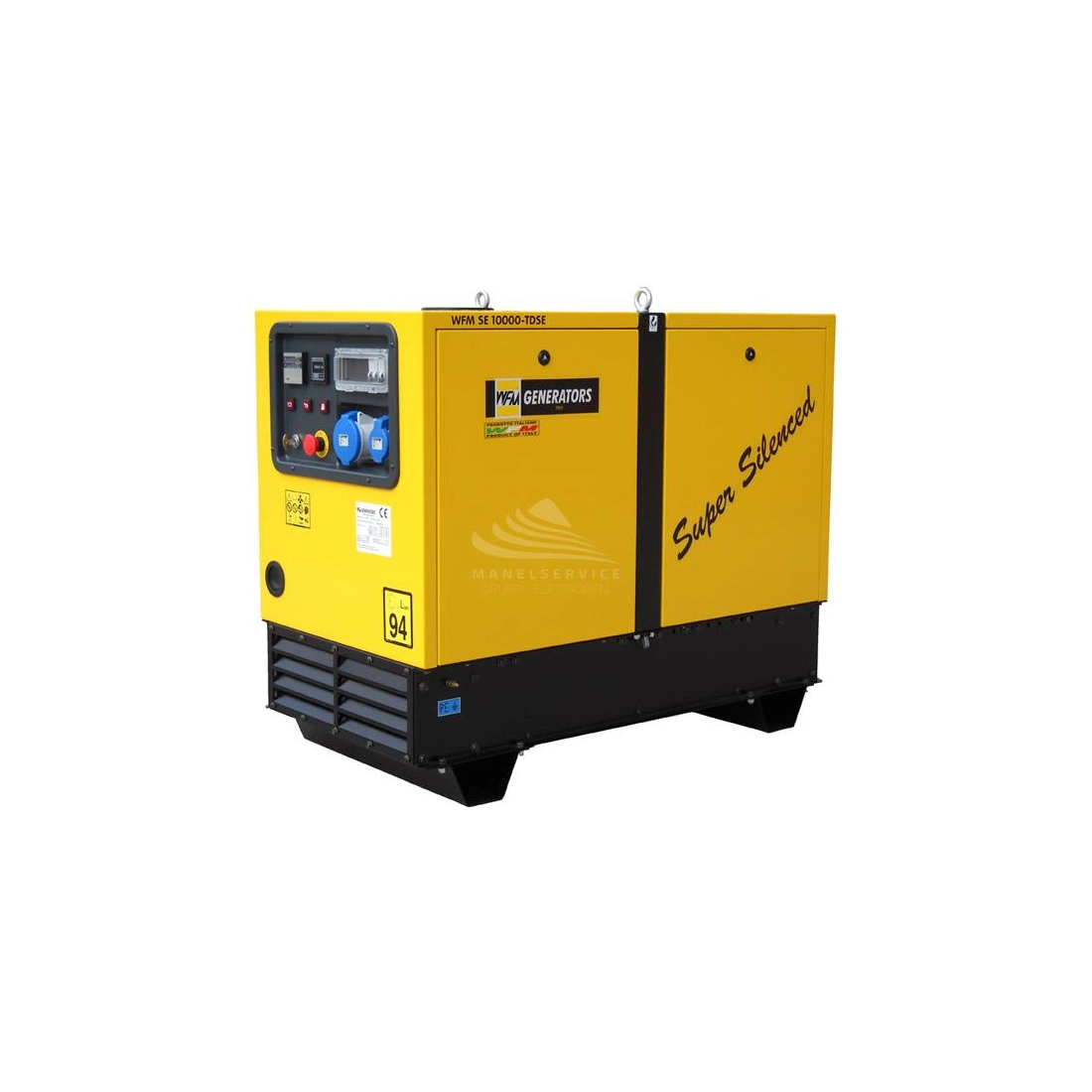

WFM SE12000-MHE GENERATOR SET AVR

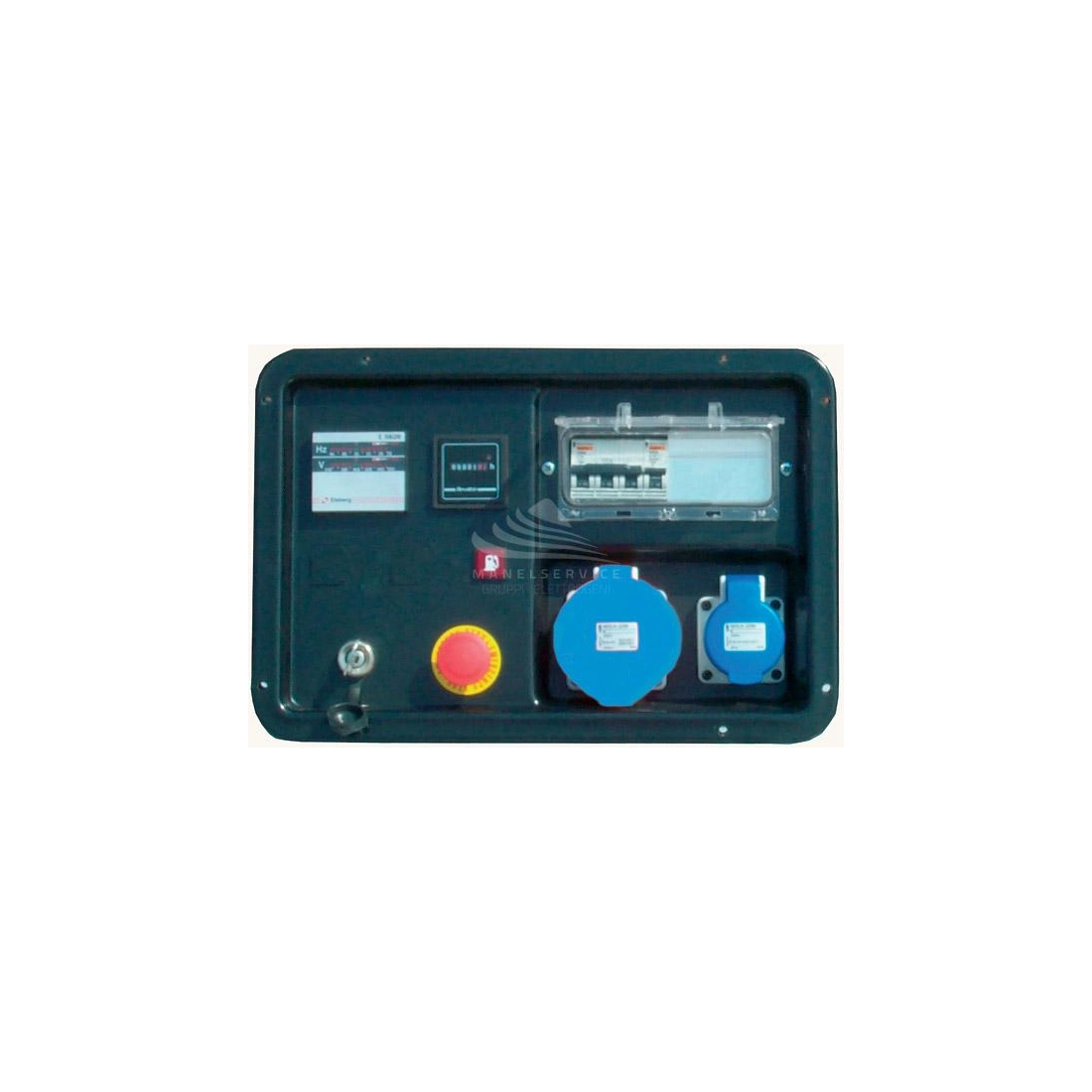

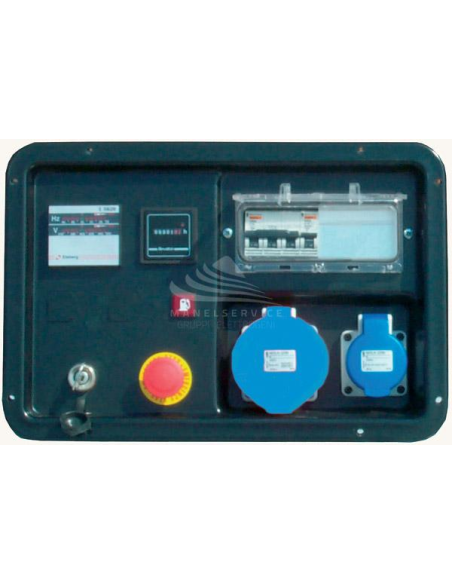

The WFM SE12000-MHE generator set AVR, with either a Honda petrol engine or a Lombardini diesel engine, is available in open-frame base version or in soundproofed frame, with power ratings from 4.5 to 12 kVA, single-phase or single-/three-phase, 3000 rpm, air-cooled, with recoil (self-retracting) or key start. It includes a battery and an electrical panel with sockets and standard protections.
The WFM SE12000-MHE generator set AVR is essential for sensitive electronic loads, as all models are equipped with an output voltage stabilizer with regulation better than ±1%.
Compliant with Directive 2000/14/EC of 01/01/2006 regarding noise emissions (depending on model).

WFM SE12000-MHE generator set AVR – Recommended for domestic and professional users connecting highly sensitive electronic devices:
- Inverter welders
- Power tools with electronic boards
- Electronics, battery chargers
- Plasma TVs, computers
- Latest-generation boilers
- Telephone switchboards
- Alarm systems
- UPS systems
- Hi-Fi systems

Main features – WFM SE12000-MHE generator set AVR:
- Open or soundproof protective frame
- Original Honda or Lombardini engine
- Low oil level protection
- Silencing muffler
- Alternator from a leading Italian brand
- Recoil start or electric start with 12V battery supplied with acid
- Full-load test with test certificate
- User manual compliant with safety standards

Are you looking for a generator similar to the WFM SE12000-MHE but with different features? CLICK HERE to discover our full range.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
