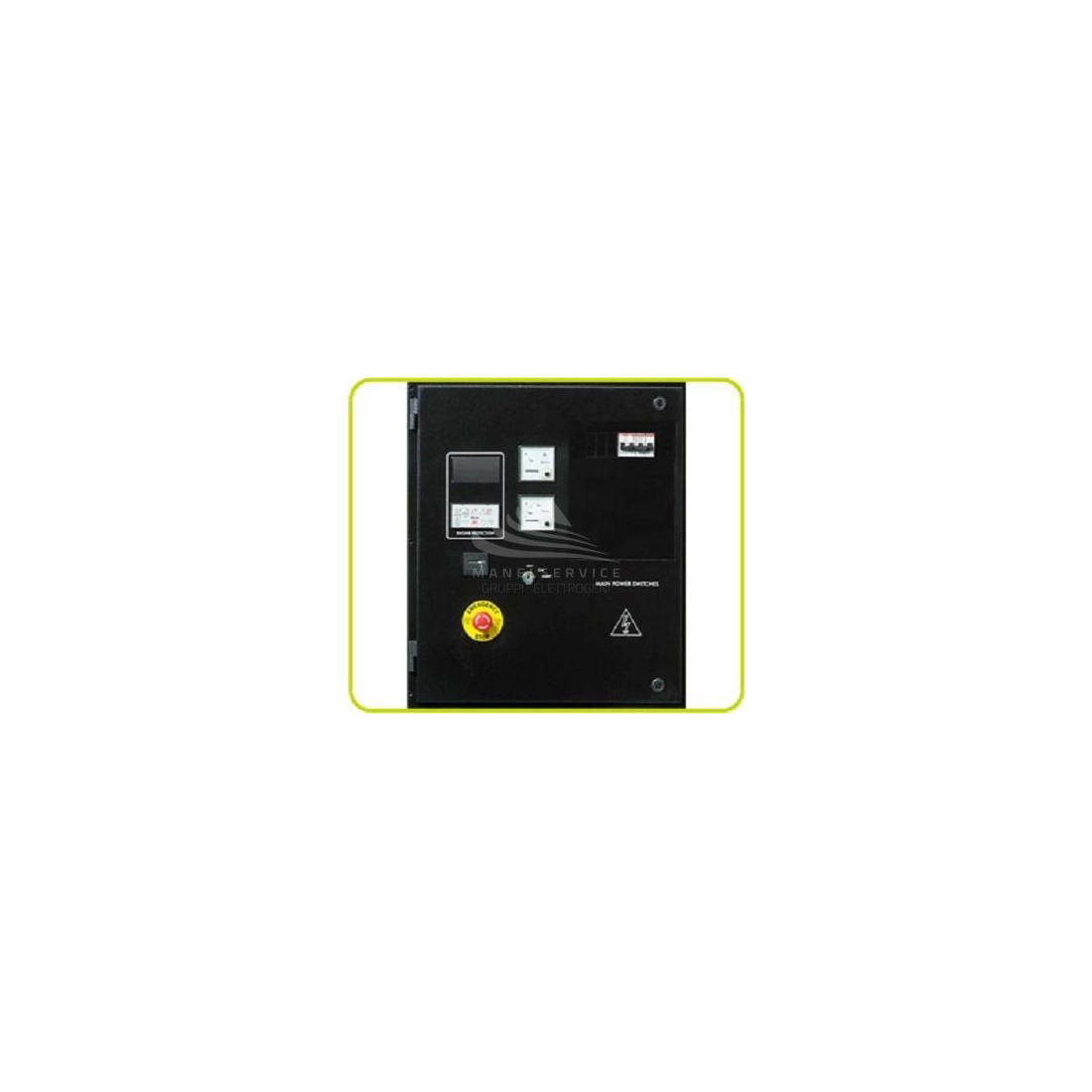

PRAMAC GSL30D APERTO CON QUADRO COMANDO MANUALE (MCP)

Reference SG290TDAT00 /

OUT OF PRODUCTION

Maximum power Three-phase: 36.68 KW
Power continuous use Three-phase: 34.82 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: DEUTZ F4M 2011 STAGE II
Starting: Electric
Consumption: 10.9 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1100 mm
Weight: 611 Kg
AVR

Download

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 25.55
Continuous power three phase (KW): 24.31
Maximum power three phase (KVA): 31.94
Continuous power three phase (KVA): 30.39
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: Deutz AG F4L2011, naturally aspirated
Emissions Regulations: Stationary Use
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Air
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 91
Consumption (L/h): 5.7 at 75% of the load / 7.5 at 100% of the load
Running time (h): 15.9 at 75% of the load / 12.1 at 100% of the load
Length (mm): 1400
Width (mm): 750
Height (mm): 1700
Dry weight (Kg): 663
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
