PRAMAC GBW22Y APERTO CON QUADRO COMANDO MANUALE

Reference SH200TYAJ00 /

OUT OF PRODUCTION

Maximum power Three-phase: 15.48 KW
Three-phase continuous use power: 14.1 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98-IGPGE
STAGE III A
Starting: Electric
Consumption: 5 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 1000 mm
Weight: 507 Kg
Compound

Download Scheda tecnica GBW22Y APERTO Download Technical data GBW22Y OPEN Download Disegno installazione GBW22Y

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 15.48
Continuous power three phase (KW): 14.1
Maximum power three phase (KVA): 19.35
Continuous power three phase (KVA): 17.63
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

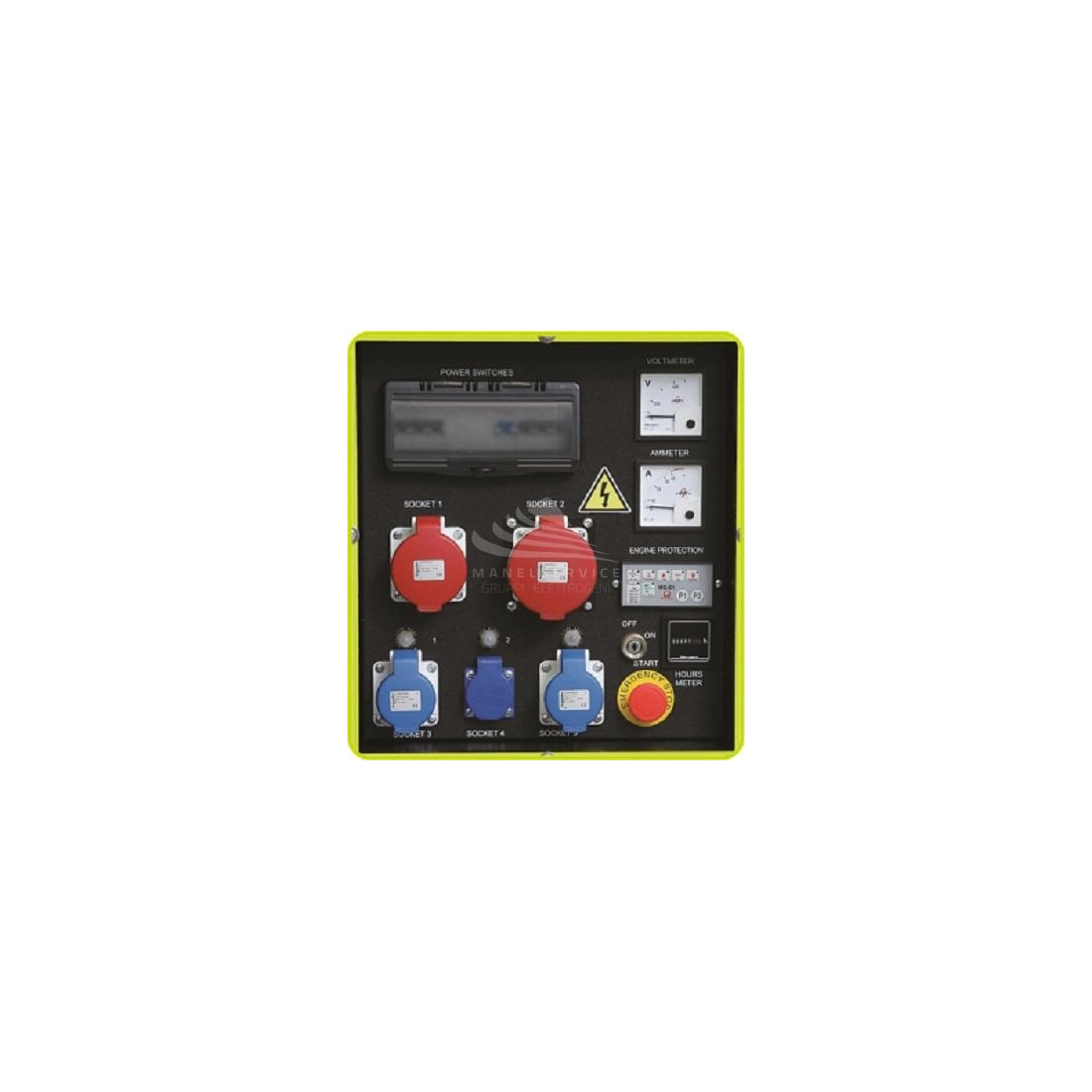

Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Emissions Regulations: Stage 5
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2190
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 7.4
Cooling: Water
Alternator: Linz E1S13MF, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 3.8 at 75% of the load / 5 at 100% of the load
Running time (h): 13.4 at 75% of the load / 10.1 at 100% of the load
Length (mm): 1600
Width (mm): 870
Height (mm): 1000
Dry weight (Kg): 507
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Yanmar

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
