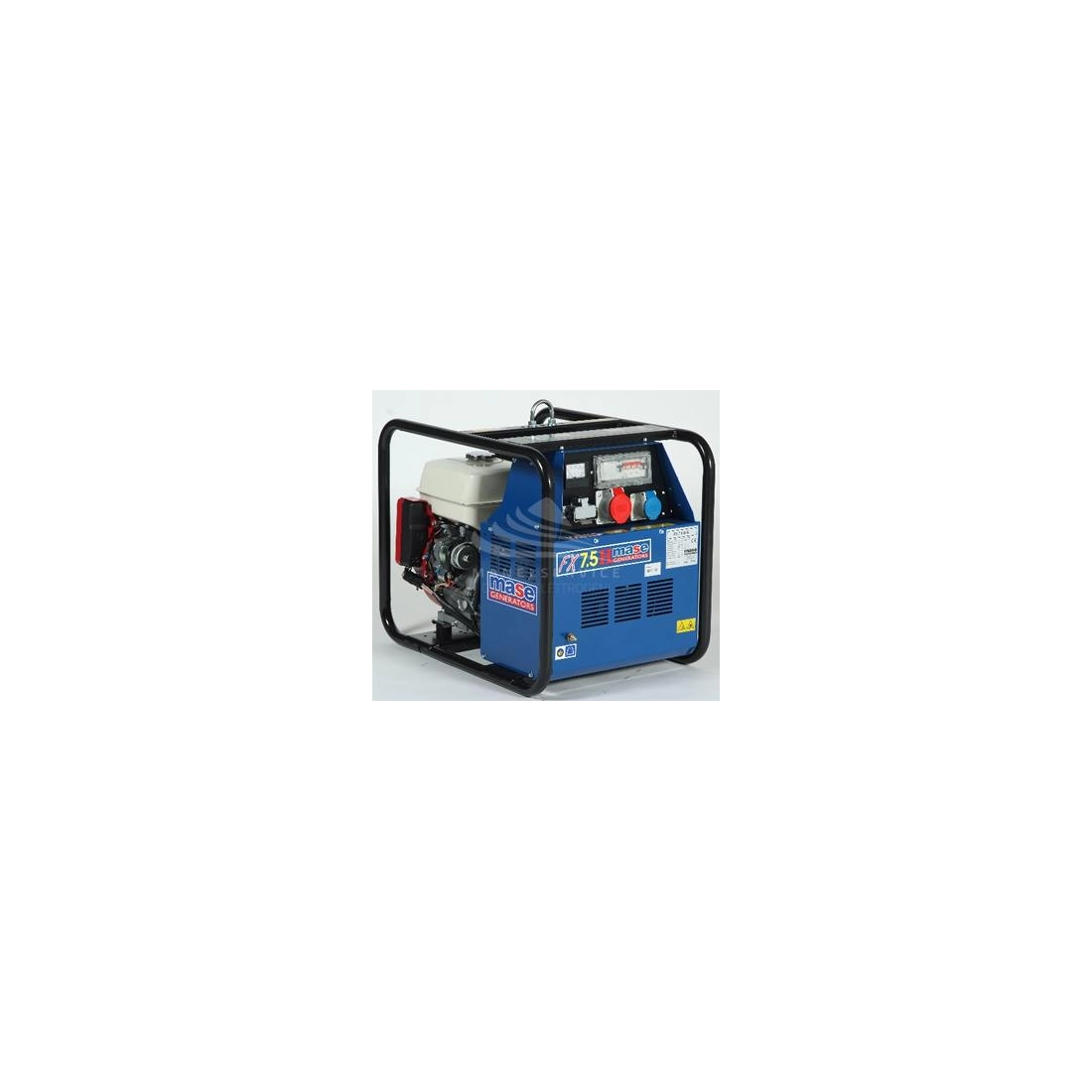

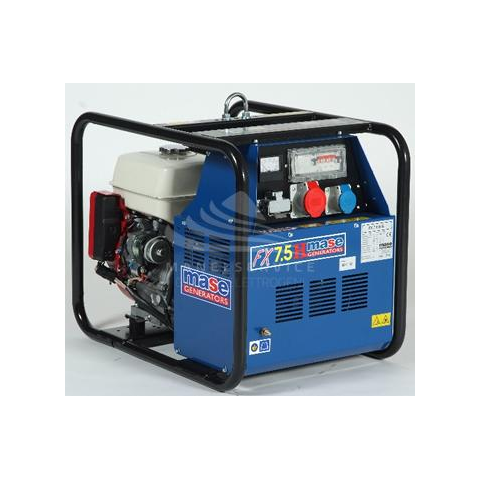

MASE FX 7.5 H/A STAGE V

Online only

Reference 003239

Maximum power Single-phase: 4.6 KW
Single-phase continuous power: 3.3 KW
Maximum power three-phase: 5.6 KW
Three-phase continuous use power: 5.2 KW
Fuel: Petrol
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Starter: Electric
Consumption: 2.6 Lt/h at 75% load
Length: 725 mm
Width: 515 mm
Height: 585 mm
Weight: 95 Kg
STAGE V

Download Scheda tecnica FX 7.5 H/A Download Technical data FX 7.5 H/A

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4.6
Continuous power single phase (KW): 3.3
Maximum power single phase (KVA): 4.6
Continuous power single phase (KVA): 3.3
Maximum power three phase (KW): 5.6
Continuous power three phase (KW): 5.2
Maximum power three phase (KVA): 7
Continuous power three phase (KVA): 6.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 2 x 230V 16A CE
Engine: Honda GX390, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Fuel tank capacity (L): 6.5
Consumption (L/h): 2.6 at 75% of the load
Running time (h): 2.5 at 75% of the load
Acoustic power: 100 dB(A)
Acoustic pressure: 75 dB(A) at 7 m
Length (mm): 725
Width (mm): 515
Height (mm): 585
Dry weight (Kg): 95
Silenced: No
Super silenced: No
ATS Switch device: Optional ATS
Voltage regulator: No
Engine manufacturer: Honda

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
