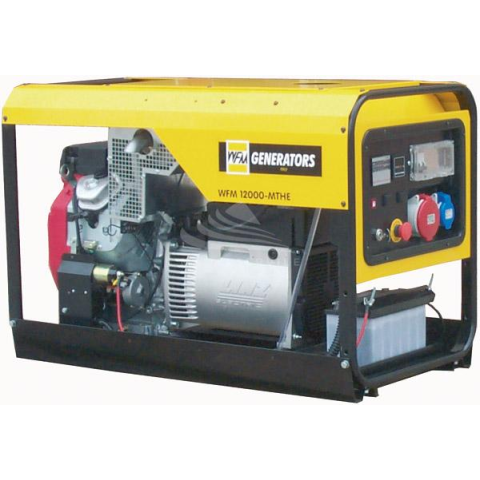

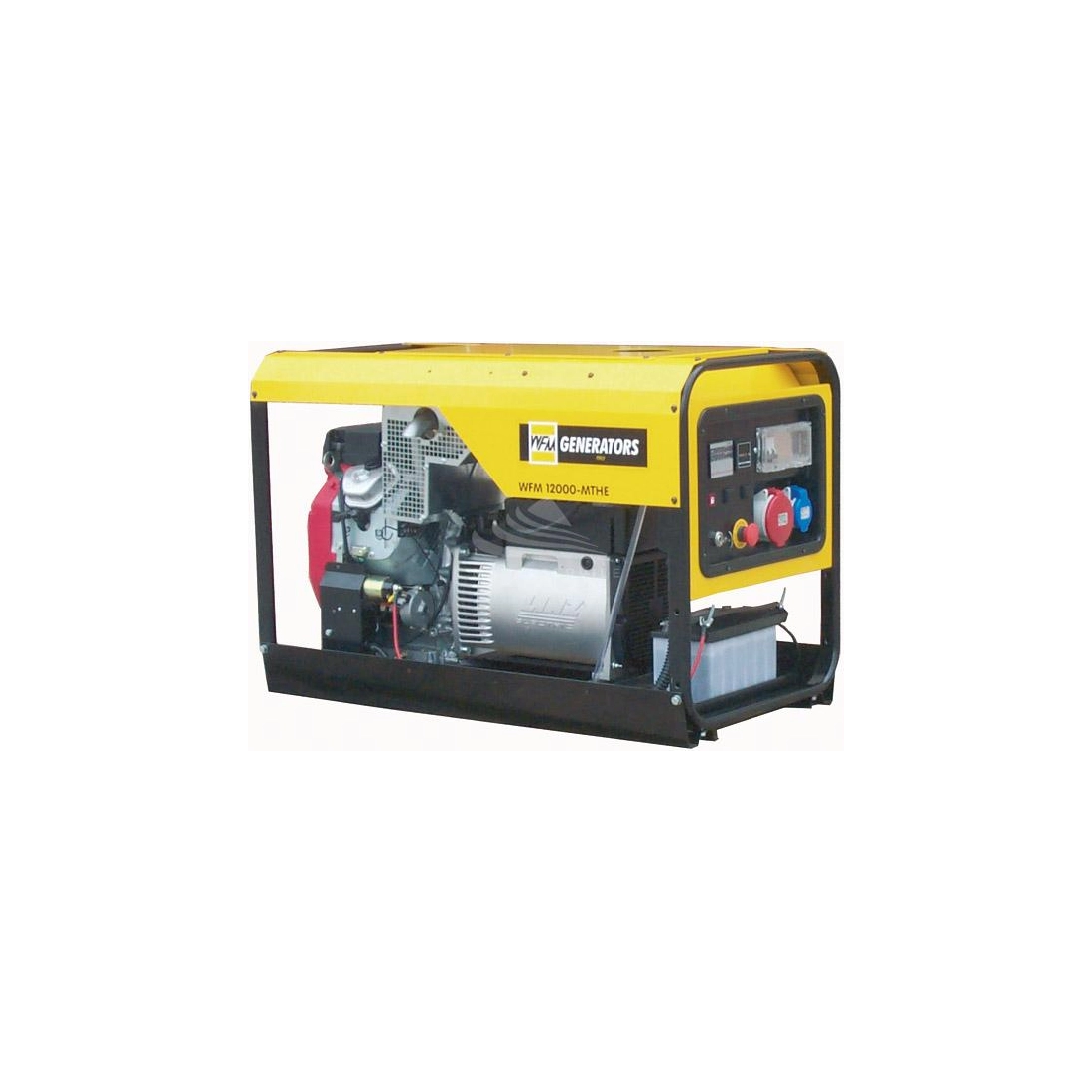

WFM SE12000-MTHE AVR


Phase
Single phase / Three phase
Height (mm)
670
Length (mm)
800
Starting system
Electric
Width (mm)
550
Engine manufacturer
Yanmar
Engine
Yanmar L100AE

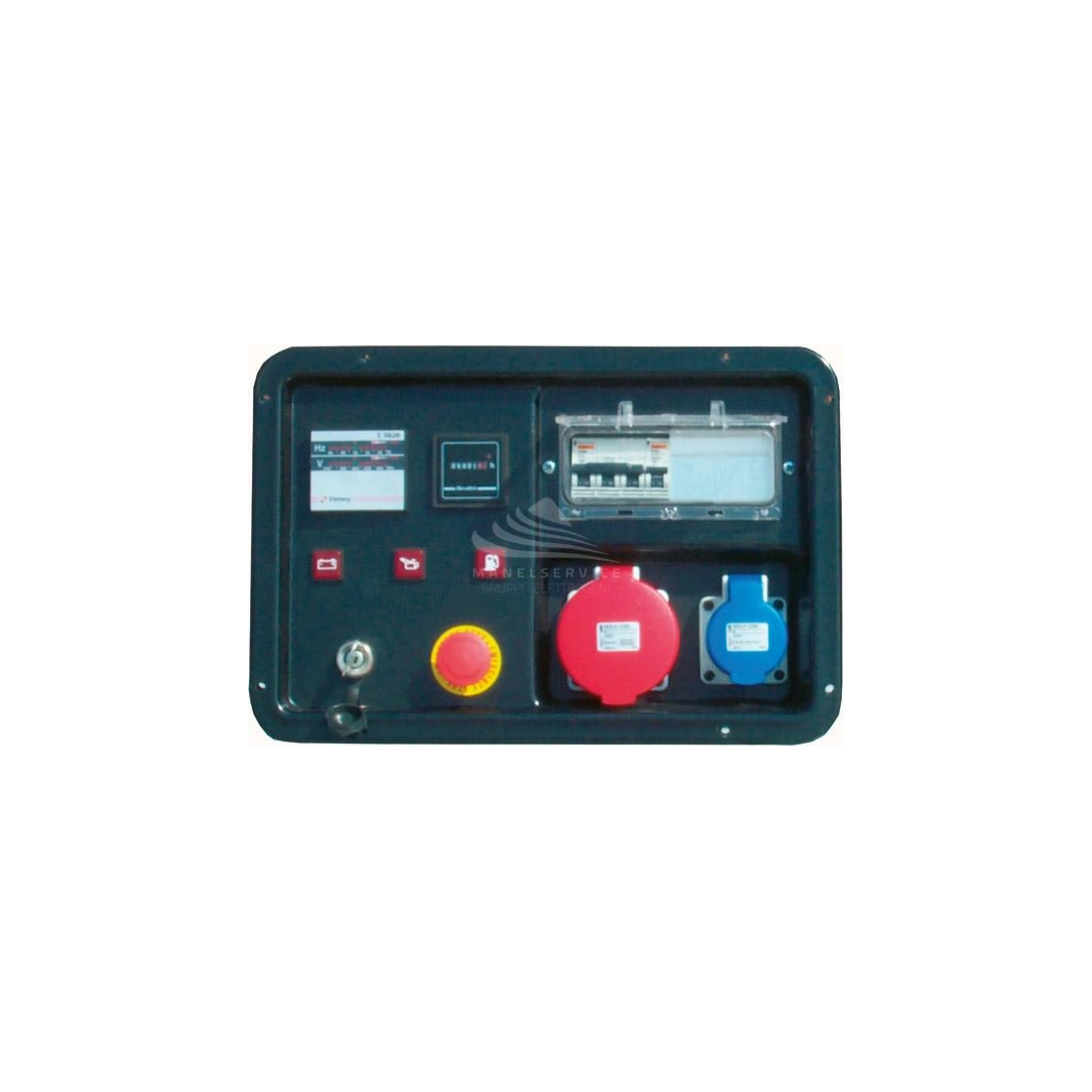

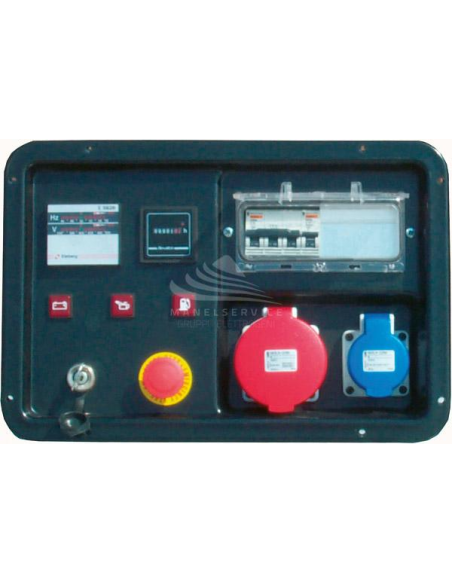

Sockets configuration
1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
Cooling
Air
Maximum power single phase (KW)
3
Maximum power single phase (KVA)
3.8
Maximum power three phase (KW)
5
Maximum power three phase (KVA)
6.3
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Engine capacity (cm³)
406
Number cylinders
1
Oil capacity (L)
2
Fuel tank capacity (L)
20
Consumption (L/h)
2 at 100% of the load
Running time (h)
10 at 100% of the load
Acoustic power
103 dB(A)
Acoustic pressure
78 dB(A) at 7 m
Dry weight (Kg)
123
Silenced
No
Super silenced
No
ATS Switch device
Optional ATS
Voltage regulator
No
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
