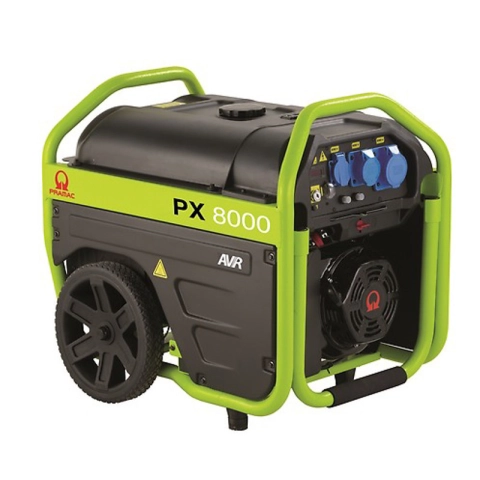

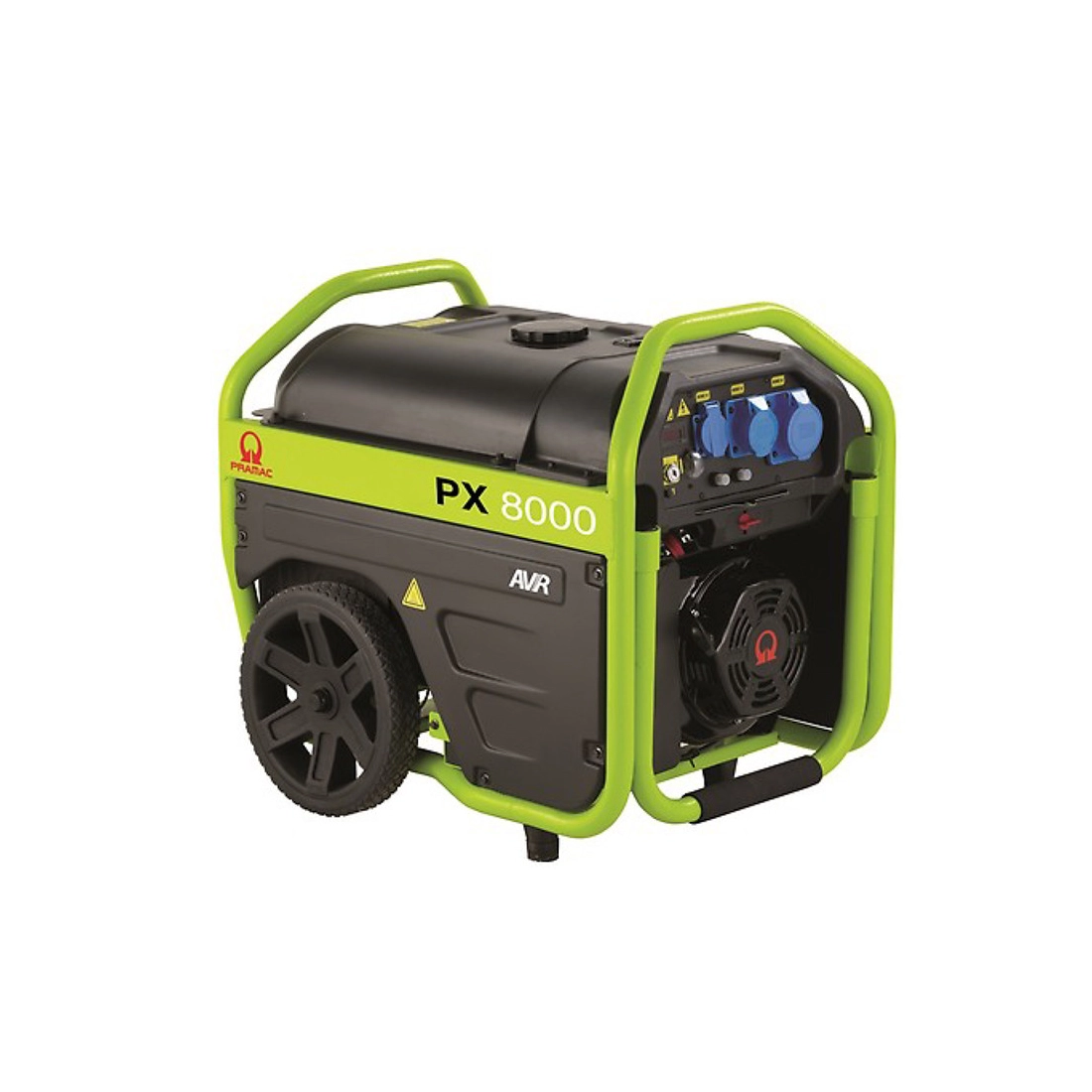

PRAMAC PX8000 SINGLE-PHASE GENERATOR 6 KVA AVR

PRAMAC PX8000 single-phase generator with Pramac SR190F gasoline engine, capable of delivering a power of 6 KVA, complete with AVR voltage regulator.

The PRAMAC PX8000 generator is equipped with electric start with battery, but it is also provided with a rope recoil starter for manual start. The generator alternator is with AVR voltage regulator.

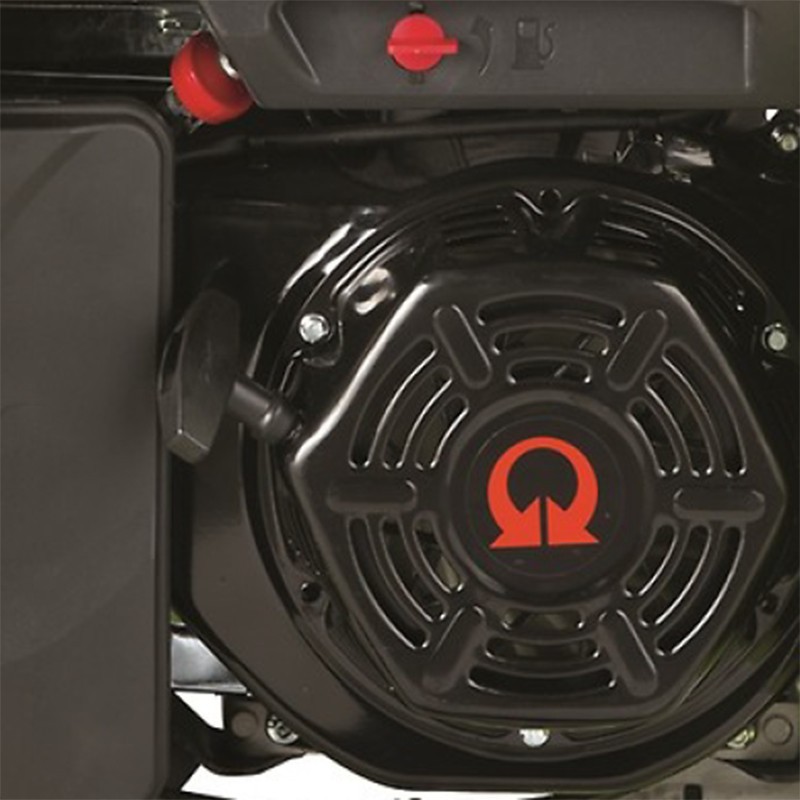

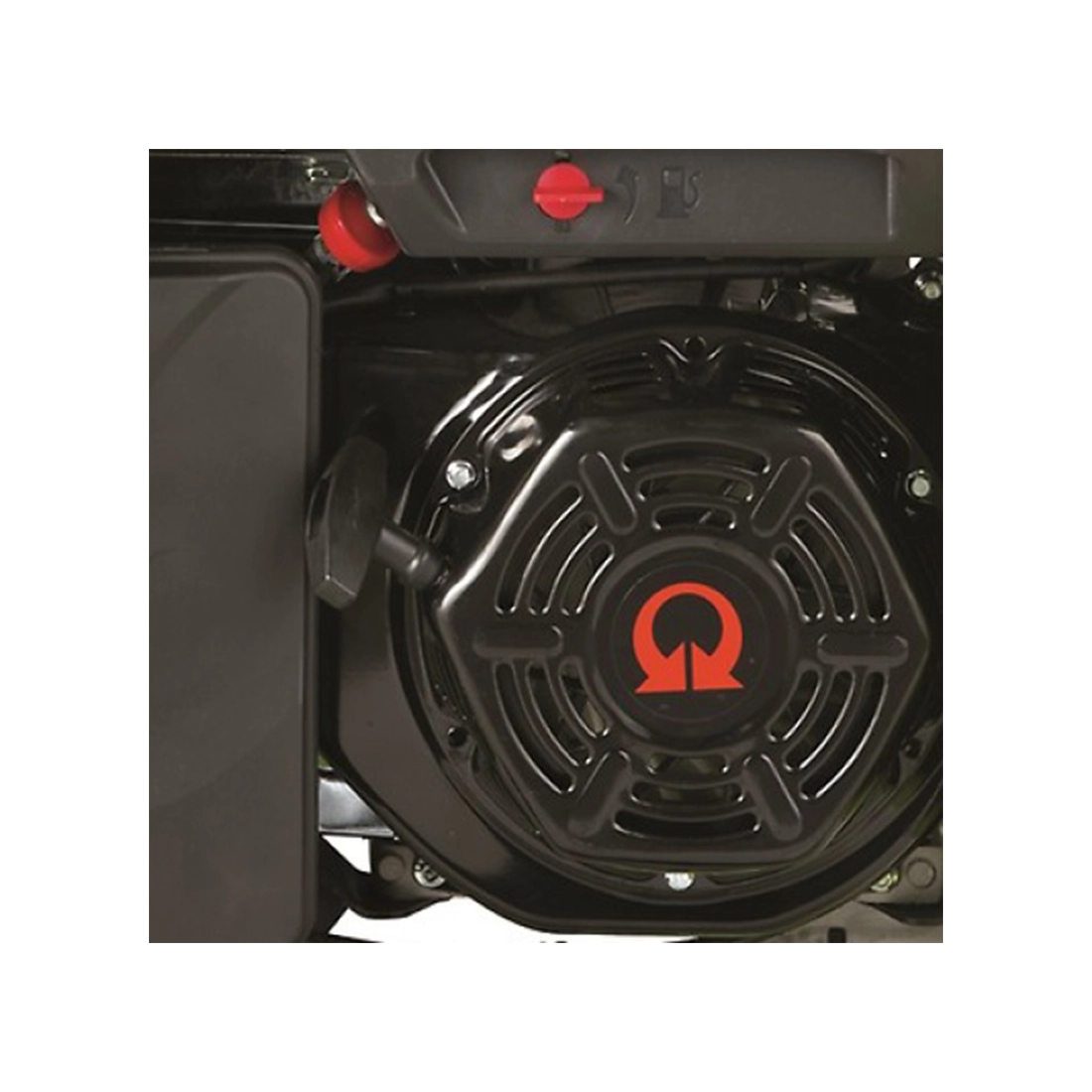

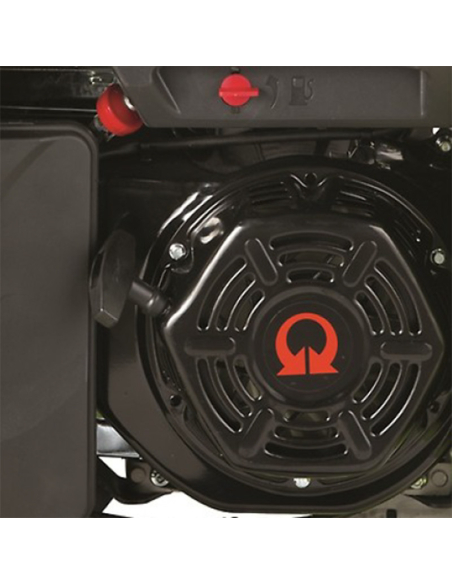

The gasoline engine Pramac SR190F makes the genset very reliable as it has been built and designed using high quality materials.

Due to its very low weight and compact size, it is convenient to carry where you need it most. This generator is suitable for outdoor use in small construction sites or for small outdoor work for hobby use.

The PRAMAC PX8000 represents one of the latest innovations of Pramac to ensure a high level of quality and performance at an attractive price. PRAMAC PX8000 generatior is compact, efficient and easy to use.

TECHNICAL FEATURES PRAMAC PX8000:

Phase type: Single-phase
Single-phase continuous power: 5 KVA / 4.5 KW
Maximum single-phase power: 6 KVA / 5.4 KW
Motor: Pramac SR190F
Motor speed: 3000 rpm
Emissions regulations: Not emitted
Starter: Electric / Manual
Fuel: Petrol
Voltage: 230 V
Frequency: 50 Hz
Socket panel: 1 x SCHUKO 230V 16A / 1 x 2P+E CEE 230V 16A / 1 x 2P+E CEE 230V 32A
Tank capacity: 27 l
Acoustic pressure: 69 dB(A) @ 7 m
Length: 727 mm
Width: 515 mm
Height: 670 mm
Dry weight: 94 kg
Displacement cm³: 420
Autonomy at 75% load h 13.50
Autonomy at 100% load h 10.15

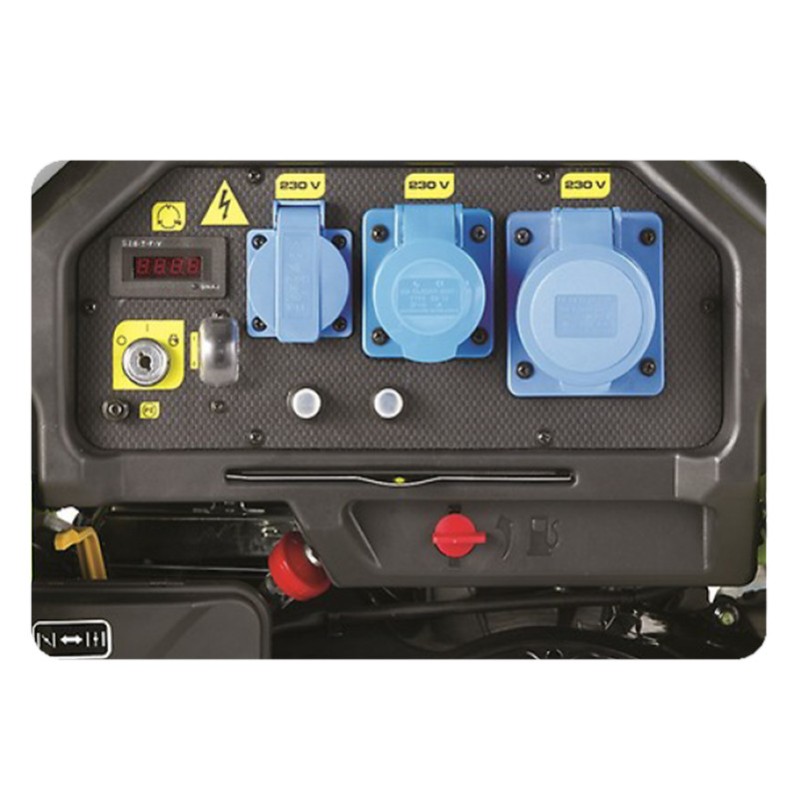

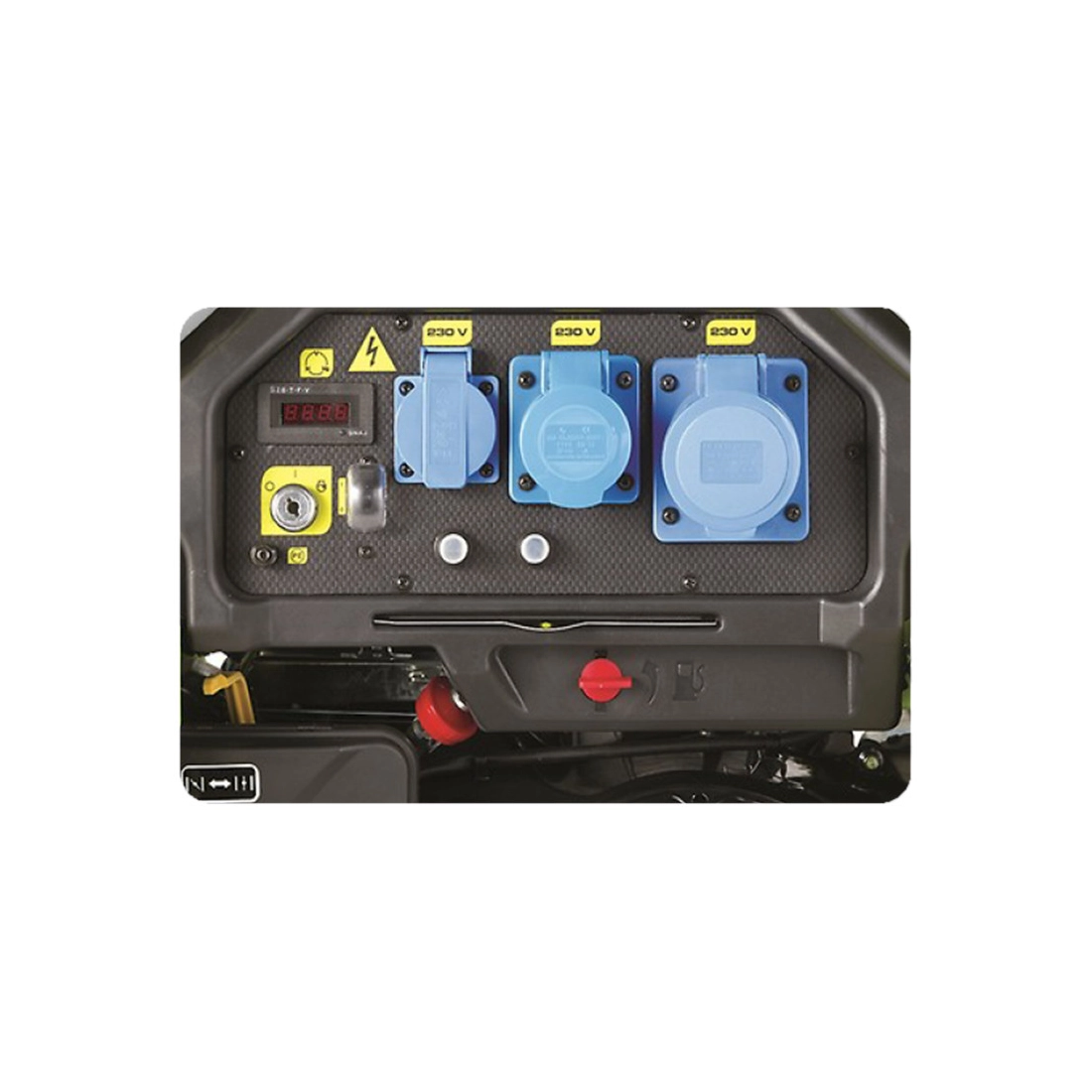

CONTROL PANEL

Controls:
- Start key: OFF - ON - START

Instrumentation:
- Voltmeter
- Ammeter
- Frequency meter
- Fuel level indicator

<pProtections:
- Thermal Protection
- Oil Guard (low oil level)

Sockets
N.1 SCHUKO 230V 16A IP54
N.1 2P+T CEE 230V 16A IP44
N.1 2P+T CEE 230V 32A IP44

Are you looking for a generator with different technical features? HERE you can find the area dedicated to PRAMAC generator or other specialized brands.

Images and technical data are not binding.
