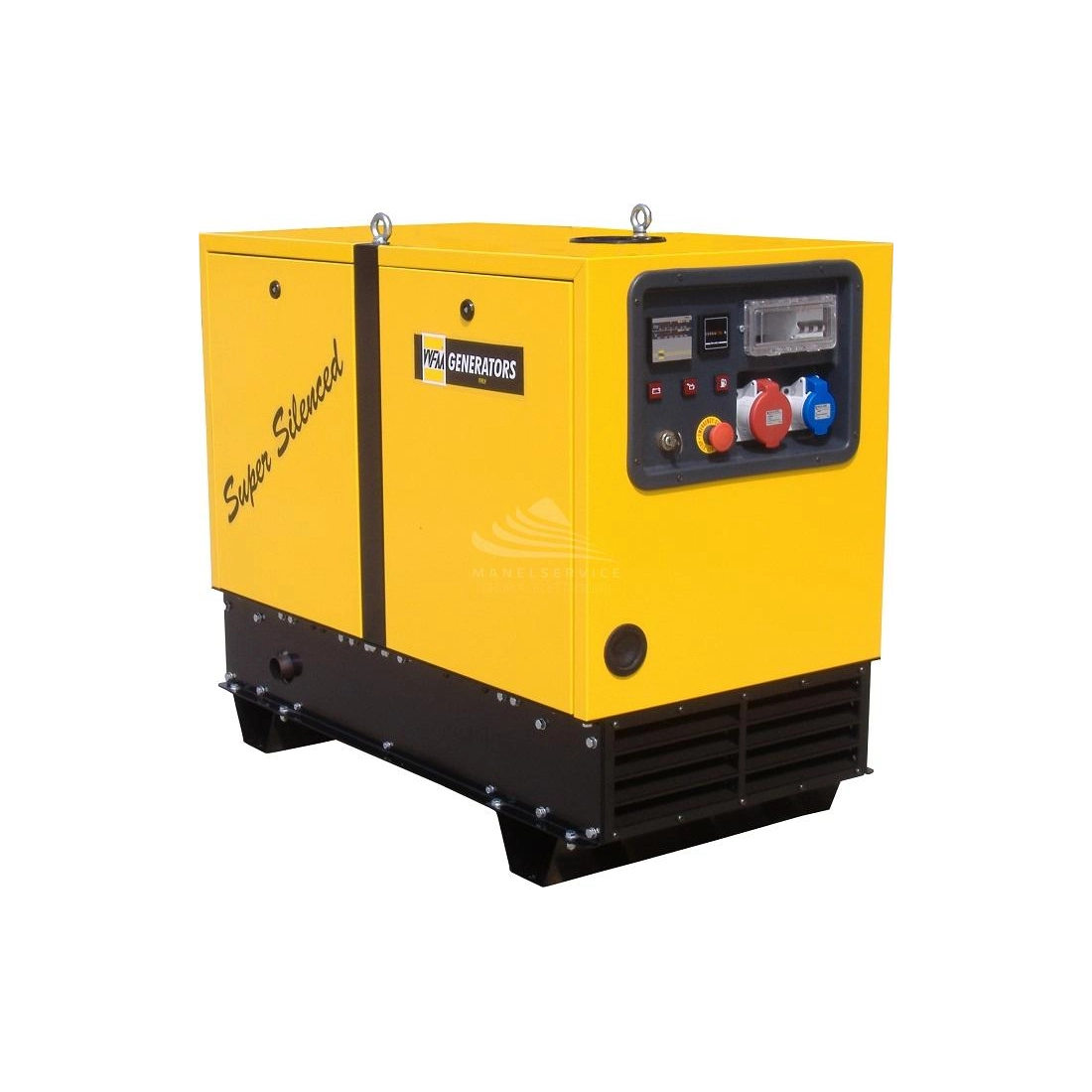

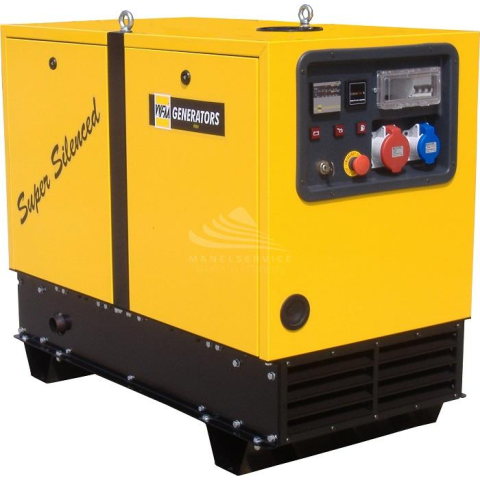

WFM SE12000-MTHE AVR


Phase
Single phase / Three phase
Height (mm)
920
Length (mm)
1070
Starting system
Electric
Width (mm)
560
Engine manufacturer
Honda
Engine
Honda GX690

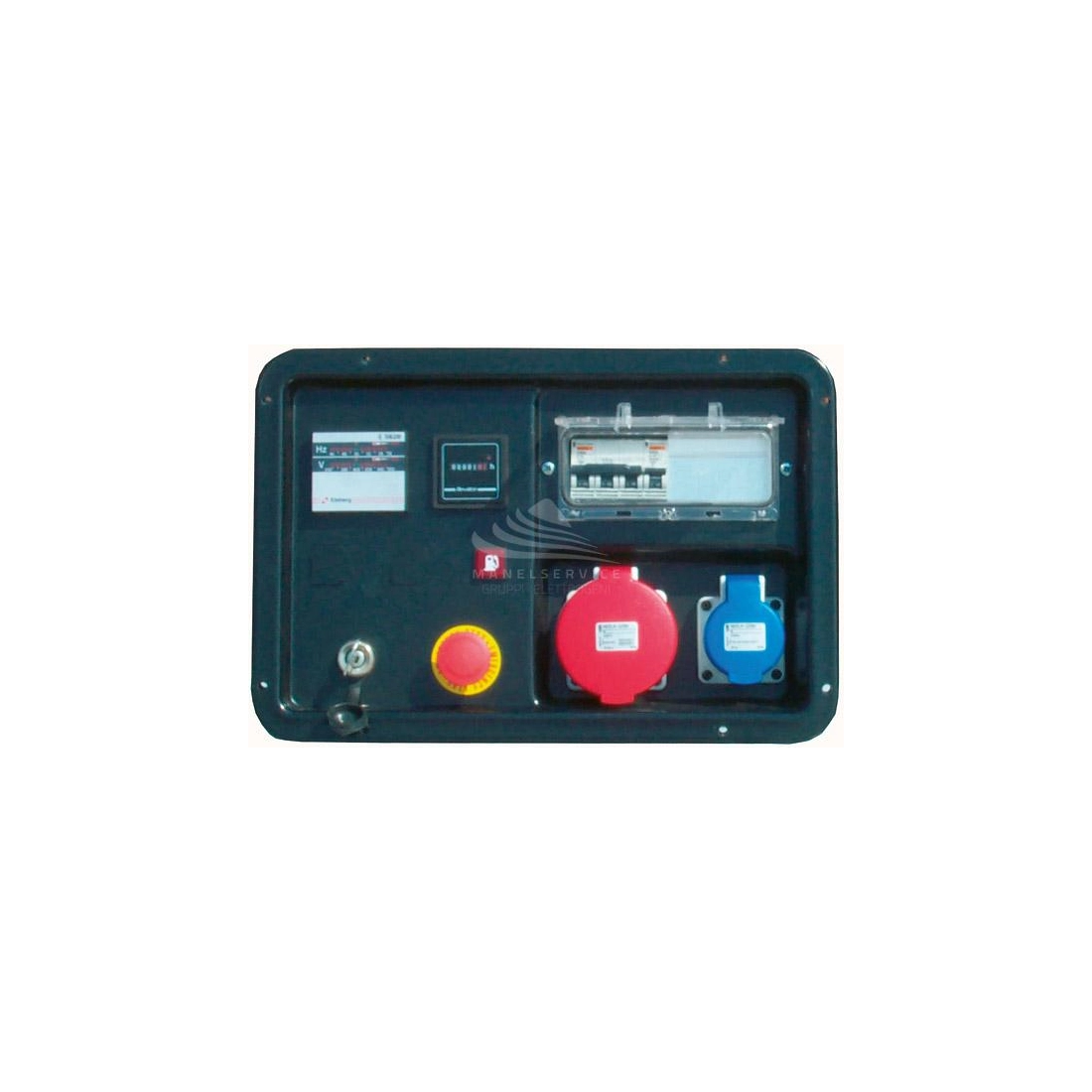

Sockets configuration
1 CEE 5P 400V 16A + 1 CEE 3P 230V 16A
Cooling
Air
Maximum power single phase (KW)
3
Maximum power single phase (KVA)
3.8
Maximum power three phase (KW)
9.2
Maximum power three phase (KVA)
11.5
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Engine capacity (cm³)
690
Number cylinders
2
Oil capacity (L)
1.9
Fuel tank capacity (L)
20
Consumption (L/h)
5.8 at 100% of the load
Running time (h)
3.45 at 100% of the load
Acoustic power
92 dB(A)
Acoustic pressure
67 dB(A)
Dry weight (Kg)
210
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
